Product features
1. The built-in charge is maintenance-free, with a capacity of up to 3500mah and lead acid battery.
2. Ultra-long life battery, over 250 cycles of charging and discharging.

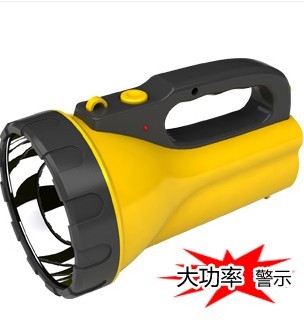

3. Adopt ultra-high brightness, concentrated light, environmental protection, long life, 3-watt LED light, low power consumption and long lighting time.
4. Select a special heat-resistant reflective cup, which has a longer range than ordinary searchlights, with more concentrated light and stronger brightness.
5. This flash warning light (warning light) is applicable to construction site, accident prone area, night or foggy day, etc., which can strengthen the safety warning role.
Product manual
1. When charging, plug the charger into the ac power supply of AC250V/50HZ, and then insert the connector of the charger into the corresponding socket at the probe handle of the searchlight. At this time, the corresponding red indicator light is on, indicating that the battery is in the charging state. When the indicator light on the charger changes from red light to green light, it means the battery capacity has been fully charged. Please disconnect the charger from the searchlight and power supply. It takes 15 hours for the battery to be fully charged.
2. When using, turn the key downward and press softly, the first level of weak light illumination, the second level of strong light illumination, the third level of warning light, the fourth level of light off, and so on.
3. Sufficient electricity, weak light can be used continuously for about 25 hours; Strong light can be used for 10 hours continuously; The warning light can be used continuously for about 45 hours.
Insert the car charger plug into the light jack, and insert the other end into the socket under the probe handle. The charging indicator lights up.
Searchlight should be charged frequently, do not use for a long time. If not used regularly, please recharge for more than 10 hours every three months, otherwise the battery life will be reduced.
Quality assurance
Our products comply with company standards: Q/XYSD 001-2009. The warranty period is 3 months from the date of purchase.
(products damaged or burnt due to improper use are not included in the warranty.)
Matters needing attention
1. To ensure service life, please charge the battery normally once before use.
2. If the light is dim, please recharge in time.
3. Do not directly shoot the eyes, so as not to affect the vision (children should be used under the guidance of adults).
4. Do not use the switch when charging. Please put the switch in the closed state to avoid burning the power supply and internal components.
5,Please keep away from inflammable and explosive goods when charging.Do not charge continuously for more than 24 hours.
6. Do not short circuit the output jack of the charger, otherwise it will cause electric shock, smoke and damage to the charger.

YD - 6100 Specification
A. With more than3500 MAH high performance capacity hermetical rechargeable lead acid Battery.
B. The long life battery is able to be circularly used 250 times between charge and discharge.
C. With 3 w leds of high brightness, long life, more focus beam.
D. using special reflector with high temperature to hold, the more focus beam, further lighting range, more brightness.
The User 's Instruction
A when charging,Push the plug out and.Insert it directly in the socket with ac110-220v /50HZ and the charging indicator lighting.Keep charging about 15 hours.
2. When using, push the switch forward, weak light working, push the switch forward further, strong light working, if stop working and then push the switch backward.
With full charging, the weak light can last for25 HRS, strong light can last for 10 HRS. And the warning light can last for 45hrs
Put the plug of car charger into the car socket, the other end put it into the torchilght; Then the charging indicator works.
The torchight need to be charged every three months if no using for a long time.(10hrs per time)
Quality Guarantee
Our products are meet with the requirements of standard Q/XYSD 001-2009. It is Guaranteed for the quality problem by 3 months from the purchase date Not included.
caution
A: Please full charge the battery for one time before using it to ensure the work life.
B: Please charge the battery immediately when the light is dark.
C, As not to affect the vision,please do not directly clap eyes on the LED lights(Children must be affected by adults).
D. Please turn off the light when charging the battery to avoid any inner parts or the power are burned.
E. both Please put it away from the inflammable and explosive dangerous goods when you charge up the '. Don 't charge the' exceed 15 hours.
