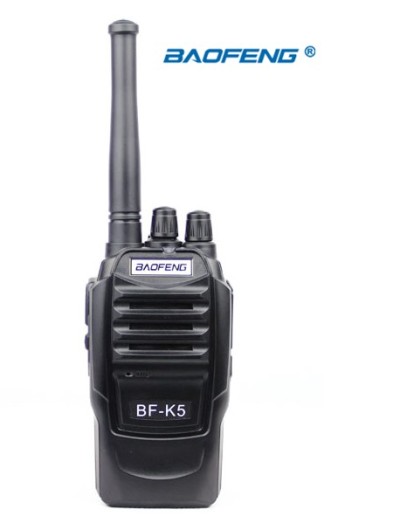

Type of the products: Bao Feng BF-K5
Product short description:
BF-K5 series intercoms baofeng company recently developed professional radio, stable performance, and added new features such as voice compression and expansion, voice encryption makes the model is cost-effective products, the market potential is huge.
If you like, also hesitant what? sure you contact our customer service staff
Main function:
1. PC programming
2. FM radio function
3. Voice report
4. 210 and 50 groups CTCSS DCS codes
5. Power-saving features
6. VOX voice-activated launching
7. BCL busy lock
8. Low battery warning
9. High or low voltage protection
10. Emergency alarm
11. Channel monitoring
12. Time-out timer
13. English switch
14. High and low power switch
15. Voice compression and expansion
16. Scrambling features
17. Scan function
18. All Argle-eliminated
Machine parts
Frequency range400.00-470.00MHz
存储频道 16
Rated voltageDC 7.4 v (battery)
Battery capacityH-1500 mAh
Battery lifeapproximately 8 hours
Frequency stability± 2.5ppm
Operating temperature-20 to + 60 ℃
-Frequencyphase-locked loop frequency synthesizer
Antenna impedance50 ω
Workingwith frequency-simplex, or ISO-frequency Simplex
Overall dimensions 123x60x 36mm (not include antenna
Transmitter
输出功率 ≤5W
Modulation mode (wide/narrow) FM (F3E)
Maximum frequency deviation (wide/narrow)<5KHz(W), <2.5KHz(N)
Spurious emissions≤ 7.5 μ w
Adjacent channel power65dB (w), 55dB (n)
Remnant wave radiation<-60 dB
Audio distortion<5 %
Signal to noise ratio (wide/narrow)-52dB (w), -48dB (n)
Subsonic audio/digital Asia (wide/narrow)
0.7±0.1KHz (W), 0.4±0.1KHz (N)
Modulation sensitivity8-12mV
Emission current1200mA
Receiver
Sensitivity< 0.20 μv (12dB SINAD)
Audio power1 w
Intermodulation interference (wide/narrow)≥ 65dB (w), 55dB (n)
Adjacent channel selectivity (wide/narrow)≥ 65dB (w), 55dB (n)
音频失真 5 %
Receive current≤ 400m
Specifications subject to changes due to technical improvements without prior notice
