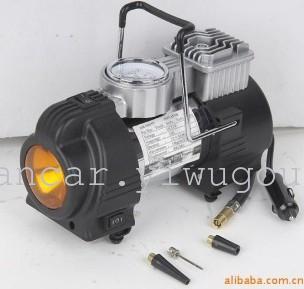

Product name: single cylinder auto metal pump.
Product brand: blue bell.
Product model: ne-616.
Product origin: mainland China.
Product weight: 3KG.
Packing size: 230*160*195mm.
Working voltage: 12V.
Working current: 18A.
Atmospheric pressure: 150PSI.
Power line length: 3M.
Inflatable tube length: 1M.

Product features:
1. The most atmospheric pressure can reach 150PSI.
2. Use the power of the cigarette lighter, quickly give the car and the tire of the motorcycle to inflate.
3. On the highway, in the field or in the morning, when the car tire suddenly leaks, it can give full play to its emergency function.
4. Always prepare one, and put it in the boot of the car without taking up space.
5. It can be used to inflate the leather ball and inflatable ball quickly.
6. There is a pressure display table, which can accurately measure the pressure of the tire.
7. Fully built-in inflatable tube, power cord plug and various special inflatable head.
Notes:
1. Please start the car engine when used to enhance the electronics and extend the battery life of the car.
2. The machine is limited to DC12V15A power supply. If the ac is to be used, the transformer must be added.
3, general automobile tires inflated, about 3 minutes of normal tire pressure, such as began to inflate the instrument pointer rapidly rising to 50-100 psi, said the air is blocked, no air into the tyre, the need to immediately remove the gas nozzle joint, again, otherwise the motor and the instrument is easy to damage.
4. When used, people should not leave, always pay attention to tire pressure, and do not inflate too saturated. (the tire pressure is correct and the tire pressure will be marked on the side of the tire and refer to the vehicle instructions).
5. If the cigarette lighter is not clean or rust does not conduct electricity, or the fuse is burned, the gas pump cannot function. Ensure that the cigarette lighter conducts well and the fuse does not burn. The air pump plug is filled with fuse, if the air pump does not start, please turn on the plug and replace it (the fuse is 15A).
6. In order to ensure good air pump work, do not continuously inflate for more than 10 minutes. If it takes a long time to continuously inflate, it must be open for 10 minutes and then shut down for 10 minutes for cooling! Continue to use, otherwise it will damage the air pump and accessories.
1. Turn the top valve of the rubber hose directly into the tire valve. When the tire is deflated, the air is in circulation.
2. Remove the plug and connect the cigarette lighter.
3. Turn on the motor and begin to inflate.
4. When the gas is inflated, the instrument pointer starts to rise with the pressure, and the large pointer reaches the proper tire pressure of the car (the normal tire pressure is 30 to 40PSI). Turn off the inflator switch and turn out the air nozzle.
Usage:
1. Turn the top valve of the rubber hose directly into the tire valve. When the tire deflates,
The air is in circulation.
2. Remove the plug and connect the cigarette lighter.
3. Turn on the motor and begin to inflate.
4. When inflated, the instrument pointer begins to rise with the pressure, and the large pointer reaches the proper tire pressure of the car.
(normal tire pressure is 30-40 psi), turn off the inflator switch, and turn out the air nozzle.
