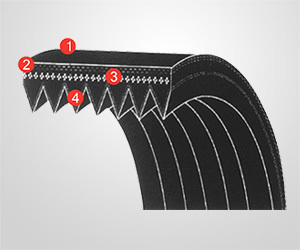

Wedge beltStructure:
|
Serial number
|
The name of the
|
function
|
material
|
|
1
|
The top cloth
|
Protect the inner layer against the tensioned body.
|
Polyester/cotton canvas
|
|
2
|
Buffer rubber
|
Bear and protect the adhesion of the tensile body.
|
CR, EPDM
|
|
3
|
The tensile body
|
The core material that delivers power.
|
Polyester, nylon
|
|
4
|
At the end of the glue
|
Maintain the shape of the tape and improve side pressure performance.
|
CR, EPDM
|
|
Keodol wedgeCharacteristics of the
|
-
The belt is wide and thin with excellent elasticity and flexure performance.
-
The transmission efficiency is high in high speed rotating, reverse flexure, small belt wheel and so on.
-
Use high tension, low elongate core glue, and maintain uniform tension during operation.
-
Excellent heat resistance, oil resistance and abrasion resistance.
-
The running process has less sliding and greater transmission effect.
-
Small noise during operation.
|
|
|
|
model
|
Wedge distance (mm)
|
Wedge Angle (o)
|
With high (mm)
|
Wedge number
|
The length of the
|
|
ph
|
1.6
|
40
|
3
|
3-54
|
540-540.
|
|
pj
|
2.34
|
40
|
4
|
3-36
|
540-540.
|
|
pk
|
3.56
|
40
|
4 to 6
|
3-23
|
600-600.
|
|
pl
|
4.7
|
40
|
10
|
3-16
|
900-900.
|
|
PM -
|
9.4
|
40
|
17
|
3-8 -
|
1500-1500.
|
|
