About Product:A new generation of enhanced resistance to cloth wrapped V belt, is different from ordinary triangle technology, and adopt the trimming v-belt production process, the main body material with excellent properties, oil resistant, heat resistant rubber, skeleton material the use of special polyester hard line production.

Price Negotiable

EXW Price:

The price for this item is to be negotiated.
Please contact supplier for further information.

Item No. : 包布V带

Send Inquiry Chat with supplier

A new item has been added to your Shopping Cart. You now have items in your Shopping Cart.

Continue Shopping View Shopping Cart

Yiwu Grand Auto Parts Co.,Ltd. 14yr.

Contacts:

黄建平Chat

Mobile:

86-008657981069313

E-mail:

info@chngrand.com

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email： yiwubuy@yiwugo.com

Description
Reviews(/5)

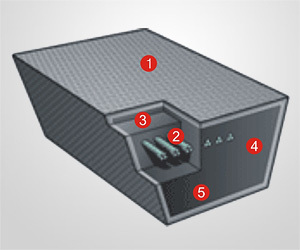

The package of clothstructure

Serial number	The name of the	function	material
1	Outsourcing of cloth	Protect the inner resistance.	Polyester/cotton canvas
2	The tensile body	The core material of power transmission.	Polyester line
3	The top rubber	Maintain the upper end of the tape.	NR, CR, SBR.
4	Buffer rubber	Bear and protect the adhesion of the tensile body.	NR, CR, SBR.
5	At the end of the glue	Maintain the lower end of the tape.	NR, CR, SBR.

The package of clothCharacteristics of the

Wrap cloth to protect inner layer, durable.
Special core adhesive is used to elongate and long life.
Excellent heat resistance, oil resistance and abrasion resistance.
Avoid static electricity and keep the use safe.
The friction coefficient in operation is small, and the transmission effect is large.
Small noise in operation.

Section size of package tape.

model	The width (mm)	With high (mm)	Angle (s)	Production range (LNCH)
M	10	6	40	15-120.
A	13	8	40	18-360.
B	17	11	40	22-550.
C	22	14	40	33-600.
D	32	19	40	80-80.
E	38	23	40	110-110.

Narrow-type package with cross section size.

model	The width (mm)	With high (mm)	Angle (s)	Production range (LNCH)
SPZ (FM)	9.7	8	40	500-500.
spa	12.7	10	40	500-500.
.spb	16.3	13	40	600-600.
SPC	22	18	40	1000-1000.
3 v (n)	9.5	8	40	20-200.
5 v (15 n)	16	13.5	40	50-355.
8 v (n) 25	25	23	40	100-100.
