Use Caution:
1. The working voltage shall not exceed 10% of the rated value; the relative humidity of the air shall not exceed 95%, and there shall be no explosive or corrosive gas.
2. The wiring part should be placed outside the heating layer and insulation layer, and the shell should be effectively grounded; Avoid contact with corrosive, explosive media, moisture; The lead wires should be able to withstand the temperature and heating load of the wiring part for a long time, and the screw connection should avoid excessive force when tightened.
3. Metal casting heaters should be placed in a dry place. If the insulation resistance is lower than 1MΩ due to long-term storage, it can be baked in an oven at about 200 degrees Celsius for 5-6 hours to recover to normal. Alternatively, reduce the voltage and power on to heat until the insulation resistance is restored.
4. Metal casting heaters should be properly positioned and fixed, and the effective heating area must be tightly fitted to the heat-receiving body. It is strictly prohibited to burn empty. If dust or contaminants are found on the surface, they should be cleaned promptly to avoid affecting heat dissipation and shortening service life.
5. The magnesium oxide powder at the outlet end of the electric heating tube should be avoided from contamination and water penetration in the use site to prevent the occurrence of electric leakage accidents.
This product can be customized according to customer requirements, providing drawings, voltage, power, and dimensions.

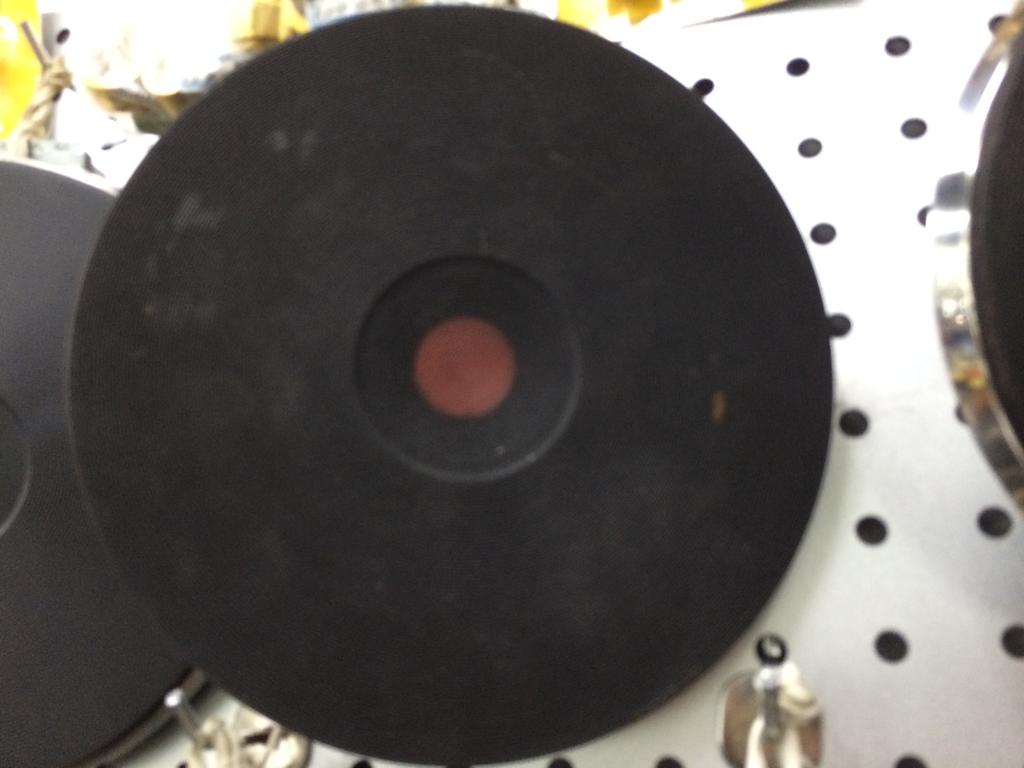

Product Name	Diameter	Voltage	Power
Cast Iron Heating Plate	145mm	220V	1000W
Cast Iron Heating Plate	180mm	220V	1500W
Cast Iron Heating Plate	220mm	220V	2000W
Cast Iron Heating Plate	145mm	240V	1500W
Cast Iron Heating Plate	180mm	240V	2000W
Cast Iron Heating Plate	220mm	240V	2000W
