Aluminum alloy truss: The light weight, strong rigidity; good bearing capacity, large span; flexible connection characteristics of aluminum alloy trusses not only allow them to be used individually, but also allow them to be used in a plug-and-play manner.

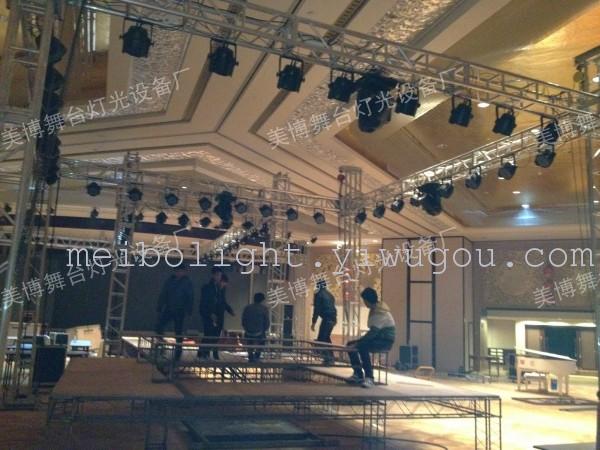

Aluminum frame or panel-to-panel aluminum frames can be assembled into large mobile event spaces. Examples include various large-scale mobile performances, product promotion exhibitions, large-scale tent exhibitions, and temporary lighting and sound equipment stands.

When used, it can be used to carry lighting, sound equipment, and so on; especially when used outdoors, it can be matched with appropriate colors and can also be used with a canopy to build various projects of different areas and different load-bearing capacities.

A frame can not only block the wind and sand, prevent rain and sun, but also is beautiful, practical, and has two benefits at once. We offer a variety of styles and complete specifications and varieties, with competitive prices. We welcome new and old customers to visit, and we can also order according to your requirements.

。
Product Specification Dimensions: 200*200mm 250*250mm 300*300mm 350*350mm 400*400mm 400*500mm 400*600 450*450mm 500*500mm 500*600mm

520*760mm, 760*600mm, 720*900mm, etc., can also be custom-made according to customer requirements. Welcome to choose!


Building a gantry process

The materials required to build a gantry: two sections of aluminum alloy columns, one end of aluminum alloy crossbeam, two square sockets, two crossbars, two hanging cradles, two anti-turntables, two bases, eight diagonal supports, and "

Suspenders, screws, etc.
Materials needed to build a square stage: four sections of aluminum alloy columns, four aluminum alloy cross beams, four square sleeves, four cross bars, four hanging hoists, four anti-turntables, four bases, and eight diagonal supports

Sling, straps, screws, etc.

Method of Building a Gantry:
1. First, connect the crossbeams together, and then connect the columns.
2. Twist the crossbar onto the pillar, and then hang the hoist from above.
3. Fix the anti-head to the base.
4. Put on the square case on the opposite side, and then connect the middle beam and the square case well.
5. Secure the lights or any other necessary equipment to the beam.
6. Connect the aluminum alloy column and the opposite end, then slowly stand up the column, and then fix the opposite end.
Step 7: Connect one end of the hoisting crane to the crossbeam, then pull the crane to slowly lift the crossbeam. When it reaches the predetermined position, secure the crane.
8. Tighten the inclined support, base, and column, and the gantry frame is completed.


Aluminum alloy trusses are convenient to set up, lightweight, and do not rust, making them sturdy and durable. Compared to steel trusses, they have a higher reuse rate, are more beautiful, lighter, and offer a higher level of elegance. Suitable for different settings, both indoors and outdoors.

Aluminum trusses are more durable than iron stage structures, with a service life that is several times longer. They require simple daily maintenance. They are often used for the display of clothing and other merchandise, as well as for the decoration of hotel lobbies, bars, shopping malls, and rooms.

Inner and outer etiquette celebrations, advertising, and small-to-medium-sized mobile performances.

Aluminum alloy truss parameters:

1. Small display stands, lightweight lighting frames:

200mm*200mm/250mm*250mm: 主管25*2，小斜管15*1.5，接口25*20*2目字方通。

300mm*300mm: 主管30*2, 小斜管15*1.5, 接口30*20*2目字方通。



Section Two: Medium-sized Stage Lighting Stands:

300mm*300mm/350mm*350mm: 主管50*2.5，小管20*2.5接口50*25*3目字方通。

400mm*400mm/400mm*450mm：主管50*3，小管25*2，接口50*25*3目字方通。

400mm*600mm：主管50*3，辅管40*2，小管25*2，接口50*25*3目字方通。

Three, large stage lighting rigs:

500mm*600mm：主管50*3，辅管40*2，小管25*2，接口50*25*3目字方通。

520mm*760mm: 主管50*4, 辅管40*3, 小管30*2, 接口50*40*3目字方通

600mm*900mm：主管50*4，辅管40*3，小管30*2，接口50*40*3目字方通。
