Main Technical Parameters

1.Charger

Input Voltage: AC 220V~50Hz

Rated Power: 6W

Output Voltage: DC 6V 0.3A

2.Working temperature range: -10°C to 40°C

3.Surrounding air temperature: less than 90%.

4.Light duration: Bright light for about 3.5 hours, dim light for about 6.8 hours

5.Charging time: approximately 12-16 hours

6.Battery Specification: 4V3AH

7.Luminaire: 4V5W LED

8.Illuminance: Bright light 18000 LUX/Dim light 10000 LUX

9. Shape dimensions: 218X130X130mm

Instructions for Long-term and Correct Use

1.The charger for the LED only accepts input voltage.

AC 220V~50Hz。

2.After each use, if the brightness weakens or the device enters discharge termination protection, it should be charged immediately (for at least 12 hours). It is important to avoid leaving the battery in a depleted state, as this could lead to battery failure.

3.When not in use for a long time, it is necessary to charge the battery once every three months for maintenance, otherwise it will shorten the battery life. If after a normal charge, the discharge time is significantly shortened, then the battery should be replaced.

4.When cleaning the dirt on the shell, please gently wipe away the dirt with a cloth dipped in diluted neutral detergent, and then wipe it with a dry cloth.

Usage Method

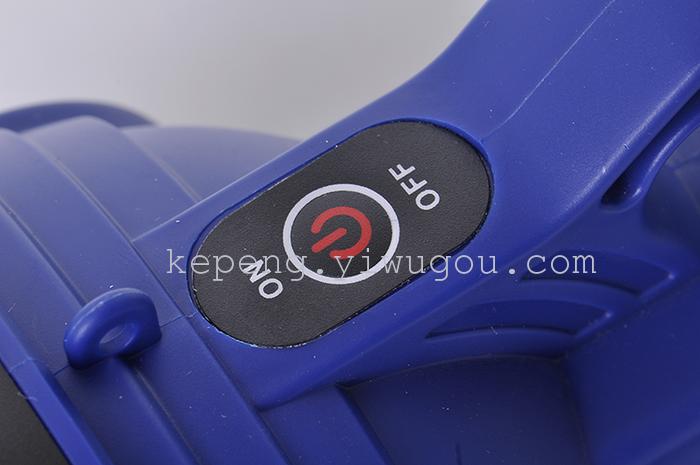

1.Shine: Press the switch once for dim light, press it again for bright light, and the third time to turn off the light. (Long pressing the switch in the bright and dim light states can also turn off the light.)

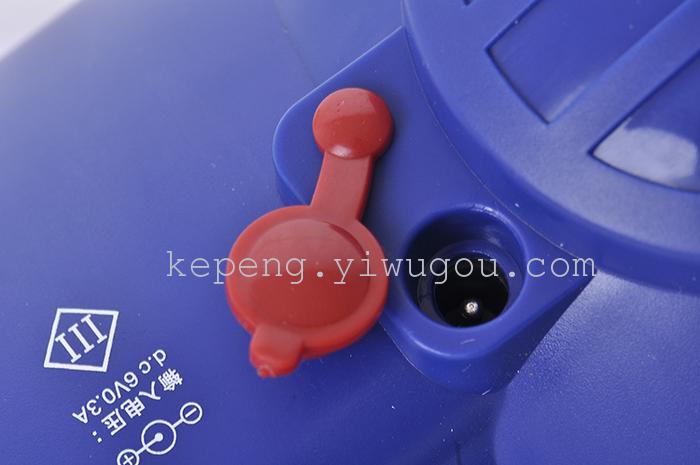

2.Charge: Connect the AC plug of the external power supply to an AC power outlet, and when the charging indicator light is lit, it indicates that the power is on. Then, connect the other end of the DC plug to the charging input port of the searchlight.

Attention:

During the illumination process, if the spotlights suddenly stop working, it indicates that the internal discharge protection circuit has entered the termination voltage protection. In this case, it is necessary to charge the battery as soon as possible.
