Product Introduction

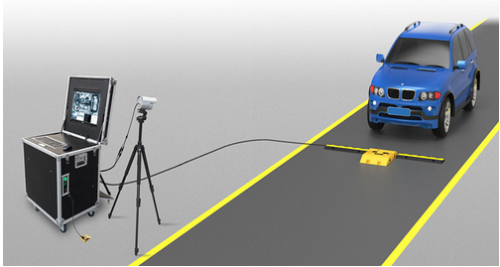

    This product is a vehicle undercarriage security inspection system independently developed by our company. It can detect whether the vehicle undercarriage has been illegally modified, hidden drugs, bombs, and other prohibited items or personnel, and can also check the places that are difficult for the human body to reach. In addition, this product has a high protection level design and can work normally in harsh environments. The product is suitable for security inspection areas such as airports, ports, customs, prisons, military restricted zones, etc. to check the vehicle undercarriage.

Product Features

Image resolution and integrity: Digital line array technology is adopted.2048Pixel resolution, with extremely high image resolution and clarity; one-time scanning imaging, image continuity and integrity.

Portability and ease of installation: The rear-end control equipment consists of a laptop and a lightweight control device, which are housed in a portable equipment case for convenient portability.

High Environmental Adaptability: The Image Detection Components are designed to operate in various environments.IP66High protection level design, waterproof and dustproof.

Performance Indicators

1.Image resolution: 2048Pixel;

2.Maximum Scanning Rate:18kHz"";

3.Size: 550mmX360mmX85mm

4.Detecting vehicle speed:<30km/h"";

5.Field of view: superior to160O

6.Power supply: DC12V 6A

7.Lighting: LED,30WEquivalent to350WHalogen lamp); Life: 50000h

8.Chassis Image Data Interface: Ethernet 100BaseT/1000BaseT

9.Chassis Image Resolution(Vehicle speed30km/htime")The highest resolution is superior to0.5mm/Pixel;

10.Structural Protection Level:IP66

11.Environmental temperature: -10OC ~Plus60OC

12.Weight: About 12 Kg
