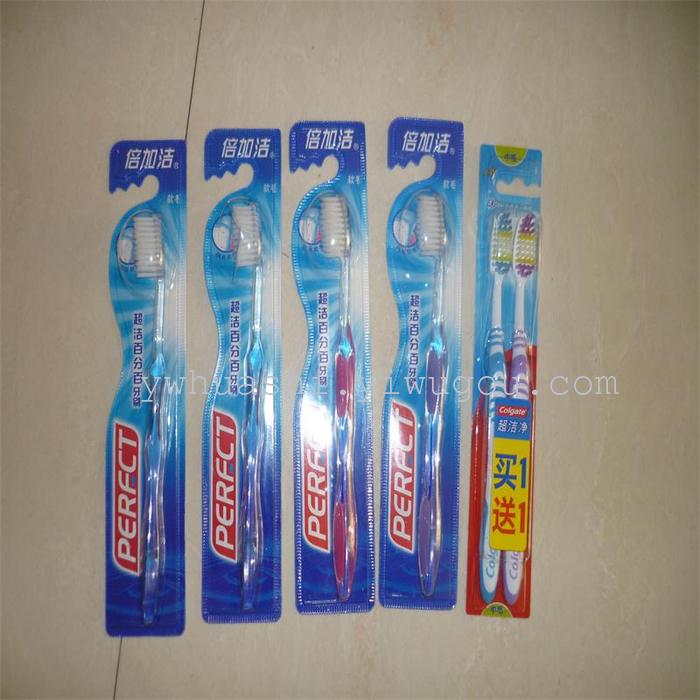

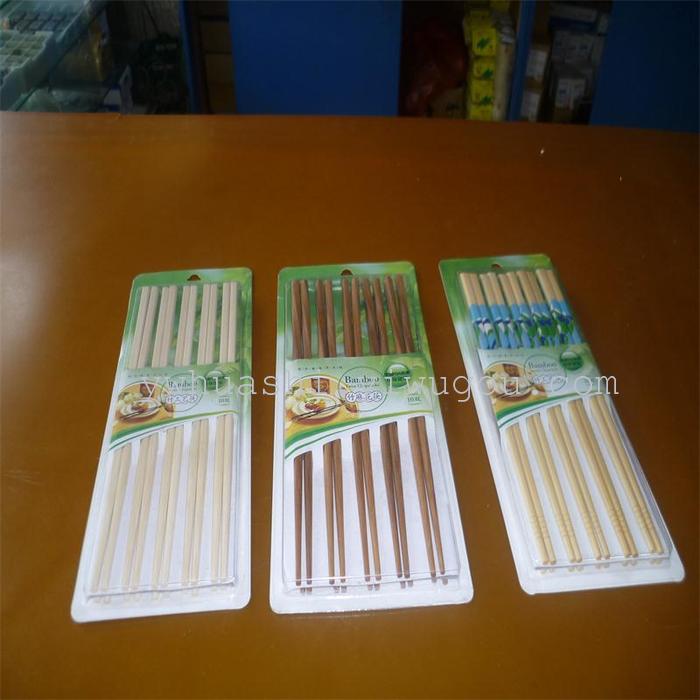

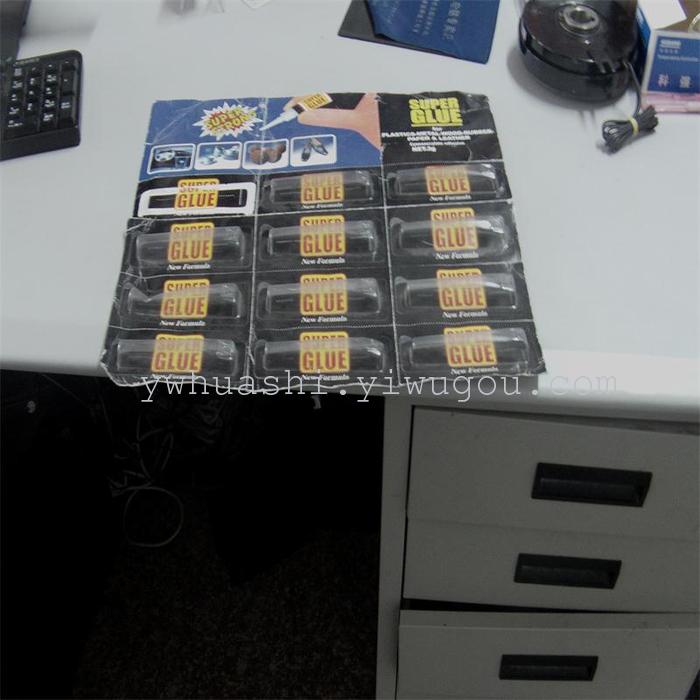

High frequency plastic welding machine (also known as high-frequency machine, high-frequency), is the plastic heat sealing device of choice, it is the use of high frequency electric field inside the plastic molecular oscillations generate heat of fusion of various products. Mainly used in polyvinyl chloride (PVC) plastic welding, welding, stamping, etc. Sucking plastic packaging (including upper and lower double bubble cover reheqie side, bubble cover and cardboard reheqie side,), car interior pieces, and cushion, and trademark, and stationery, and posted paper, and plastic cover, and blow gas toy, and shoes class products, and rain sails, and umbrella, and raincoat, and purses, and brand, and waterbed, and shade Board, and car door, various packaging bags, and mobile soft bags, of hot collection processing, various bump switch of pattern pattern, and letters text of suppressed. Equipped with simple equipment but also for stamping process.
Works of dielectric materials for high frequency electric field under molecular polarization and direction of electric field due to high frequency electric field, change direction at an extremely fast rate, dielectric materials, as a result of dielectric loss and fever.
Characteristics:
a. Output power strong, the frequency of the local oscillator 27.12MHZ or 40.68MHZ, in line with the international standard of industrial band, special electronic circuit controls, improper operation can be avoided, and the fastest time welding products, improving production;
b. High sensitive spark protection device, when the spark produced, can be automatically cut off high frequency circuits, parts and objects damage down, when the current is too high, cut off high pressure ensure oscillation tubes and rectifier

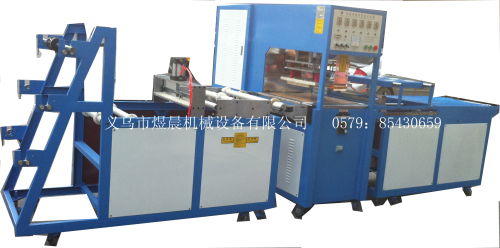

automatic turntable high frequency fusing machine series specifications:
model YC-5KW YC-8KW YC-10KW YC-12KW YC-15KW
high frequency power 5KW, 8KW, 10KW 12KW, 15KW
input power: 8KVA 15KVA 18KVA 20KVA 25KVA
oscillating tube 7T85RB 7T69RB E3069RB 3130RB 8T85RB
pressure 5000kg 10000kg 15000kg 20000kg 25000kg
100mm 100mm 100mm die trip 100mm 100mm
upper electrode size 350*450mm 350*450mm 350*500mm 350*500mm 400*600mm
lower electrode dimension 350*450mm 350*450mm 350*500mm 350*450mm 400*600mm
pressure pneumatic
Silicon rectifier diode
electrode spacing 200mm
power supply voltage 50/60HZ AC380V 3P
welding 0-10s
Capacity <360/1H
frequency 27.12MHZ
< machine-dependent of all specifications can be customized according to user requirements. Due to improvement needs, specifications are subject to change without notice >

Yu Chen machinery equipment co, Yiwu, China commodity city, Yiwu, is a senior enterprise has a strong technical force, with more than 10 years of high frequency packaging, plastic machinery industry experience in manufacturing and services. In Zhejiang area has a high degree of credibility and visibility, obtains the user's consistent high praise. Our company specializes in producing all kinds of name brand vacuum blister forming whole plant equipment, high frequency plastic welding machine 5KW-150KW, fully automatic high frequency (HF), high-frequency synchronous fusing machines, embossing machines, hot water bottles, ice machine, automatic (Taiwan) plastic card printing machines, high frequency mould, closure molds, metal welding machines and other equipment. According to customer's actual needs, to provide you with model selection, installation and commissioning, mold design and manufacture, technical training, after-sale maintenance, repairs and other comprehensive services, life-long follow-up services. The company to "customer needs is our responsibility" for the purpose, we sincerely for your career development to provide the best quality service
