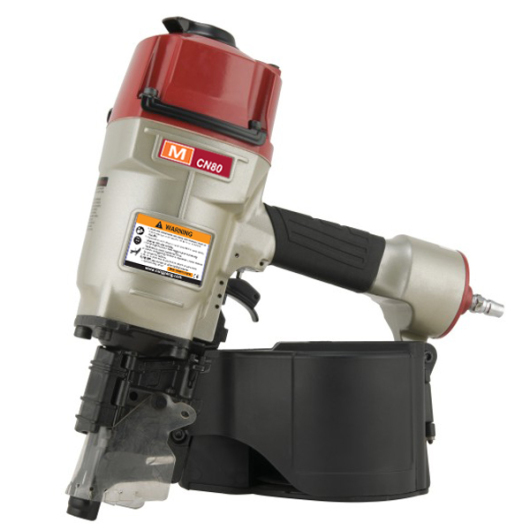

Pneumatic nail gun MCN80

F nail can be up to 5mm, gun volume 362*132*307,mm,4KG

300-350PCs (1.55mm-50mm can be put on)

instructions for use:

1. This staple gun is used for wooden filament plate, old wood, building templates and other wood recycling operations.

2. Before use, drop a little lubricating oil from the pipe joint, and the pipe joint is connected with compressed air.

3. It is suitable for pushing and unloading of a single nail and fixing various connections without or restricting continuous nailing.

Note:

1. Only compressed air can be used, and the working pressure must not exceed 0.8MPa;

2. It is strictly forbidden to use flammable and explosive gases such as oxygen, and it is strictly forbidden to use high-pressure air compressor as the power source;

3. Before use, make sure that the pressure gauge of the air compressor is correct and reliable, so as to avoid damage caused by over-pressure use;

4. Wear goggles and protective gloves when using staple gun to ensure the safety of operators;

5. When nailing, remove the air connector and cut off the air source;

6. It is strictly forbidden to point the gun head to yourself or others to avoid causing harm;

7. During operation, it is strictly prohibited to be close to flammable and explosive products, and do not work in harsh environments such as corrosion, corrosion and dust;

8. Don't knock and touch at will, don't empty the gun at will;

9. If a fault occurs, disconnect the air source immediately, take out all the nails in the clip and repair it.

Quick clear nose.

Model	Dimension	Weight	Required pressyre	Max.pressure	Nail Capacity
MCN80	362*132 * 307mm	4kg	85-115psi (5.8-8bar)	120PSI(8.3bar)	300-350PCs
