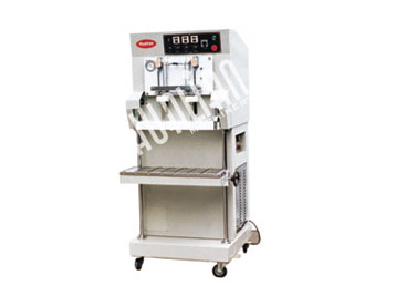

DZQ-600L(/S) Multifunctional Air Extraction Packaging Machine
EXW Price: Min. order:
¥16200.0
≥1/pcs
Send Inquiry Chat with supplier

A new item has been added to your Shopping Cart. You now have items in your Shopping Cart.

Continue Shopping View Shopping Cart

Zhejiang Zhizhen Intelligent Technology Co., Ltd 12yr.

Contacts:YIJUN XUChat

Mobile:86-18167017897

E-mail:1019033835@QQ.COM

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email: yiwubuy@yiwugo.com

  • Description
  • Reviews(/5)
  DZQ series multifunctional air extraction packaging machine


DZQ-600L(/S)

DZQ-600LD(/S)

DZQ-600K(/S)

DZ-800W

Product Description:

DZQ series products all enjoy Chinese patents with our own intellectual property rights:...

DZQ-600L and this series of multi-functional air extraction and air conditioning packaging machine, with complete functions, can be used for Gap single-piece air extraction sealing packaging, and can also be used for packaging filled with inert gas after vacuum pumping.

This machine adopts external pumping double pumping nozzle mechanism, which is not limited by the size of vacuum chamber and has a wide application range. It is suitable for packaging articles with low vacuum requirements and high inflation purity.

If you need to heat seal a thick plastic bag or combination bag, you can use a DZQ-600L/S model with double heating (that is, two-way heating at the mouth of the bag), that is, add (S) at the end of the model specification.

If you need to pack heavy-duty large objects, you can use a DZQ-600L/D model. The head of this model can be raised and lowered at any height within the allowable range, which is suitable for large packages, up to big bag of the ton package.

The maximum sealing length can be increased to 1000mm according to user requirements.

Particles ≥ 100 mesh powder can be equipped with spiral precipitation filter to recover powder and protect vacuum pump.

DZQ-600K is a model with adjustable head, suitable for special needs. Other functions of the machine are the same as those of DZQ-600L.


Technical parameters


:



DZQ-600L(/S)

DZQ-600LD(/S)

DZQ-600K(/S)

DZ-800W

power supply voltage (V/Hz)

AC 380/50 220/50

AC 220/50 110/60

Heat sealing power (W)

600(1000)

600

Vacuum pump motor power (W)

900

Air compressor power (W)

1100

-

Sealing length (mm)

600 700 800 900 1000

800(900 1000)

Sealing width (mm)

10

Distance from sealing center to ground (mm)

1250

900-1500

1250

-

Tilting angle of heat seal head (°)

-

90

-

Vacuum pump exhaust volume (m3/h)

20

Film thickness (single layer) (mm)

≤ 0.18

Overall dimension (L × W × H) (mm)

800 × 900 × 1900

1125 × 1075 × 2150

960 × 940 × 1800

920 × 1100 × 1200

Net Weight (Kg)

255

285

230

95
