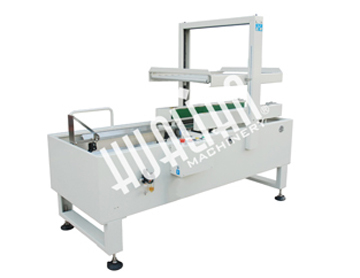

DZF series

semi-Automatic bottom-folding sealing machine

DZF-5050

DZF-5050A

Product Description:

DZF series semi-automatic bottom-folding sealing machine uses manual opening of carton embryo, automatic folding bottom cover and back cover, which can be used together with automatic production line.

DZF-A series semi-automatic bottom-folding sealing machine manually open the carton embryo, automatically Fold the bottom cover, and send it to the box sealing machine for upper and lower sealing after manual packing, which can be used together with the automatic production line.

Process Diagram:

technical parameters::

	DZF-5050	DZF-5050A
power supply voltage (V/Hz)	AC 220/50
Power (W)	180
Air source pressure (Mpa)	0.5~0.6
Sealing tape speed (m/min)	22
Minimum sealing size (L×W×H) (mm)	200 × 160 × 110
Maximum sealing size (L×W×H) (mm)	600 × 500 × 500
Applicable tape	BOPP, PVC, Kraft paper tape
Sealing tape width (mm)	48, 60, and 76 (optional)
Dimensions (L×W×H) (mm)	2000 × 860 × 1700
Net Weight (kg)	280	290
