The latest model from 2016: a computer-phone dual-purpose endoscope, which does not require the same conversion cable as before, making it much more convenient. The conversion connectors are also easier to store. This Android endoscope is a new type of electronic product. The advantages of this product are: it is small and light, with a front camera shell diameter of 5mm. It captures images and stores them directly in the phone for photography. It can also record videos, documenting the entire process of the inspection, which is convenient for subsequent observation and analysis. This product is equipped with 6 high-brightness LED lights that can be turned on or off without affecting the normal operation of the endoscope.

Product Introduction:

Suitable for measuring pipes, equipment, installation equipment, underwater viewing, parts assembly, construction sites, workshops, laboratories, education, wildlife monitoring, car maintenance and repair, difficult to reach areas, 6pcs LED lights can reach most areas, extend your hand and eyes. The appearance is beautiful and convenient to operate, the light is on or off.

Model: 2-in-1 Endoscope

Sensor Size: 1/9 inch

Viewing angle: 67 degrees

Automatic Exposure

Operating temperature: 0°C to 80°C

Through a USB 5V DC power supply

Supported Computers: All Windows-based computers

System image format: JPEG

Video format AVI

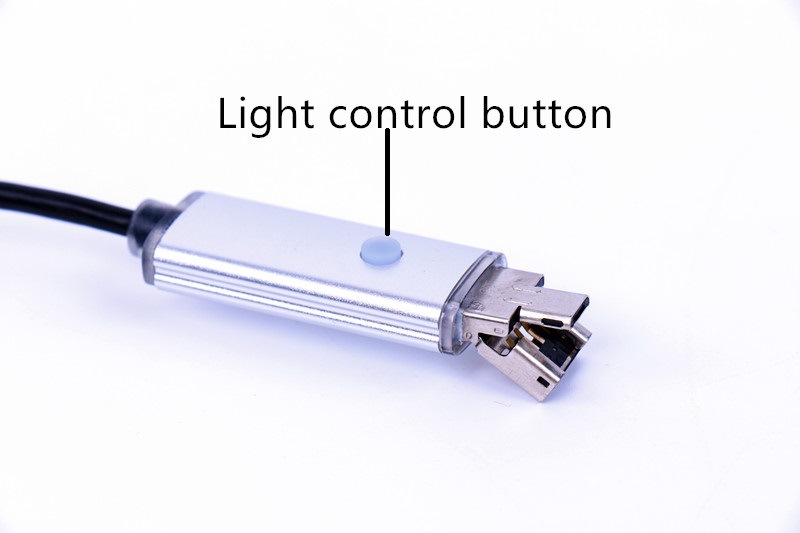

1: Diameter 5mm, 6 LED lights adjustable (can be turned on or off)

2: Length options available

3: Waterproof Level: IP67 (Certified by CE, FCC, RoHS in Europe and America)

4: High-definition COM camera

Resolution: 640*480

6: Android Micro-USB interface

Frame rate: 30 frames per second

This product is suitable for close-range use, with the best focal length being:3-10cm most clearIt is not suitable for use as a surveillance device.

*. The product is a 5mm body, and after software installation, you can use it by plugging it into your phone.

*. The software has no ads, does not require data usage, and displays the software full-screen.

*. Can be used to take photos, record videos, and make audio recordings on a mobile phone.

*. The images and videos taken can be directly previewed in the software's window and then accessed in the album for viewing.

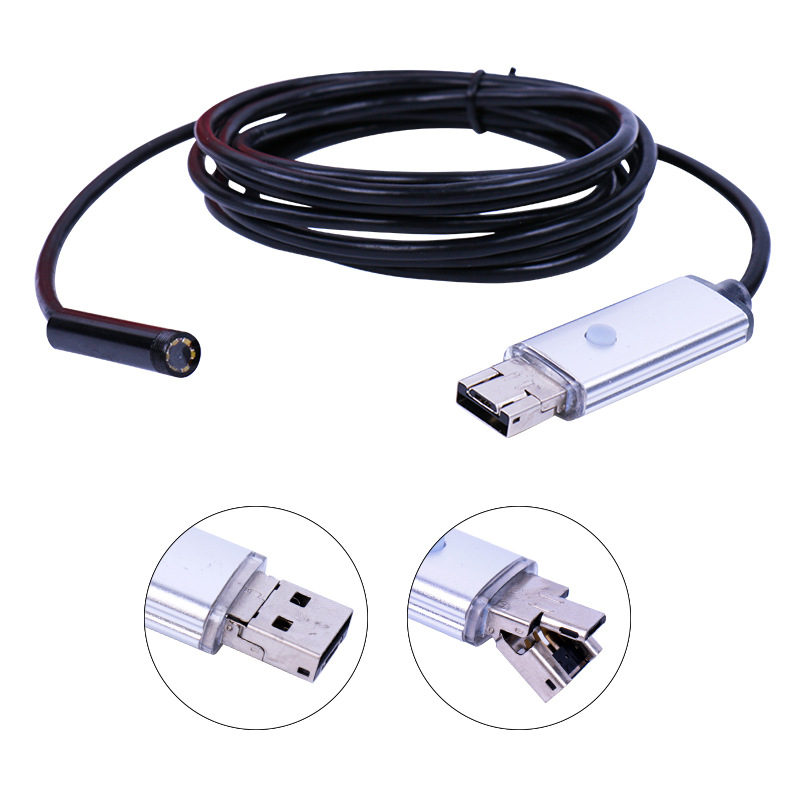

Directly plug in your phone, no need for conversion connectors or cables, the most convenient one to use!

Latest Android and PC dual-mode

Supported Model:

Supports Android smartphones with OTG and UVC functionality.

How do you connect your Android phone?

1) Scan the QR code of the mobile phone APP to download a Camerafi.

2) Download applications directly from the link on the phone:

http://www.zcfkj.com/apk/Endoscope2.apk

How to connect your computer

1) Scan the QR code for the PC driver and download the APP link, link to the download:

http://www.zcfkj.com/rar/ViewPlayCap.rar


2) Choose viewplaycap and install the setup.exe on your computer.

3) Connect the USB 2 adapter to this device, and plug the adapter into your computer.

4) Open viewplaycap, and then select the USB 2 camera device.

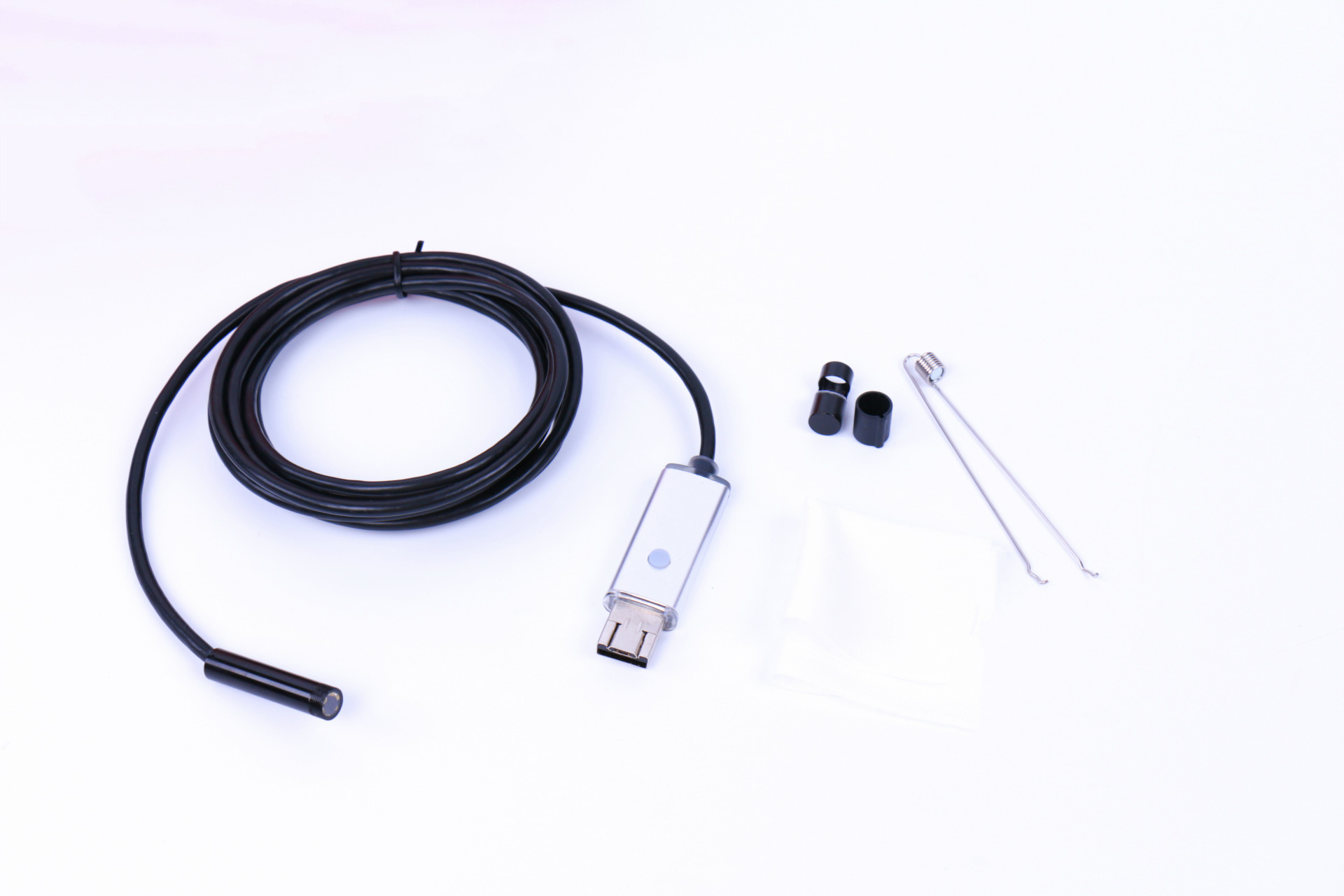

The meal package includes:

1 * Dual-purpose Endoscope

1 * small hook

1 * magnet

1 * Elegant Dust-Free Cloth

1 *侧镜

1 * Manual
