Car Fragrance Humidifier User Manual
Thank you for purchasing the car air freshener humidifier! In order for you to fully utilize the product's performance, please read this manual carefully before use.

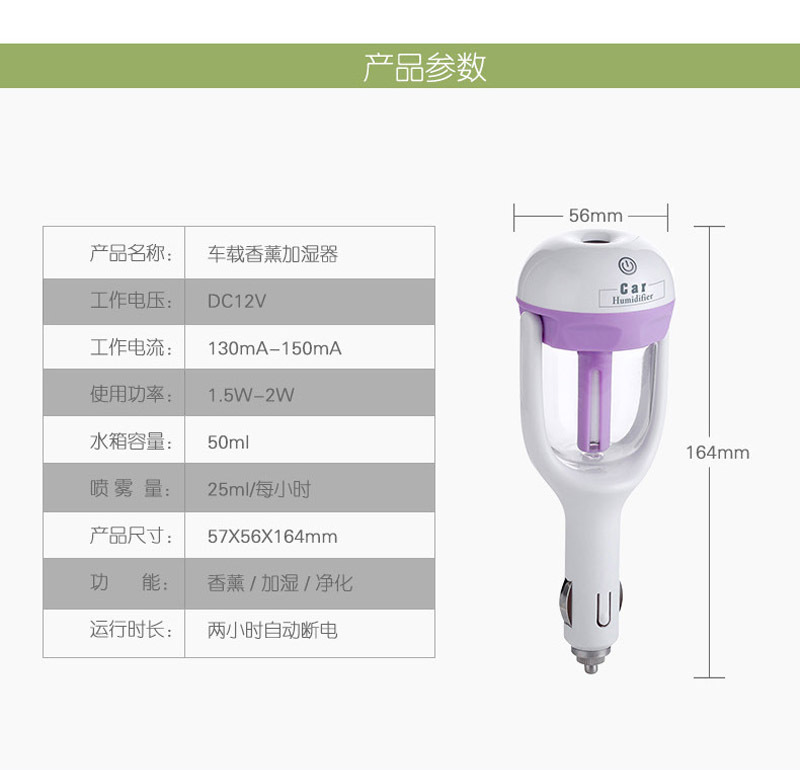

Product Parameters;
Working Voltage: DC12V
Working Current: 130mA-150mA
Power Usage: 1.5w-2w
Tank capacity: 50ML
Spray two: 25ML/hour
Product size: 57MM*56MM*164MM (length, width, height)
Product Configuration:
One host machine, one sponge stick (spare parts), one instruction manual.
Usage Method:
1. Turn the product tank counterclockwise to open it, measure an appropriate amount of clean water into the tank using a measuring cup, and then tighten the product tank clockwise.
2. Insert the end of the strong product with a car charger into the car's ashtray socket, and the indicator light turns red. The product enters the standby state.
3. Touch the touch key with your finger, and the indicator light will light up together, indicating that the product has entered the aromatherapy mode (to use the aromatherapy mode, add 2-3 drops of aromatherapy oil into the water).
5. Touch the touch key three times, and the indicator light turns red. The product enters the shutdown state.
Instructions:

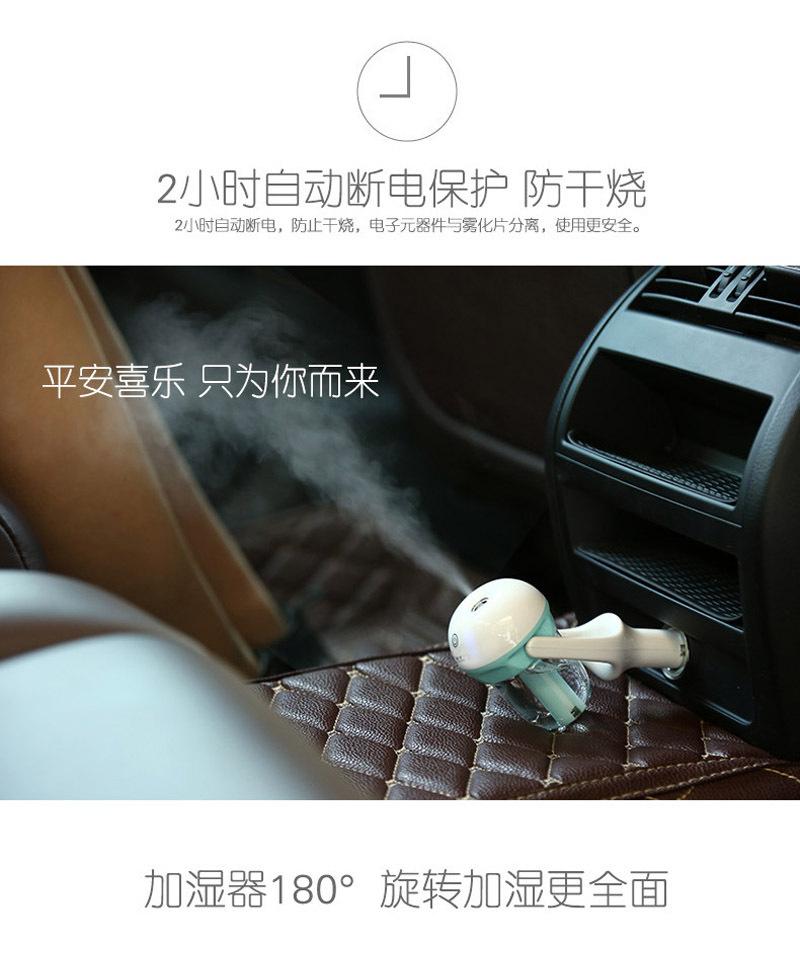

1. The product is equipped with an automatic power-off protection function. When the continuous spraying lasts for 2 hours, the product will automatically turn off to protect itself. If you need to continue using the spray, please add water and press the switch again.
2. It is recommended to use pure water. If the mist becomes smaller when spraying, please replace the sponge rod and regularly clean the water scale on the surface of the atomization with cotton swabs soaked in alcohol. Note that when cleaning, do not apply too much force to avoid damaging the atomization film.
3. Suggest adding water-soluble fragrance water and not adding oil-based fragrance oil.
Notes:
1. This product can only be used when the car engine is running.
2. The product is prohibited from use under conditions of water shortage.
The appropriate temperature for use is 0-45℃.
4. Please avoid touching the product with children.
5. When the product is not in use, make sure to unplug the plug, drain all water, and store it in a dry place.

Material: ABS+PP+Electronic Components

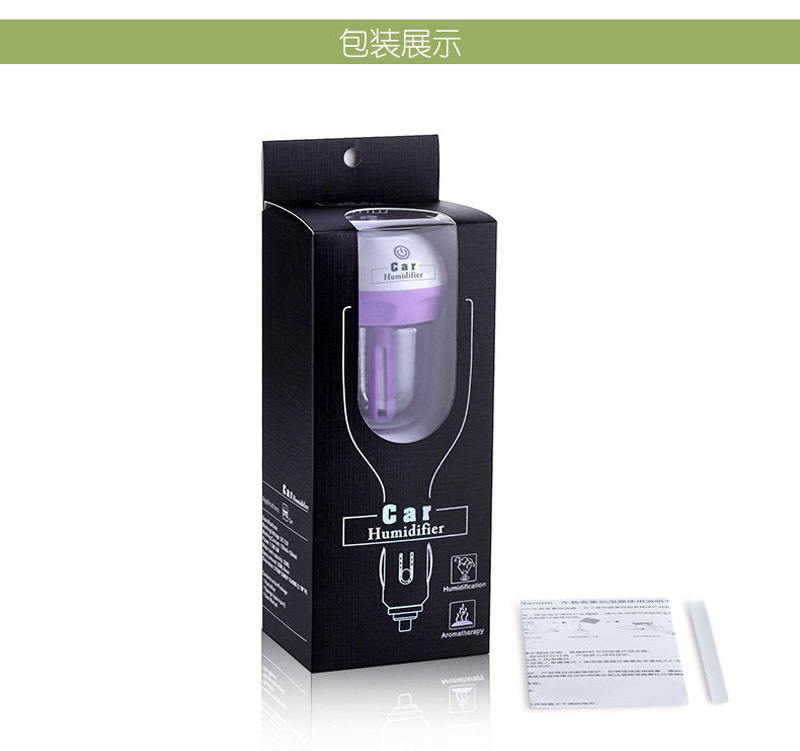

Outer Packaging: Color Box + Blister Pack
Packing Quantity: 100PCS
Product size: 57×56×164CM
Product packaging: 6.5×8×18CM
Crate Size: 66.5×38.5×42.5CM
Crate volume 0.109m3
Weight per unit: 128G
Gross weight of the whole box: 13.8KG

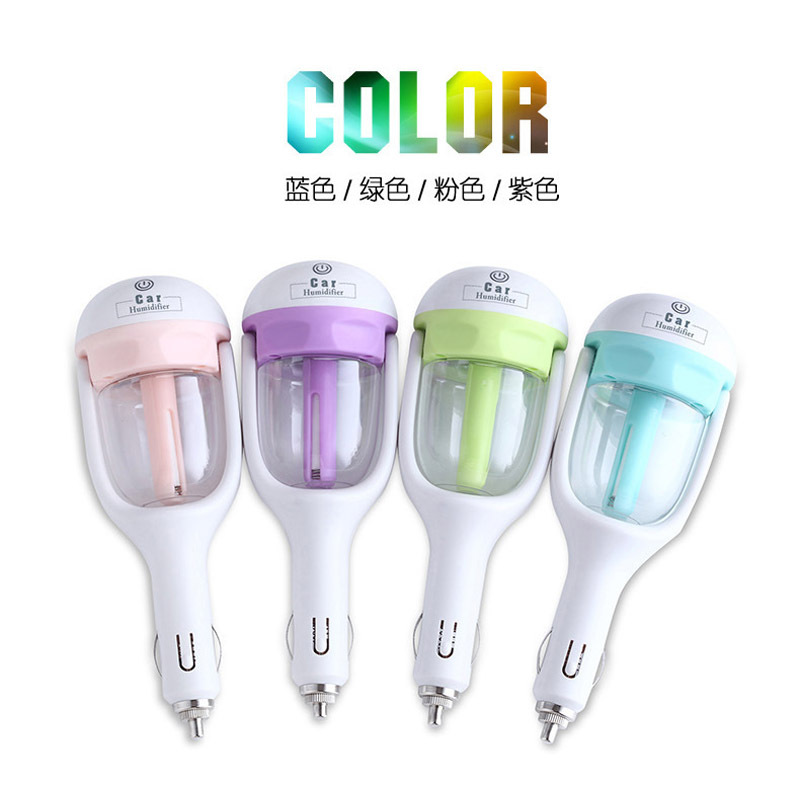

Style/Color: Blue/Green/Pink/Purple
