Manufacturer Direct Sales, Trade Neutral English Packaging, English Instruction Manual, Customizable, Hotline: 13735758480
The weight of the single set including the color box is 580 grams.



Feature:

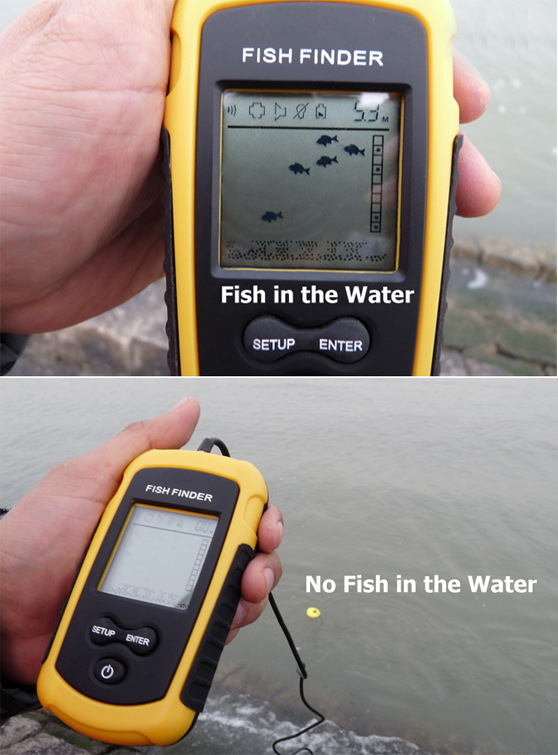

1. Detect and display grass, short & tall weeds, sand, and rocks on seabed
2. Find the approximate location of the fish and the depth of the water

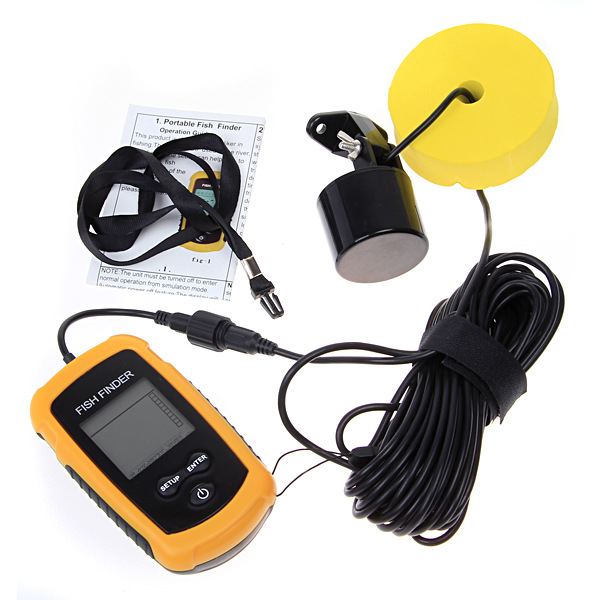

3. 7.5米电缆、45度波束角的圆形传感器传感器
4. 带有鱼深度尺和可听鱼警报
5. User selectable meter or feet readings
6. Depth readout range from 0.7 meters to 100 meters
7. Display bottom rock or grass
8. 可移动浮球
Specification:
Display : TN/ANTI-UV LCD with LED back-lighting
Depth range :0.7m to 100m (2ft to 328ft)
Sensor Beam Angle :45 degrees
Operating temperature : -20 to 70 (-4F to 158F)
Powered by : 4 x AAA batteries (No Battery .Please Note)
Selectable between meter or feet readings
Can mount the sonar with the following methods
A. Attach it to the boat hull
B. Use a float on the cable to mount the sonar inside the water.
C. 将其固定在杆上,并将其推入水中理想的位置。
D. Cut a hole on the ice surface and place the sonar under the water
Display the nature or circumstance of the bottom of the sea (i.e. grass, rock and sand)
Dimension: 120*65*30mm
Net weight: 173g
Package weight: 580g
Package size: 260*175*65mm
