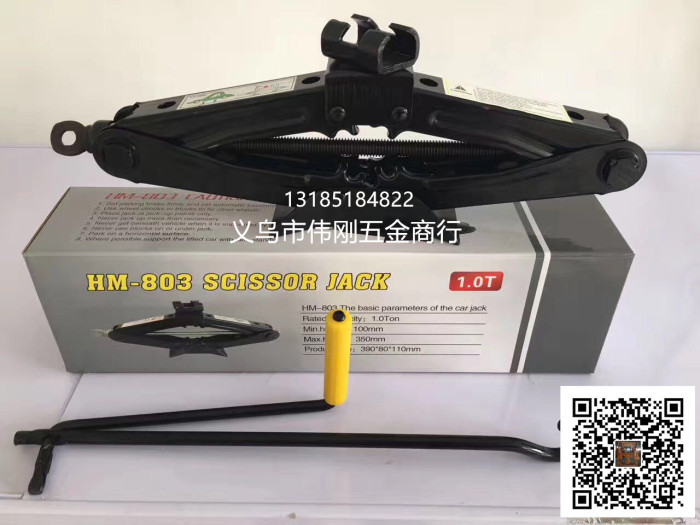

hand jack jack scissor jack car jack 1t

Clip-type jack

Specification: 0.5 tons

1.0 tons

1.5 tons

2.0 tons

Introduction

English name: scissor jacks

Scissor jacks, also known as support jacks, are lightweight and quick to use. They are standard equipment for major domestic automobile factories. Each type operates based on a different principle. They consist of an upper support rod and a lower support rod made of metal sheets. The cross-section of the upper support rod and the lower support rod at the teeth and surrounding areas is a rectangular shape with one side open; the metal plates on both sides of the opening bend inward. The teeth on the upper and lower support rods are formed from the bent metal plates at the open sides.Tooth widthGreater than the thickness of the metal plate.

Structural Composition

A type of shear jack, consisting of a base, a pair of lower support arms, a pair of upper support arms, and a saddle.Planar Bearing, nuts, pivot base,ShaftComposed of and丝杆, the inner rotation of the supporting arm pair isStrengthen the muscles, its ends become gears that mesh with each other, and the edges of a pair of lower support arms are flared into reinforcing ribs, also with ends that become gears that mesh. This utility model offers advantages such as a shorter overall shape, lower weight, greater load-bearing capacity, and strong versatility.
