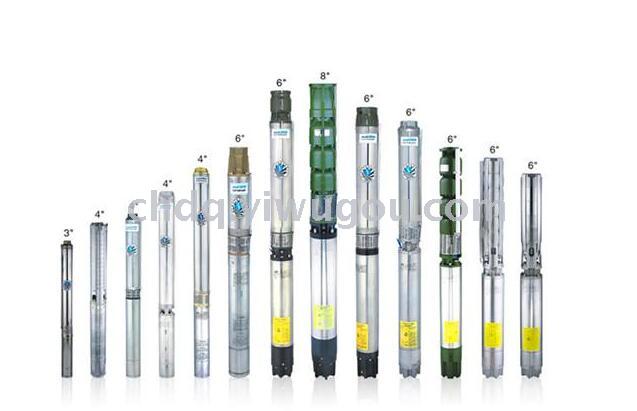

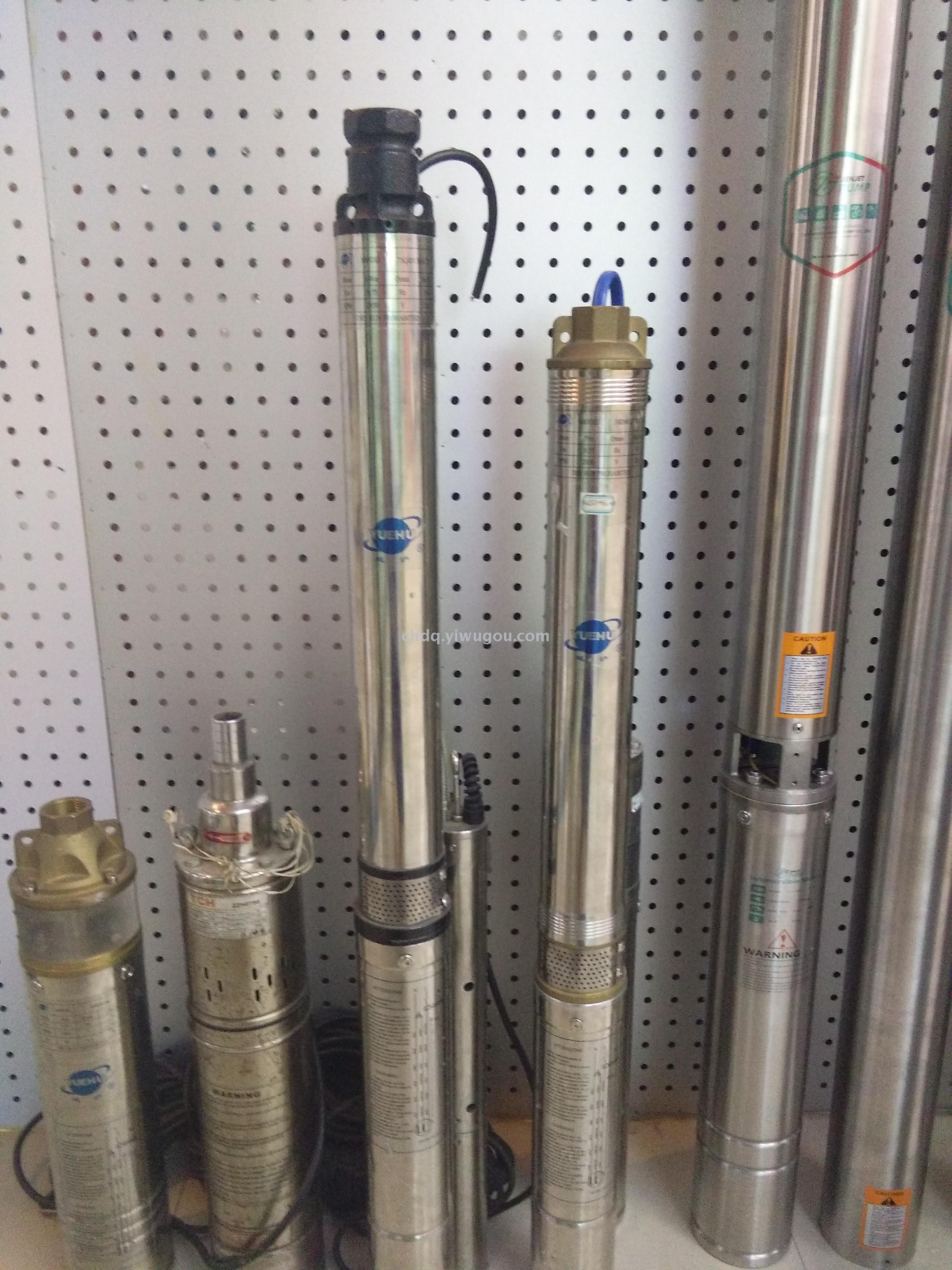

Usage and Features: nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbspnbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbsp nbspThe QJD and QJ series electric pumps feature a seamless stainless steel and chrome-plated seamless steel pipe double-layer material for their housings. They are composed of multiple stages of pumps, motors, inlet chambers, and sealing components. The multiple-stage pump parts are imported from Italy, and the motor is a specially configured motor by our company. They employ a dual-end mechanical seal. The three-phase motors are oil-flush types, featuring excellent materials, low noise, rational structure, and fine craftsmanship. Their characteristics include: there is no lower limit for the lift, and they can operate within the range of the maximum lift. They offer high lift, high efficiency, and a wide range of high-efficiency areas, which are ten to several dozen times that of ordinary screw electric pumps. Therefore, they are widely used for long-distance water irrigation.
Usage Conditions and Precautions:
1. The medium temperature does not exceed +20 degrees Celsius.
2. The pH value of the medium is between 6.5 and 8.5.
3、Water solid content does not exceed 0.01 (by weight ratio);
4. The power frequency is 50Hz, and the voltage is single-phase 220V and three-phase 380V. The voltage fluctuation range is 0.9-1.1 times the rated value; 5. The depth of submergence is no more than 15m, but the shallowest is not less than 0.5m
|
Model
|
KW
|
HP
|
V
|
Length/mm
|
HEAD/M
|
L/Mmin
|
|
100QJD2-40/6
|
0.37
|
0.5
|
220V-240V
|
739
|
30
|
33
|
|
100QJD2-40/8
|
0.55
|
0.75
|
220V-240V
|
806
|
40
|
33
|
|
100QDJ2-50/10
|
0.75
|
1
|
220V-240V
|
878
|
50
|
33
|
|
100QDJ2-60/12
|
0.75
|
1
|
220V-240V
|
934
|
60
|
33
|
|
100QDJ2-70/16
|
1
|
1.5
|
220V-240V
|
1068
|
80
|
33
|
|
100QDJ2-80/20
|
1.5
|
2
|
220V-240V
|
1243
|
110
|
33
|
|
100QDJ2-100/26
|
2.2
|
3
|
220V-240V
|
1443
|
150
|
33
|
|
100QDJ2-200/32
|
3
|
4
|
220V-240V
|
1522
|
200
|
33
|
|
100QJD2-260-42
|
4
|
5.5
|
380V-415V
|
|
260
|
33
|
|
100QJD2-330-54
|
5.5
|
7.5
|
380V-415V
|
|
330
|
33
|
|
100QJD10-124-27
|
7.5
|
10
|
380V-415V
|
|
105
|
165
|
