Measurement Range:

•   pH : 0.00～14.00 pH
•   ℃ : -50℃～70℃ (-58℉～158℉)
•  EC: 0.00～19.99EC
•  CF: 0.0～199CF
•  TDS: 10～19990ppm
•  ORP: 1 to 1999 mV Only PH-027 has ORP detection, PH-026 does not have this function

Resolution:

•  PH : 0.01PH
•   ℃ : 0.1℃ (0.2℉)
•  EC : 0.01EC
•  CF : 0.1CF
•  TDS: 10 parts per million
•  MV: Only the PH-027 model has ORP detection, the PH-026 does not have this function.

• Accuracy:

•  PH : ±0.1 PH
•   ℃ : 1.0℃
•  "EC/CF/TDS: ±2% F.S
• MV: ±0.1%F·S ±1 digit Only PH-027 has ORP detection, and the PH-026 does not have this function.
• Automatic Temperature Compensation: ℃～50℃
• Working temperature: 0°C～50°C
• Working Voltage: DC6V or 4X1.5V (AG13)
• Dimensions: 155mm×86mm×22mm
• Net weight: about 1 kilogram

Features:

• Brand New in Box, Ready to Be Operated Upon Arrival.
• Six-in-one Meter: EC, CF, ℃, °F, TDS, pH
• Easy Calibration of pH and TDS with just a Mini-screwdriver
• Automatic Temperature Compensation (without this, pH reading will differ as the temperature varies)
• Large, Triple Level Display
• Caps on Both Sides for Storage and Protection of Electrodes
• Suction Cups to Attach the Electrodes onto the Inwall of the Vessel, Tank or Reservoir etc.
• Silicone Skin Case Could Protect the Meter from scratches
• CE Certified to Offer Safer and Precise Measurement

Specification:

• Operating Temp: 0°C ~ 50°C (32°F ~ 122°F)
• Automatic Temp. Compensation: 0°C ~ 50°C (32°F ~ 122°F)
• Dimension: 6" x 3 3/8" x 7/8" (155 x 86 x 22mm)
• Weight: approx. 223g

Package:

• 1 x Six-in-one Meter
• 2 x Probes
• 1 x AC-DC Adaptor
• 2 x Suction Cups
• 1 x Mini Screwdriver
• 1 x Silicone Skin Case

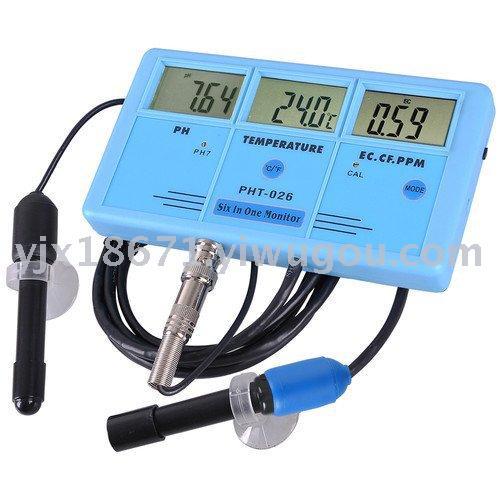

• Product Description:
  * Three large screens display simultaneously, capable of measuring the pH, temperature, EC, CF, and TDS of the tested solution at the same time, with comprehensive functions and high precision.
  Wall-mounted design for easy installation, operation, and maintenance.
  * Built-in rechargeable battery, can be used even after power outage.
  * Equipped with BNC standard sockets, convenient for replacing electrodes in various places around the world.
  The instrument is equipped with a silicone protective cover, which is waterproof and dustproof (waterproof rating IP55).
  * Power adapter can be configured according to customer requirements.
  *Specialized luggage case with built-in instruments, electrodes, and all accessories, convenient to use, a favorite product of professionals.

  Steps
  1. Remove the electrode protection cover, and connect the pH electrode and temperature electrode to the corresponding electrode socket.
  2. First, clean the electrodes with distilled water and dry them with filter paper to remove any water that may be attached to the electrodes.
  3. Turn on/off the power switch to turn on the device.
  4. Insert the pH electrode, temperature electrode, and conductivity electrode into the solution to be measured, gently stir, and wait for the value to stabilize before reading the display.
  5. After use, clean the electrodes, turn off the device by pressing the ON/OFF switch, and cover the electrodes with the protective cover.
  pH Calibration
  1. Immerse the pH electrode in a mixture of phosphate buffer solution with a pH of 6.86 (at a temperature of 25°C), gently shake the electrode.
  Adjust the pH7 potentiometer with a small screwdriver until the display value matches the pH value of the standard buffer solution at ambient temperature.
  3. Clean the electrode, then immerse the pH electrode in a pH 4.01 potassium phosphate buffer solution or a pH 9.18 borax standard buffer solution, gently shake the electrode.
  4. The displayed value should be within the allowed error range compared to the pH value of the buffer solution.
  EC、CF、ppm Calibration
  1. Press the MODE button to select the "EC" mode, insert the instrument conductivity electrode into the 12880 μs/cm (12.88 EC) standard buffer solution, and gently shake it.
  2. Wait for the value to stabilize, adjust the CAL calibration knob with a small screwdriver until the display value is 12.88EC, and then clean the electrode with distilled water and dry it with filter paper.
  3. Insert the instrument into the 1413 μs/cm (1.41EC) standard solution, and the display value should be within the allowed error range compared to the standard solution value.
  Temperature Calibration
  1. The instrument has been calibrated before leaving the factory, and generally does not need to be calibrated. If the measurement result deviates significantly, the instrument can be calibrated. During calibration, place the temperature sensor in a solution with a standard temperature of 25°C, adjust the CAL calibration knob with a small screwdriver, and make the instrument display value conform to the standard value.
  In the following circumstances, the instrument must be recalibrated.
  Replace the new electrode
  After calibration, it has been used (or placed) for a long time.
  The electrode is used particularly frequently.
  The measurement accuracy requirement is relatively high.
  Notes
  1. When measuring, gently shake the electrodes, do not allow bubbles on the electrodes, otherwise it will affect the measurement results.
  If the display error is large or the EC value does not return to zero, the EC electrode should be inserted into alcohol and shaken for 5-10 seconds to clean the electrode.
  Battery Installation
  If the backlight brightness significantly decreases, the measurement error is large, or the display value is blurry, it should be charged in time. The instrument is equipped with intelligent charging function, which will automatically turn off power when fully charged. It is recommended to charge for 2-3 hours. If you need to monitor for a long time, please connect the power adapter.
