One key anti-whistle function There is a microphone preference function
Size informationThe Size Information

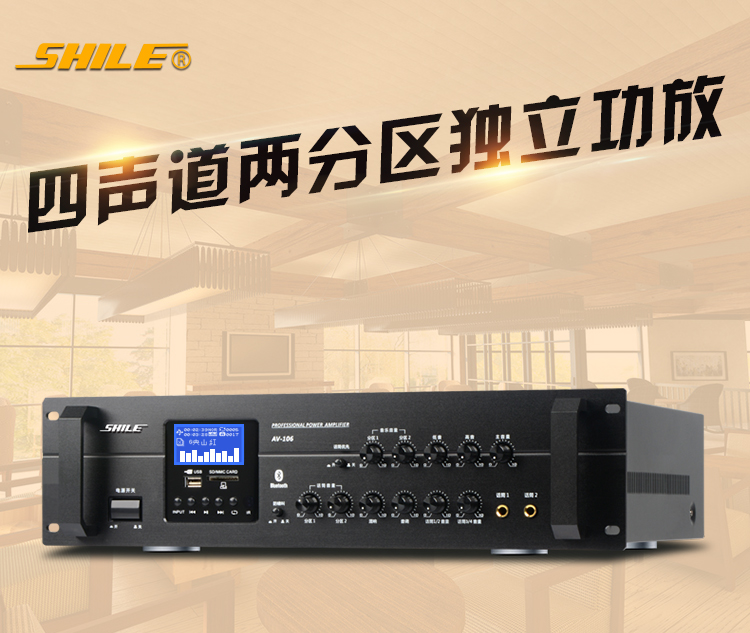

AV - 106.
Brand name: shile
Product model: av-106
Frequency response: 35hz-20khz (+ / -3db)
Load impedance: Ω 4 ~ 8 Ω
Harmonic distortion: no more than 0.5%
Degree of separation: greater than or equal to 45dB
Weight: 12.85kg
Rated power: 400 w (4 Ω)
Input sensitivity: no more than 300mV
The electromotive force of the overload source is greater than or equal to 2V
Signal to noise ratio (A weight) : greater than or equal to 81dB
Voltage: AC220V plus or minus 10%
Product size: 485 x 405 x 128mm
485 mm
405 mm
128 mm
It can give customers a better experience
From the design appearance to the application of various functions, we are thinking of giving you
Try to be as experienced and convenient as possible
Product featuresThe Product Function
Four - channel two independent regulation function
The independent adjustment of the two sub-areas is more suitable for the use of public places for conferences, small and medium-sized, and is flexible and convenient
Handy, suitable for cafes, shopping malls, meeting rooms, restaurants and families!
Ground floor cafe
Cafe on the second floor
Each knob can independently control a partition of the speaker
Microphone anti-whistle function
The av-106 amplifier is even more open with one key to prevent howling
Function: the screeching noise is away from you
Built-in wireless bluetooth function
Support all terminal wireless mobile control system, free from the cable constraints, wireless terminal to give you wireless fun
pod
The iphone
The device
The computer
Other mobile phone
Microphone priority function
AV-106 amplifier more designed microphone priority function button, press the microphone priority function button to realize the music sound disappear when the microphone speaks
External USB/SD card function
Strong compatibility, support USB/SD card direct reading playback, your favorite audio MP3 format songs
You can enjoy music by downloading it to a usb drive or SD card
Infrared remote control reception
Infrared remote control receiving distance is farther, humanized remote control is more convenient to quickly switch music
Product detailsThe Product Details
Pure copper power transformer
High quality and large capacity
Black thickened radiator
High power Toshiba power tube
The AV-106 amplifier is made of high power pure copper transformer with strong power
AV-106 USES two 63V10000uF
Capacitance, large capacitance, high cost, good quality and long life
The av-106 further upgrades the thickened aluminum heat sink to effectively control the temperature of electrical components, thus reducing loss
AV-106 USES high power Toshiba power tube
Power, sound shock, strong
Browse/record songs
Enter select key
mute
Next folder key
A song on an MP3
Put a button on the radio
Standby button
Folder repeat key
Next folder key
The volume and key
The next song MP3
Next radio button
The volume reduction of key
Song selection key
EQ sound key
Repeat the song key
The meeting room
Four - channel two - zone conference amplifier
Excellent application for many occasions
The attachment listaccessories
