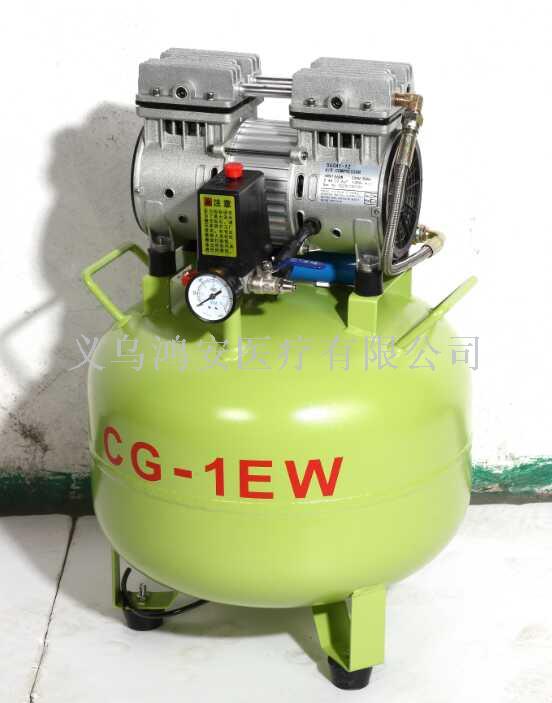

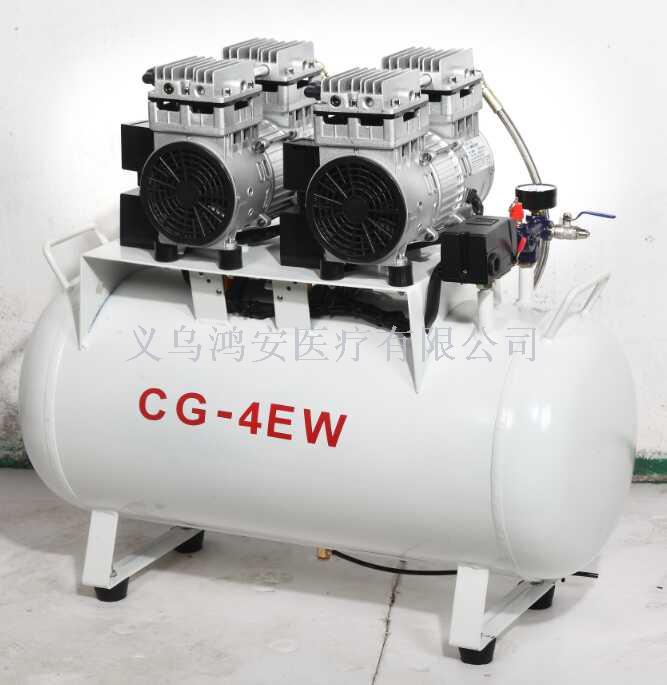

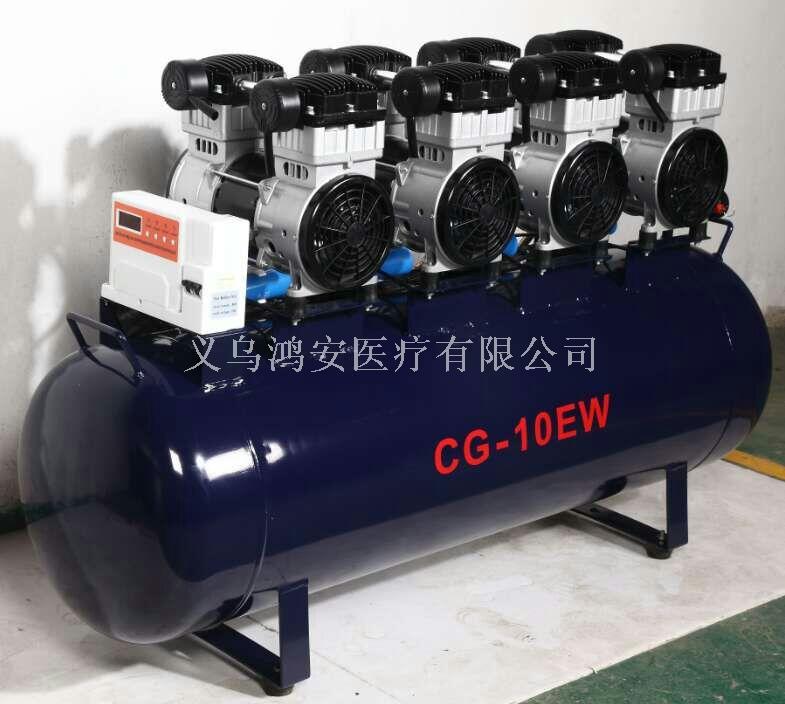

medical supplies for export dental silent oil-free air compressor

PediAdvantages of oil-free silent air compressors

1.German-China technical cooperation, the design of the entire aircraft modelDesigned with environmental protection and energy conservation as the core concept

2. The entire machine operates with oil-free compression, and exhaust occurs at low temperature without any oil throughout the process.

3. Utilizing the high-pressure casting process with magnesium-aluminum alloy, it possesses strong toughness and heat dissipation capabilities.

4. The rotary intake/exhaust structure design ensures low noise levels of the machine under high pressure conditions

5. Protection against IP6.7; designed for high and low temperature operations up to 55°C, with independent supporting design suitable for various operating conditions

6. Direct coupling transmission, combined with permanent magnet synchronous motor configuration, ensures the compressor’s efficiency reaches over 98%.

7. Clamp-type sealing rings and guide rings offer better sealing performance, with an automatic pneumatic expansion sealing function after wear, up to

  The 3.0Mpa design can meet the pressure requirements of various industries.

8. A multi-host combined assembly allows for startup with a large displacement and low current, enabling more frequent rotation of multiple hosts.

9. The maintenance cycle is long; maintenance and repairs can be carried out anytime, anywhere without the need for professional staff or specialized tools.

Scope of Application

Application of oil-free silent air compressors: They are widely used in medical, laboratory, water treatment, biopharmaceuticals, environmental protection, printing, shipbuilding, machinery, textiles, petrochemicals, precision electronics, instrumentation, spraying, tobacco, nitrogen generation, food processing, optics, defense research, and any field that requires clean compressed air.

Oil-free silent air compressor selection recommendations

1. 1.Air compressors are mandatory inspection equipment and fall under a special licensing industry; they cannot be produced elsewhere. Therefore, when purchasing an oil-free air compressor, it is essential for the manufacturer to provide a production license for oil-free air compressors.
2. 2.After confirming the technical parameters used, such as pressure and flow rate, the manufacturer will provide the appropriate product from a professional perspective and offer recommendations for the customer's selection.
3. 3.Pressure-based selection: Choose the higher value instead of the lower one: If you focus on pressure during the use of oil-free air compressors, the selected value should be higher than the actual operating pressure.Over 50%, increase the requirements for pressure parameters at the factory stage from manufacturers. Within the adjustable range, adjust usage accordingly. For example: select an air compressor with a low pressure of 0.8 Mpa; when selecting the equipment, you can require a factory pressure of: 0.8 × 1.5 = 1.2 Mpa.. This is the pressure required by the contract. However, it must be adjustable. Because, the advantage of such selection is that the material and manufacturing process of the gas storage tank must be improved, as well as the quality of the safety valve. The related configurations of the air compressor, including the motor and bearings, must also be upgraded accordingly. Only in this way can it be ensured that...0.8MpaDurable operation mode
4. 4.Flow selection: The focus in flow selection should be on the motor power. Under a certain flow rate, reducing energy consumption is key to designing oil-free air compressors. Only from this design perspective can the manufacturer's capabilities be demonstrated. For example:100 L/minThe traffic, when your usage pressure only requires it.0.6MpaAt that time, the corresponding tool only requires0.5KWThat’s fine. If the manufacturer can achieve it, the customer will get low-energy-consuming products and a quiet environment. Because, a certain power level can reduce noise.
5. 5.Gas storage tank selection: The selection of the gas storage tank must take into account stable pressure, appropriate start-up and shutdown times for the air compressor, and drainage methods. However, the first thing to confirm is:a.Does the gas storage tank have a pressure vessel production license?; b.Material and wall thickness of the gas storage tankc.Drainage method for the gas storage tankd.Gas storage tank and pressure ratio (for detailed inquiries, contact technical team)
6. 6.Configuration Selection: Emphasis is placed on the humanized and functional aspects of oil-free air compressor control. Pedi oil-free air compressors can achieve: remote485 interface control unit can integrate with computers or enable multi-unit control; utilizing PLC touch screen technology, pressure and flow can be set arbitrarily, multiple units operate in turn, and the operation data and protection settings of each main unit are stored separately. It can also be integrated with customer control systems.
