CPU

RK3229, 28nm Quad-core Cortex-A7, High-cost performance 4K OTT Box solution

Graphics Processing Unit

ARMMali-400 GPU

HDMI

Including an HDMI 2.0 for 4K YUV 420@60Hz with HDCP 1.4/2.2

Supports 4K 10-bit H.265/H.264/VP9 video playback and display

Memory

1GB DDRIII

Flash

8GB Nand Flash (up to 32GB)

WiFi

802.11b/g/n, RTL8703 (RTL8723, optional)

Wired network

EthernetGMAC10/100/100MEthernetcontroller

Supports 10/100/1000 data transfer rate and RGMII interface

Support 10/100Mbps data transfer rate and RGMII interface

IR

InfraRemoteControl

PowerSupply

DC input 5V/2A

I/O:

1*HDMI1.4b with CEC

Built-in HDMI 1.4b transmitter including both controller and PHY with CEC and HDCP, 4K@60FPS max resolution output

1* MicroSD Card (TF)

TF cards (up to 32GB)

4*USBHOST

2 High-speed USB 2.0, supports USB disk and USB HDD

1*SPDIF

SPDIF output

1*RJ45

Ethernet:10/100M,standard RJ-45

1*Powerinput

5V/2A

Accessories

Giftbox

Power charger adapter

HDMI cable (optional)

IR Remote Control (optional)

User's Manual

Software

OS

Android 5.1

3D

Hardware 3D graphics acceleration

Videodecoding

4K VP9 Video Decoder, 4K 10-bit H.265/H.264 Video Decoder

1080P video decoders (VC-1, MPEG-1/2/4, VP6/8)

Support conversion from BT.2020 to Rec.709/Rec.601

Video postprocessor: de-interlace

Support H.263/H.264 2160P@24fps

Supports VC-1, MPEG-1 at 1080p resolution at 60 frames per second

Support MPEG-2 2160P @ 24fps

Support MPEG-4 1080P @ 60fps

Support AVS 1080p @ 60fps

Support MVC 2160P @ 24fps

Supports WMV, 3GP, MKV, ASF, 3G2, M4V, MJPEG, RV8, RV9, RV10, 1080p@60fps

SupportHEVCdecoder

SupportMain/Main10HEVC/H.265decoder,4K@60FPS

Supports a resolution of 4096x2304

Supports HDMI 720P-2160P FUII 3D HD (2160P, 3840*2160), 4K+2K

Supportflash11.1

VideoDecoderFormat

H.264, H.265, VP8, MVC (1080P)

Video format

Supports DIVX/DIVX+, REAL8/9/10, RV, RM, RMVB, PMP, FLV, MP4, M4V, VOB, VP6, VP8, 2160P@24fps

Audio format

Supports MP1, MP2, MP3, WMA, OGG, AAC, M4A, FLAC, APE, AMR, RA, WAV, etc.

Picture format

Supports JPG, JPEG, BMP, GIF, PNG, JFIF, etc. Resolution: 8192x8192

HDD filesystem

FAT16/FAT32/NTFS

SupportSubtitle

SRT, SMI, SUB, SSA, IDX+USB

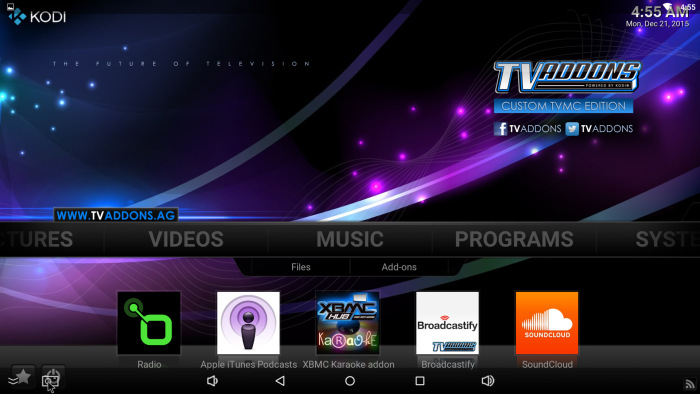

XBMC/KODI

Support

DRM

Support Widevine Level 1, DRM PlayReady, Verimatrix, built-in Trustzone,

HDCP2.2/1.4

Support language

Chinese, English, German, Japanese, Korean, etc., multilingual languages

Applications

Online

Browse all video websites, support Netflix, Hulu, Flixster, YouTube, etc.

Apps

Applications can be downloaded for free from the Android Market, Amazon Appstore, etc.

Medium

LocalMedia playback, supports HDD, USB disk, SD card

Talk online

Support Skype video call, MSN, Facebook, Twitter, QQ, etc.

Others

Support Wi-Fi hotspot, could be a wireless router.

Support DLNA, Google TV Remote, LAN, 3D Movie, Email, Office Suite, etc.

Packing

Dimension

118*118*25mm

N.Weight

154g

G.Weight

560g

ColorBoxDimension

240*150*60mm

CartonDimension

50.5*32.5*32.5cm

Quantity per Carton

20PCS

Gross Weight/Container Number

10.5KG
