• 1. Button 1: Set Defense

  1. Button 1: Set Defense
  1. Turn the direction indicator on once, sound the horn and the horn negative once, lock the door, and turn off the engine. The LED will blink slowly, and each press will be effective, but the second press will not lock the door.
  2. If you press the deactivation within 3 seconds after system defense is set, the horn will sound once, and the vibration sensor will be turned off. When setting defense again, exit.
  3. With ACC, set the defense lock.
  Key 2: Disable
  1. Turn signal flashes twice, horn and horn negative call twice, unlock, LED slowly flashes, if you press again, it will only unlock.
  2. Press the UNLOCK key with ACC to unlock.
  Key 3: (Anti-theft) (Programmable) Please refer to the function setting table 8.
  1. Side door anti-robbery:
  Turn on ACC, if you open and then close the driver's door, the LED will flash, and the headlights will flash twice, indicating that the function has been activated. If there is a sound setting, the horn will beep twice. To activate the anti-theft function, you must connect the anti-theft wire to the side door negative.
  2. Remote anti-theft:
  Turn on ACC, press the 'm' key or the 'mute' key for 3 seconds, the light flashes twice, the horn and the negative horn call twice, the LED flashes quickly, indicating that the function is turned on. If the sound is turned on, the horn calls twice, and the function can be programmed. (Refer to the function setting table 8).
  3. Ignition Anti-Theft:
  If this feature is enabled, each time the ACC is turned on, the system will automatically activate the anti-theft function without needing to open the door. Press the remote control to activate it. After activation, the LED will flash, the headlights will flash twice, and if the sound is turned on, the horn will make two sounds. The function can be set (see the programming table on page 10).
  4. On-site anti-robbery:
  This feature is used when the car is driving away, to stop the car using an additional remote control (other than the two provided) within 60 seconds of activation. The LED will flash, the headlights will flash twice, and if the sound is enabled, the horn will sound twice. The function can be set (see the function setting table), so the optional remote control will make the car stop 60 seconds after it has driven away.
  5. Enter Anti-Theft Mode
  The system enters the anti-theft mode, the headlights flash twice. If function 13 is also activated, the horn will sound twice, and the LEDs will start flashing slowly. After 30 seconds, the headlights will flash and the horn will make a loud noise. 15 seconds later, if function 14 is turned on, the sound will be turned on, and the current cut-off device (relay) will immediately turn on and send a faulty signal to the engine. 15 seconds later, the current cut-off device will be activated again and shut down the engine, locking the doors, and the horn will continue to sound.
  6. Exit Anti-Theft:
  Turn off the anti-theft system before the horn starts blaring, or within 60 seconds after the anti-theft trigger is activated, press the emergency stop button once and then release it.
  After the horn starts blaring or after 60 seconds after anti-theft activation, turn on ACC, press the emergency contact and safety code the same number of times (the factory default is 1 time), then wait for 3 seconds to confirm if it is correct.
  Button 4: Trunk.
  1. Long press the trunk key or search for the car for 3 seconds to open the trunk.
  Press the * key and the trunk key at the same time to activate channel 3, (check the function settings of channel 3)
  "5. Deterrence
  Press buttons 1 and 2 simultaneously for 3 seconds to activate the deterrent function. The turn signals and horn will flash in unison, the horn will sound continuously, the engine will be turned off, and the LEDs will flash slowly. You can only exit by pressing the reset button.
  Six. Silent Defense
  Press the button * once, then press button 1 once, the system will set the silent defense, the turn signal flashes once, the lock is turned off, and there is no sound.
  7. Mute and Disarm
  Press button 3 once, then press button 2 once, you will disarm in silent mode, the turn signals will flash twice, the lock will be opened, and there will be no sound.
  8. Automatic Defense (Programmable) Please Refer to Function Setting Table 1.
  Engine shuts off, all doors closed for 30 seconds, then the headlights flash once, the horn sounds once, and the LEDs slowly blink. If the electric door closing system is set correctly, the doors will automatically close.
  If the auto-defense is set in the car washing mode, it will automatically be canceled.
  9. Door not closed warning
  When the system is in defense mode, if there is a fault in a certain area, the horn will sound three times, the turn signal will flash three times, indicating that there is a problem with that area. This could mean that the side door or the trunk has not been properly closed.
  Emergency Alarm
  When the system is on guard, if the ACC is turned on, the side door is opened, or the vibration is heavily triggered, the horn will sound continuously, and the direction indicator and the horn will flash in negative synchronization for 30 seconds. If the door is still open after 30 seconds, the sound and light alarm will continue. You can pause it by using the guard and release buttons.
  11. Trigger Alarm Alert
  When the defense is withdrawn, the horn will sound 4 times, and the lights will flash 4 times to indicate that the car has been invaded again. The LED will stay on until the engine is turned on.
  12. Automatic secondary defense (programmable) Please refer to function setting table 5.
  1. In the anti-theft state, after the remote control disarms, the LED indicator light will flash rapidly. If the door is not opened within 90 seconds or the engine is not started, the system will re-arm, and the horn will sound once, with the light flashing once.
  2. If you want to automatically set up a defense lock. This function must be turned on in function menu 15.
  Thirteen. Parking Search
  In defense mode, pressing the 1 key will cause the horn to sound once immediately, and the headlights will flash five times.
  Fourteen. Repairing Car Mode
  1. Turn on ACC, then hold the emergency contact button continuously for 3 seconds, and the LED will stay on, entering the repair mode. The sound and light anti-theft will be turned off. You can only use the functions such as car locating, warning, opening the trunk, opening and closing the doors, and raising the windows (channel 3).
  2. Exit the car child mode, turn on ACC, press the emergency release switch once, and the LED will go out, indicating that the car has exited the repair mode.
  15. Emergency release switch to deactivate the defense.
  Losing the remote control or damage to the remote control, use the emergency disarm switch to deactivate the security.
  Defensive state, open the driver's door, the horn starts blaring, activate ACC, press the emergency release switch within 10 seconds, the horn continues to blare for 3 seconds. If the security code is correct, the system will deactivate the defense. (The security code is defaulted to 1 at the factory)
  LED Indicator
  The 7 states of LED:
  1. LED off: System disarms.
  2. LED ON: System is in repair mode.
  3. LED Slow Flash: System is armed.
  4. LED Flash: 30 seconds, automatically set defense, 90 seconds, automatically set secondary anti-theft.
  5. LED flashes once and pauses, then ACC is triggered.
  6. LED flashes 3 times and pauses, trigger the side door.
  7. LED flashes 4 times and pauses: Vibration resets the trigger.
  17. How to activate the remote control (anti-theft remote control in situ) (programmable) Please refer to the function setting table 16.
  ...................

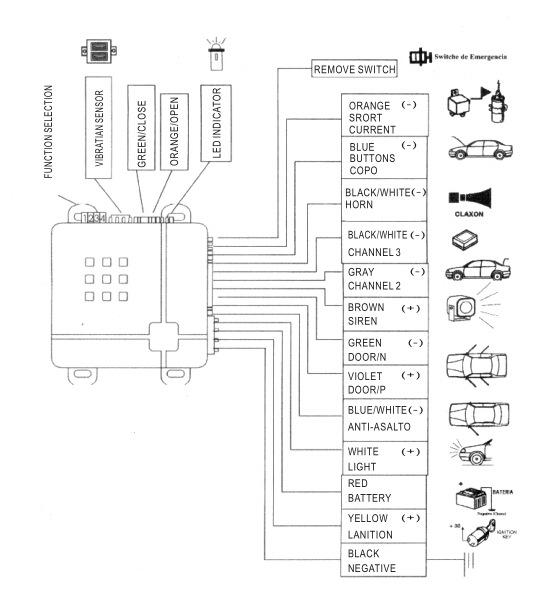

 Installation drawings
