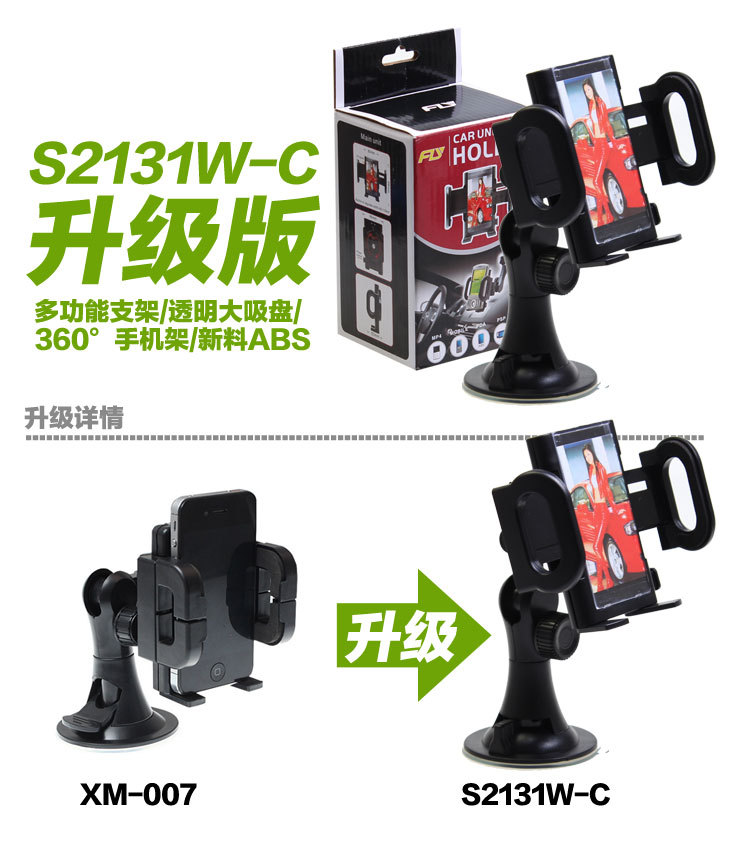

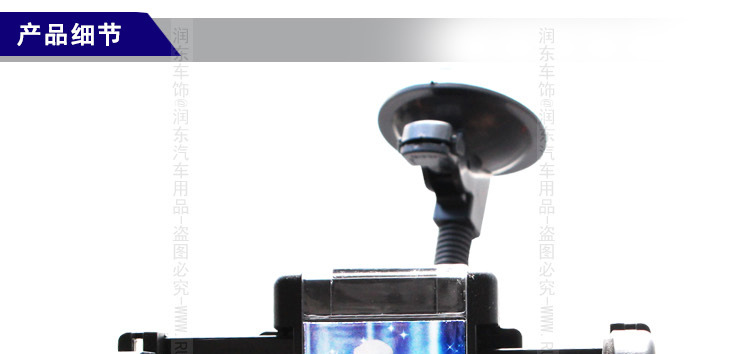

[product name] : s-2131w-c (XM - 007 - a version upgrade) navigation rack.

[material] : high-quality hardware +ABS+ universal support.

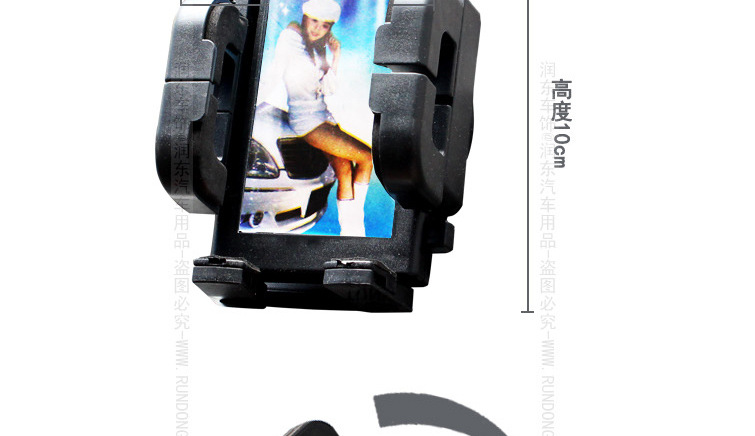

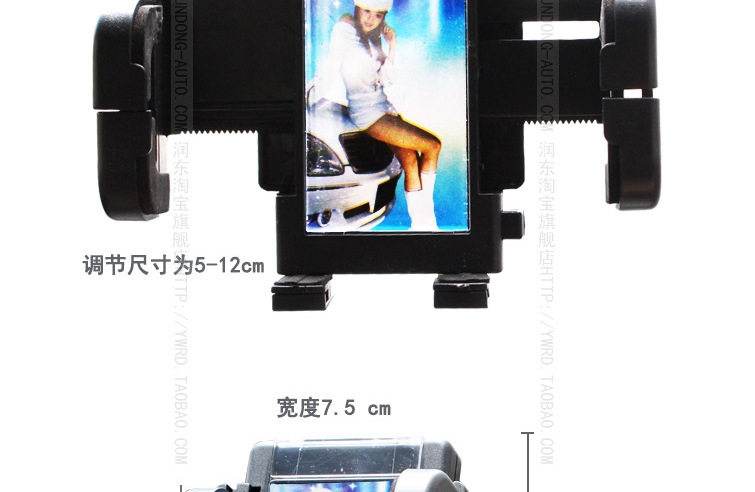

[specification] : adjust width 5CM--10CM.

Color: black.

[weight] : 0.10 KG.

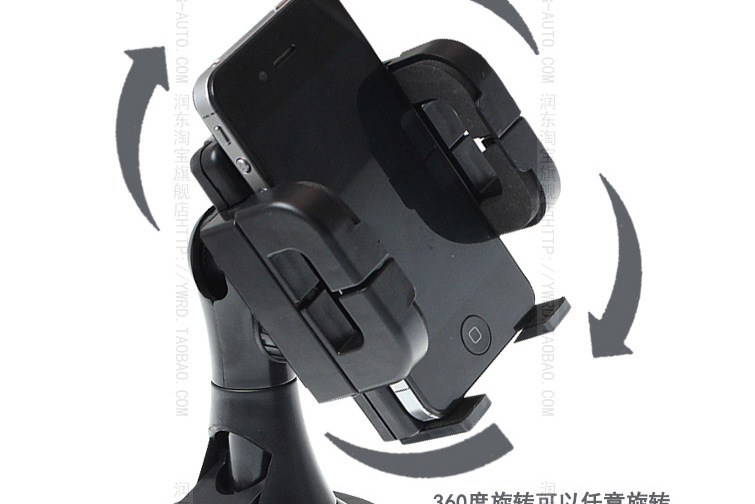

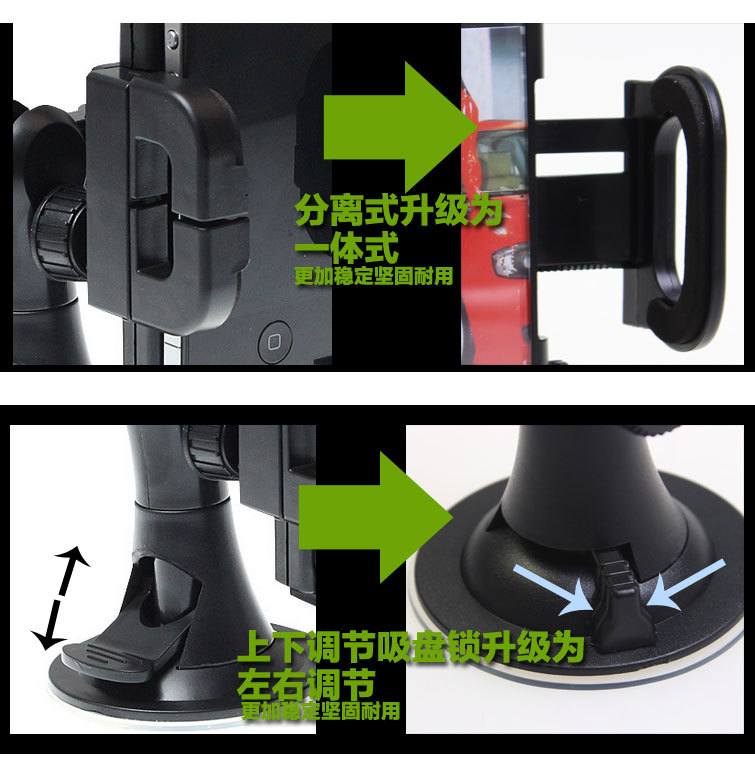

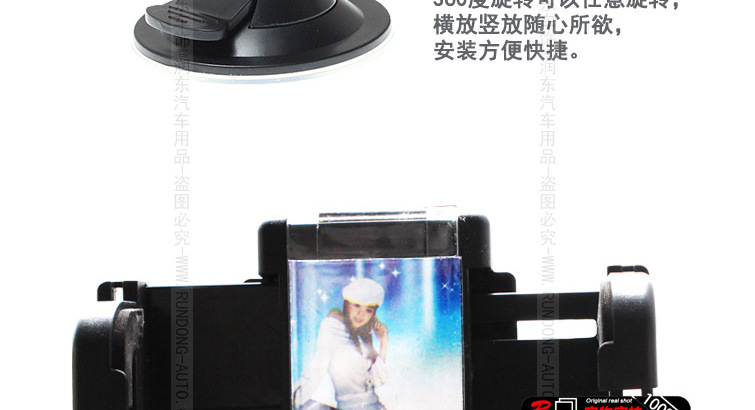

  1. The rotary table can be 360 ° rotating freely, make use of the wheel side lock locks. Follow the icon on the edge of the lock to indicate the operation.

  2.Sliding block with free sliding orbit, plate 360 ° free rotation and sliding. Avoid the phone side.

     Keys and other data interfaces.

  3. Add two air - conditioning footpads, and use accessories to match the air conditioning Windows on the car.

Product performance:

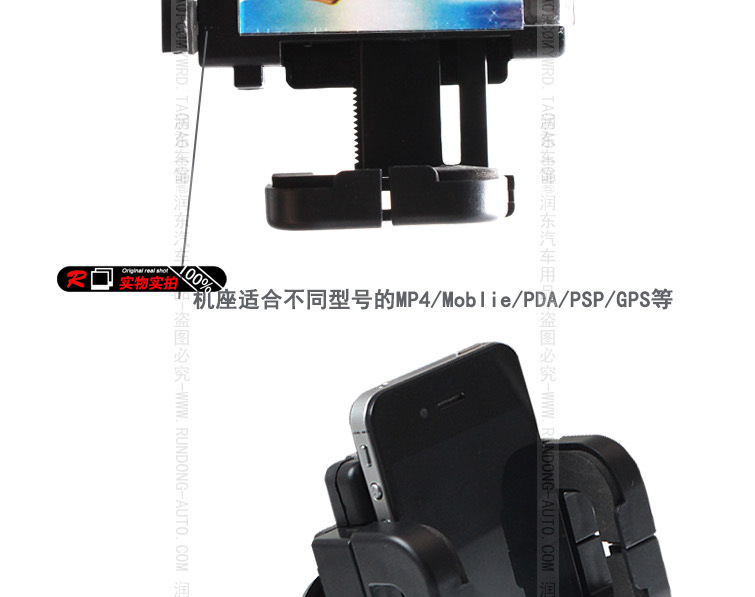

1. The oil pressure drag double arm, the two - way play is smooth, the noise is small, the speed is uniform and so on. Arm opening42-116 - mm) suitable for loading all kinds.GPS, smart phones and other products.
2. Independent sliding block and freestanding plate design are novel, which can avoid the mobile phone side key and other data cable interface.
3. The support is good, and the rotary bearing and bracket can be used to adjust the different angles.

Installation instructions:

  1.Connect the top of the top of the sucker bracket with the hole position on the main disc and fasten it to confirm that it is firm. Through rotary

     The Angle needed for the adjustment of rotary bearing and bracket rotary table;

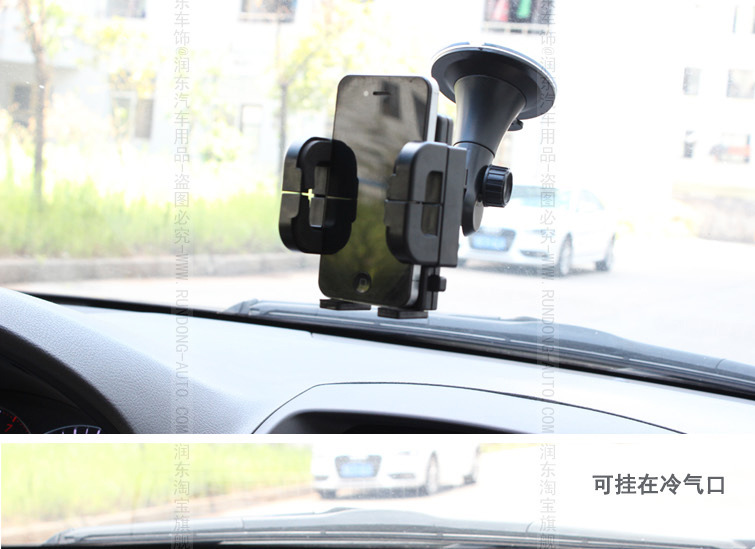

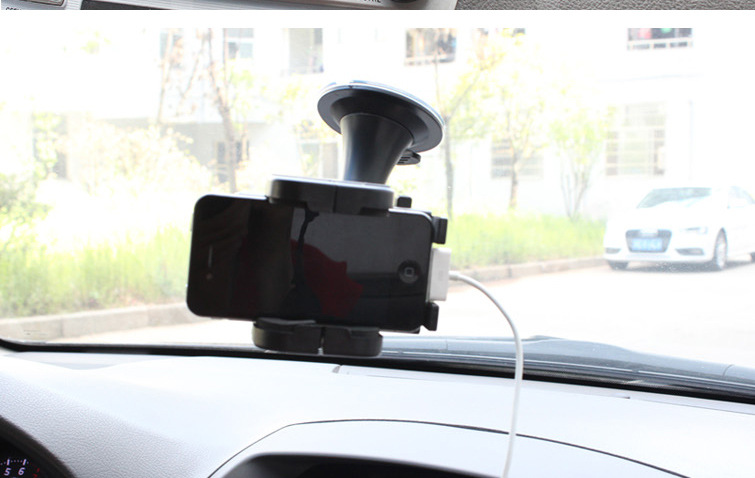

   2.Remove the protective film at the bottom of the sucker and press the suction cup toward the clean car windscreen and press the pressure valve.

     The adsorption of the suction plate is solid;

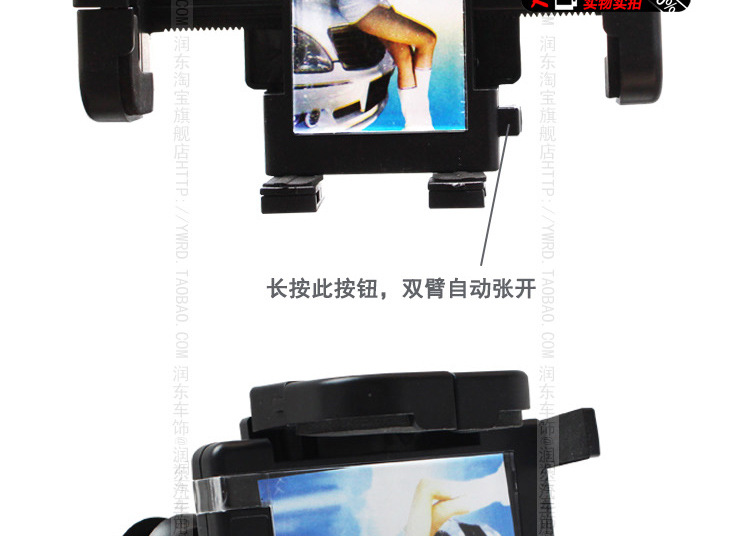

  3. Press the button of the main body with the hand, and the bracket arm can be opened smoothly and smoothly, and the GPS or PDA can be placed between the arms.

     In position, adjust the appropriate height and width and push the arm inward into the stuck product.

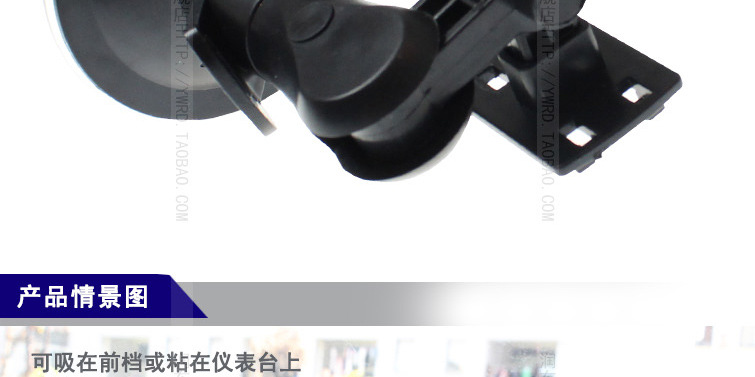

  4.Parts of the disk use: tear open the protective layer of red alignment has clean clean surface (at least 58 mm ￠) pressure, will have been torn off

     The suction cup of the protective film is aligned to the center of the cleaned disk, and the vacuum valve is turned to confirm the lock state.

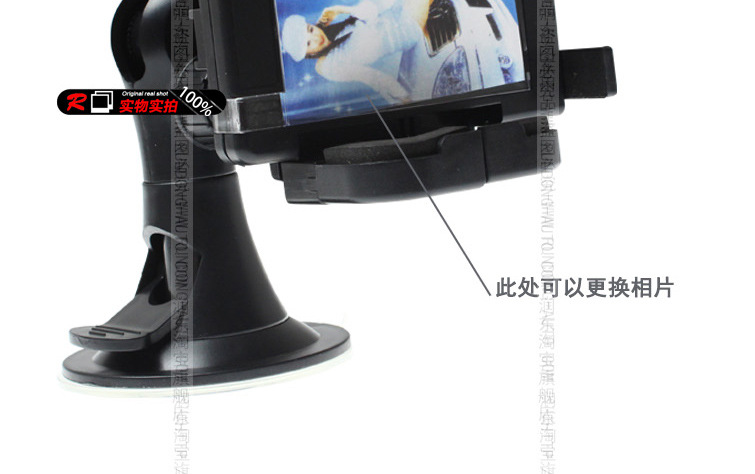

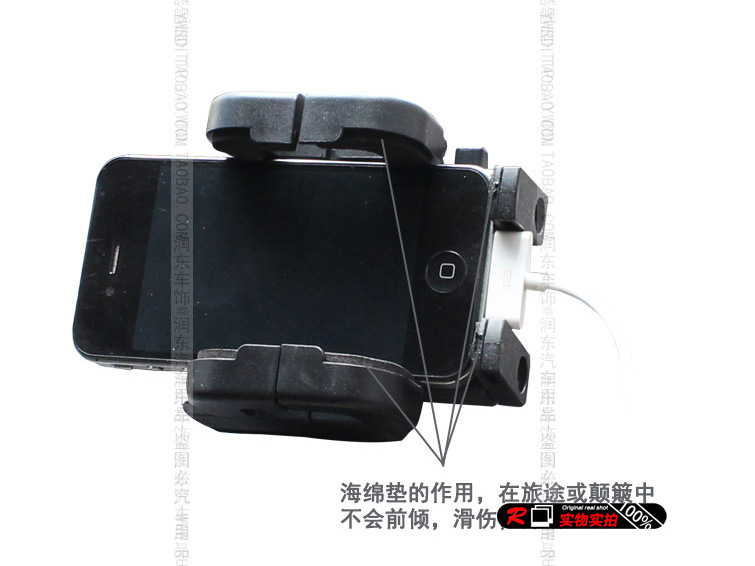

   5.The use of the accessory sponge paste: in the case of not using the photo paper, it can be used to replace the position of the central photo paper.

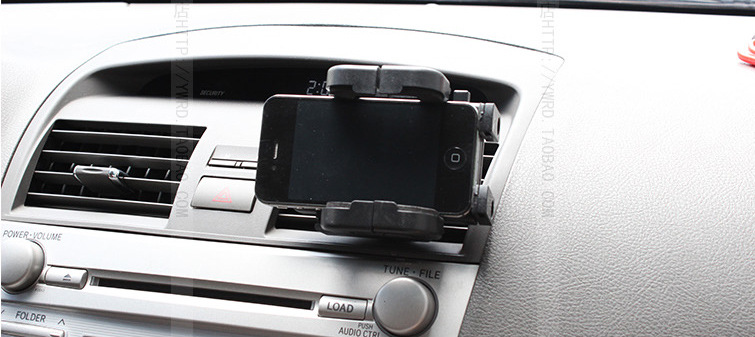

  6.The use of the air conditioning button: the round head of the air conditioner button is imported into the air conditioner in the back of the main body, and then it is reversed and confirmed.

      To the positioning state, the main body can use the air conditioning button to match the air conditioning window of the car.

Disassembly instructions:

 1. Hold the PDA or GPS product with one hand first, the other hand press the button of the main body, and the arm automatically pops up to remove the product;

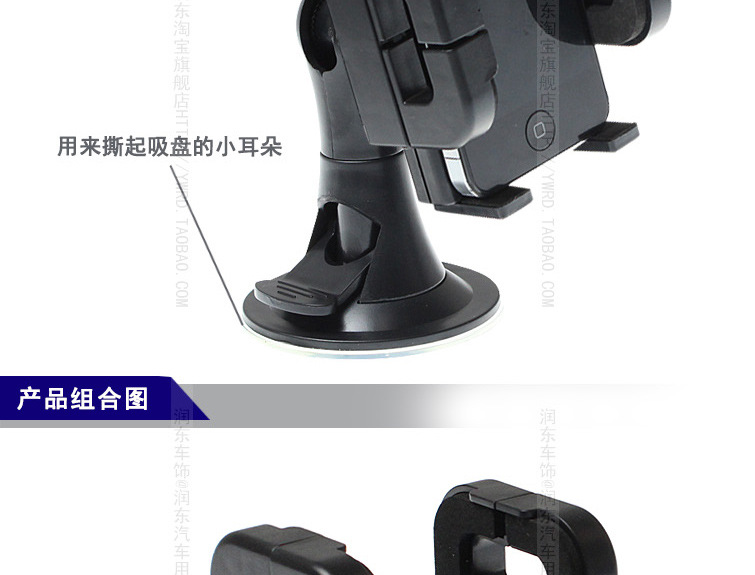

  2Remove the bracket and open the switch valve, then pull the easy pull strip on the edge of the suction cup holder to remove the bracket.
