1.Overview:

*Super Wide View Angle: HD 960P Video format:1280*960(1.3MP) Resolution with genuine color by H.264 compression format. The over look angle is 360°, see the entire room in stunning HD video quality during the day or at night(with Night Vision).

*Motion Detection: The motion detection sensors 'feel' it when something is moving in the room and will let you know immediately. Perfect for surveillance!

*Audio recording: Support real time video recordeing with audio, you can view the placyback with audio.

*Night Vision: Night vision up to 14m - Never miss a moment, day or night, with visibility up to 14m in complete darkness

*Loop Recording: When the memory full, it will auto cover the oldest video files; Recording and Charging at the same time that never worries about running out of battery life

Att: This Camera Support "YOOSEE" APP (Free)

This Camera Support View On mobile phone,PC Viewing

2.Specification

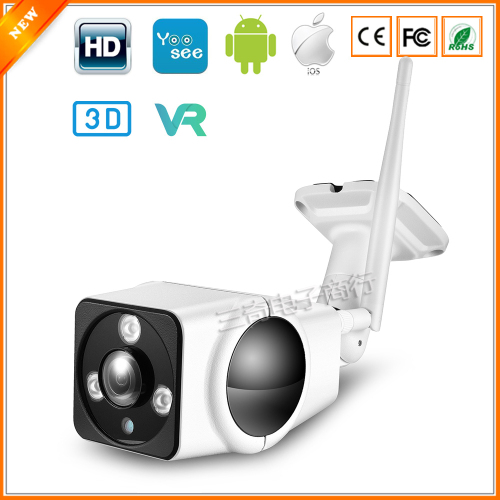

Product Name：360 degree 3D VR Wifi IP Camera

Website：don't support directly access by ip address

Sensor：1/3″ Progressive Scan CMOS

 Lens：360° panoramic lens

Angle：Horizontal 360°

Resolution：1280*960P (1.3MP)

Video Compression Standard：H.264, 960P

Audio Compression Standard：G.711, Audio recording

Video Frame  Rate：Max 25 fps

Aduio Input：Input Built in Microphone

IR Night Vision：IR LEDs,IR distance 15m

Onvif：Support, only support work with third part onvif NVR

Local Storage：TF/SD Card , Max support 64GB (Don't included)

Wifi：IEEE 802.11b/g/n

Image Rotation：Mirror / inverted

Mobilphone APP：YOOSEE

Alarm Actions：App push the snapshot

User Setting：Administrator, visitors

System Interface：1pc TF(Micro SD) card interface

Power：5V

Power Consumption：<8W

Operating Temperature：0C~60C

Material：Metalistic, Indoor/ outdoor Use

Size：L:19cm W:7cm H:6cm

Net Weight：0.35Kg

1.Warm tips: Before setting the camera, please press the "reset button"  7 seconds to factory reset.

2.Please download the Yoosee App to your mobile phone via scanning the QR code.

3.Before configure the camera working on wifi mode, If you want to make camera working on wireless mode,

   You need to connect the camera to your router via RJ 45 cable, and then make it working  on  wireless mode following the below settings.
