voltage:V/DC24V AC85-265
Luminous Angle: 45°
Shell material: the shell is made of die-cast aluminum, the face cover is made of stainless steel, silicone rubber sealing ring, curved multi-angle refracted glass, waterproof, dustproof, anti-leakage, anti-corrosion
Lamp bead brand: high-power LED chip, imported from Taiwan, 100-120lm /W, optical suburb rate up to 85%
Power: 3W 6W 9W 12W 15W 18W 24W 36W
Color: white, warm white, red, yellow, green, blue, RGB, color
Waterproof grade: IP65 (no use in water)

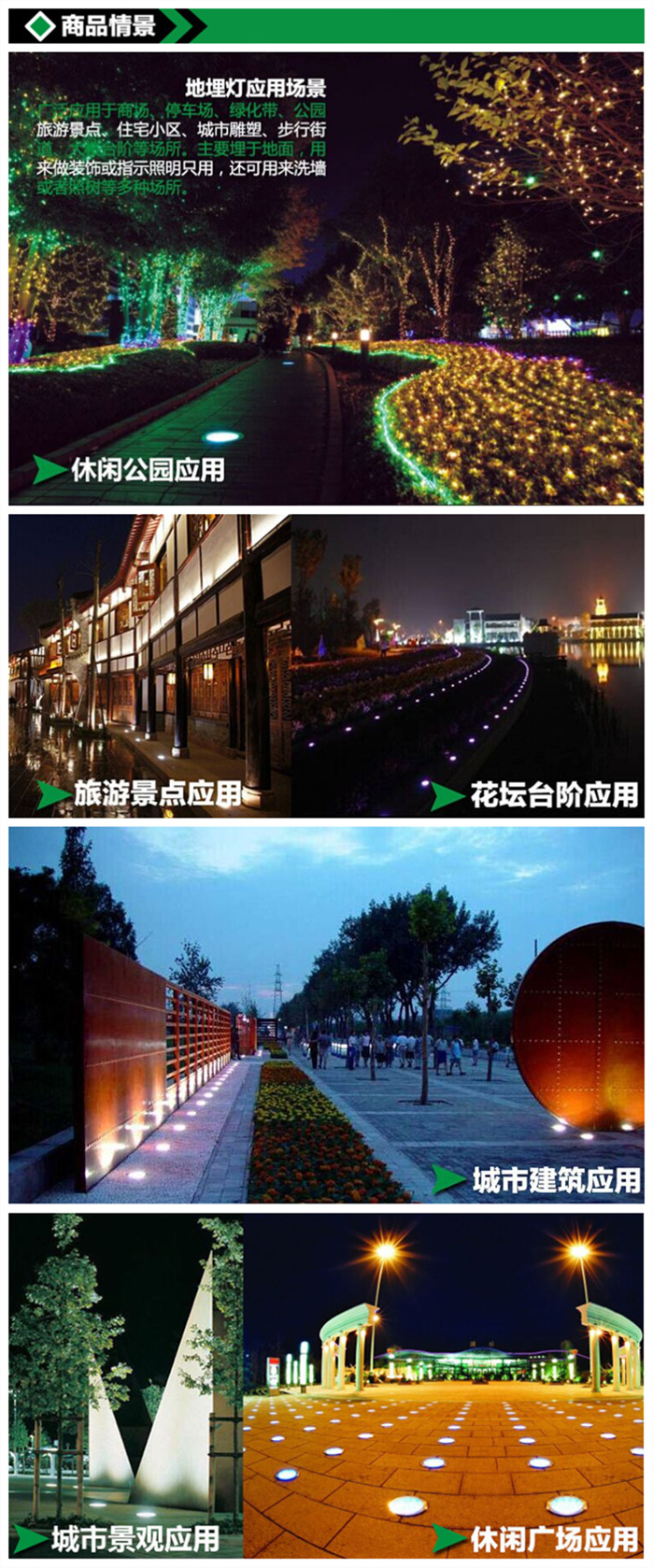

Scope of application: suitable for parks, squares, sidewalks, shopping malls, gardens, grass and other lighting places

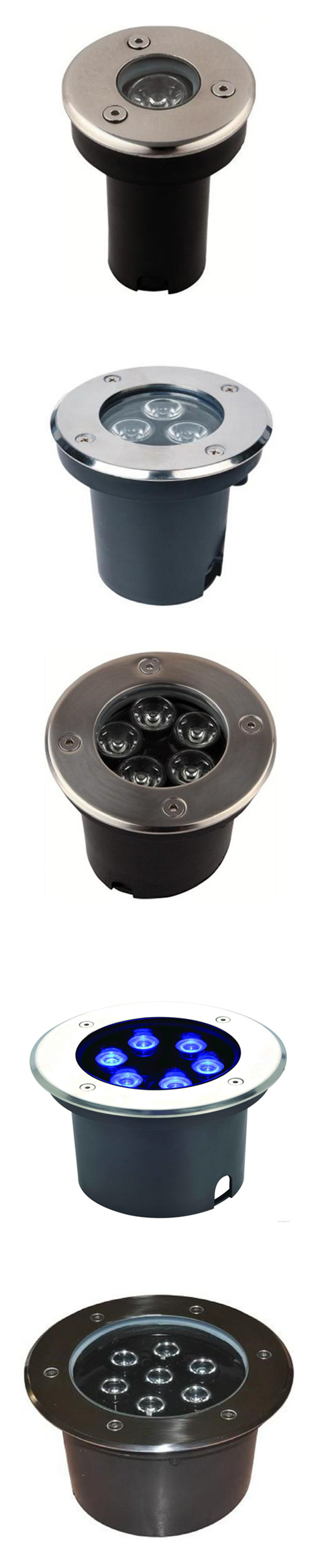

Standard size and corresponding W number:
1 w ￠65 * 80 mm
3 w ￠100 * 90 mm
5 w ￠120 * 90 mm
6 w ￠150 * 90 mm
7 w ￠150 * 90 mm
9 w ￠160 * 90 mm
12W and 15W ￠180*90MM
15W and 18W ￠200*90MM
15W and 18W ￠220*90MM
24 w ￠250 * 90 mm
36 w ￠300 * 90 mm
Characteristics of buried LED:
1. Professional IC constant current power supply provides steady current for lamp beads. Ensure that the lamp beads are not subject to unstable voltage operation, to extend the lamp service life
2. High-power LED light source, with energy saving, environmental protection, low voltage, easy to control, long life, no uv absolute advantages
3. The lamp shell is made of die-cast aluminum to ensure good heat dissipation and high waterproof performance. The face cover is made of stainless steel
4. High efficiency transparent integrated waterproof lens, high utilization of light, good illumination, to ensure the waterproof level
5. Unique high efficiency constant current power supply technology, to ensure the stable operation of each LED, long life
LED light source has the advantages of low-voltage power supply, low energy consumption, strong applicability, high stability, short response time, no pollution to the environment, multicolor luminescence, etc. Although the price is more expensive than the existing lighting equipment, it will inevitably replace the traditional light source device, and its application will be more and more extensive in the future
