Description

Product Features

Suitable for meeting rooms, theaters, multi-function halls, bars, etc.

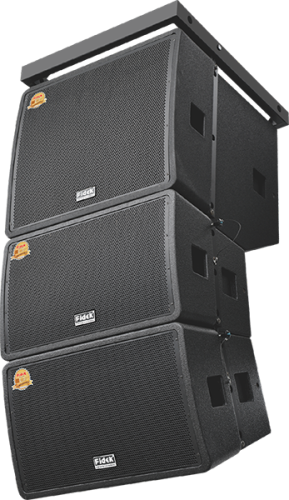

FLA-112 Single 12 Two-way Active Full-range
FLA-112 is a loudspeaker designed specifically for small-scale performances. Its horn is specially designed to ensure that sound waves reach effectively.

The time of the horn's mouth is consistent. The propagation of the wavefront is beneficial for improving the quality of amplified sound.

The box exterior features a large rounded corner design, breaking away from the monotonous linear array style.
■ Horns with wavefront correction technology, birch plywood wooden boxes, with wear-resistant and water-proof paint sprayed on the exterior of the box body.
■ The high-pitched diaphragm is made of Japanese materials, and the low-pitched diaphragm is imported. It has 1 65-core 12" low-pitched unit and 2 1.75" high-pitched units.
■ Electronic frequency division, built-in DSP module
■ Provides a total of 6dB of high-mid frequency enhancement, with options for low-cut and low-frequency expansion
Simple and Safe Suspension Combination

FLA-118SUB single 18-inch active subwoofer

■ Powerful DSP processing;
■ DSP's processing features: Low-frequency mode control (low-frequency enhancement/pass-through/low-cut)
High-frequency mode control (Normal/Voice enhancement)
■ DSP's processing features: Low-frequency mode control (low-frequency enhancement/pass-through), polarityControl (Standard/Inverted);
Adjust the frequency response and amplitude response actively to obtain a flat response within the frequency band.
■ Comprehensive protection features that ensure the safety of the amplifier module output and protect the sound characteristics.Not disturbed by other signals.
■ BOOST low-frequency enhancement can widen the lower limit of the low-frequency response.
■ VOICE人声提升功能 can enhance the clarity of the voice.

■ REMOTE GAIN Remote Gain Control.

Product Parameters

Model: FLA-112
Type: Binary Frequency Division
Subwoofer configuration: 12" x 1
High-pitched configuration: 1.75" × 1"
Frequency Response: 60Hz-18KHz
Rated Impedance: 8Ω
Rated power: 500W
Maximum Power: 1000W
Sensitivity: 98dB
Maximum Sound Pressure Level: 128dB
Directionality: Horizontal 100° Vertical 10°
Hanging Angle: Fixed
Size: 625×453×381mm
Net weight: 26Kg

Model: FLA-118SUB
Type: Low-Frequency Speaker
Bass configuration: 18" x 1
Frequency Response: 35Hz-1500Hz
Rated Impedance: 8Ω
Rated power: 500W
Maximum Power: 1000W
Sensitivity: 100dB
Maximum Sound Pressure Level: 130dB
Size: 625×669×552mm
Net Weight: 63Kg
