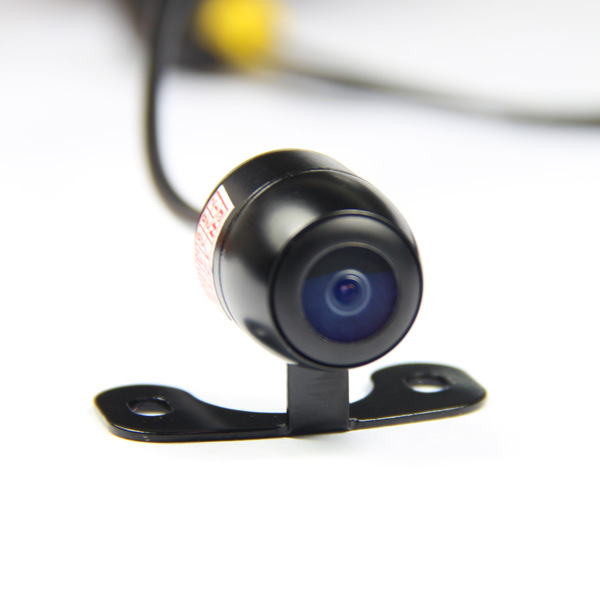

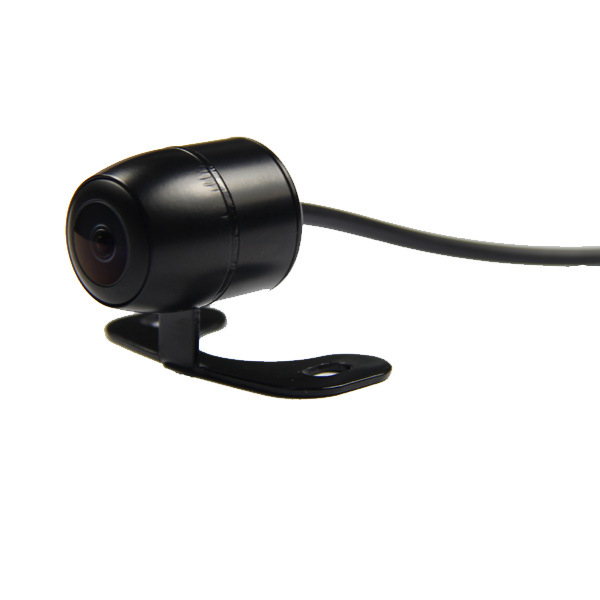

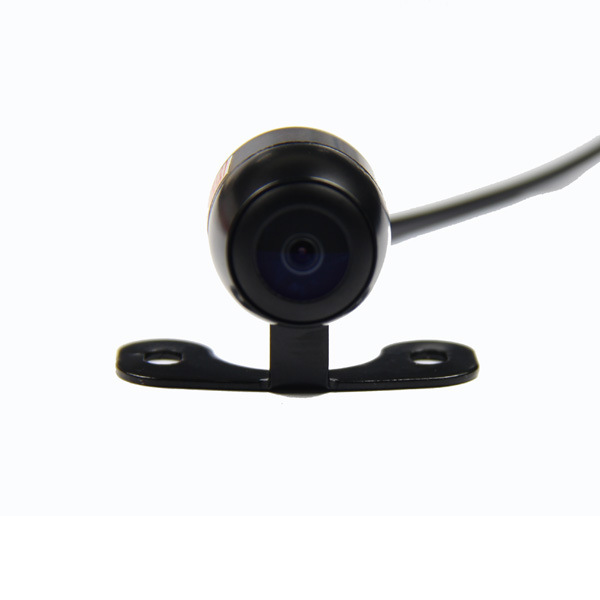

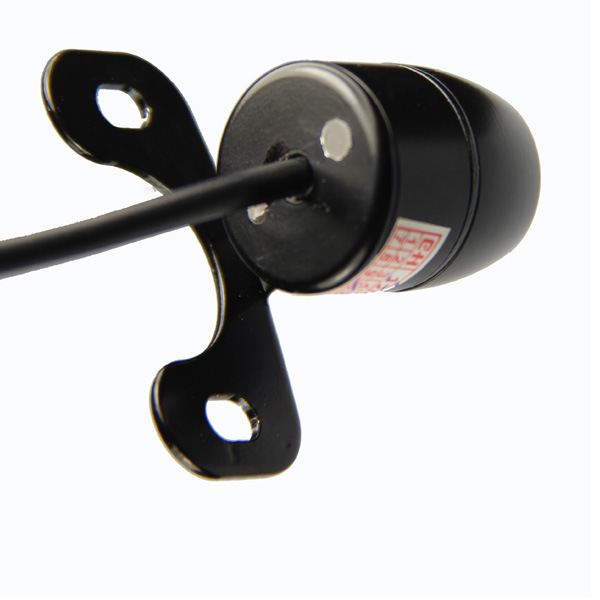

Rearview Camera, High-Definition Night Vision, Waterproof, Car-Mounted Camera, Rear-View System, Universal Type

Detailed Introduction:
1. Camera Parameters
Signal transmission without obstacles up to 100 meters, image sensor with 420 lines resolution, image chip: VC1/3’’ color CCD with plastic housing and waterproof design suitable for outdoor use, high-intensity infrared night vision lighting, 6.8G shock resistance, IP66 waterproof level, plastic stand, video input: 1.0Vp-p 7.5, power supply: DC12V, 200mA, transmitting frequency: 2414MHz, operating temperature: -20°C to 60°C, suitable for various car models, red power wire connects to the positive pole of the reverse light, black connects to the negative pole of the reverse light.
Receiving point cigarette lighter

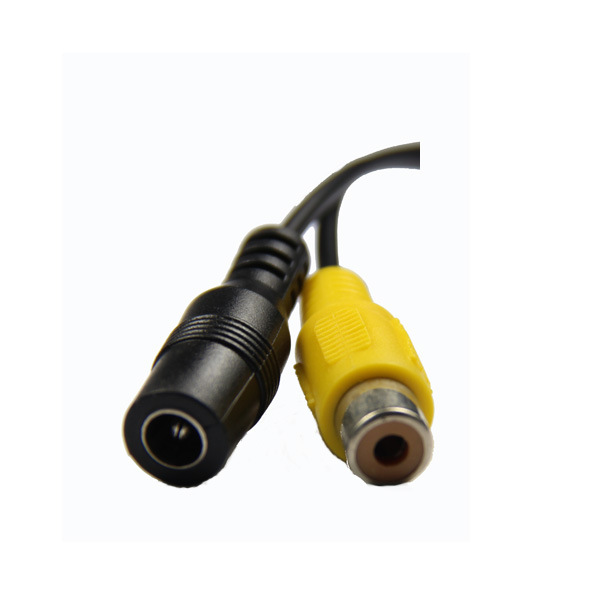

Easy to plug and play, working voltage: 12V, working current: 150mA, operating temperature: -20°C to 60°C, sensitivity: -93dbm, video bandwidth: 8.0MHz, tuning method: built-in frequency lock loop, signal demodulation method: wideband frequency demodulation, RF impedance: 75Ohm, IF frequency: 480MHz, IF bandwidth: 18MHz, AV output: composite video
Step 3: Installation Method (Simple and Easy)
1. Remove the inner layer of the trunk.
2. Open the license plate light cover and pass the camera power cable through the license plate light hole into the vehicle.
3. Attach the camera transmitter box to a convenient location on the trunk. (Placing the transmitting board in the layer between the steel plates will affect the reception effect).
4. Fix the camera near the license plate.
5. Connect the camera power cable to the reverse light position, and connect the positive and negative power cables to the power supply of the reverse light respectively.

Please note that the transmitting head should not be placed inside the laminated steel plate, as this will affect the reception effect.
