Model

R003

Operating System

Compression technology

Newly optimized H.264 Baseline Profile compression algorithm

Video

Sensor components

1.3 million CMOS sensors

Resolution

1280*960

Frame rate

1-15 frames per second

Lowest Illumination

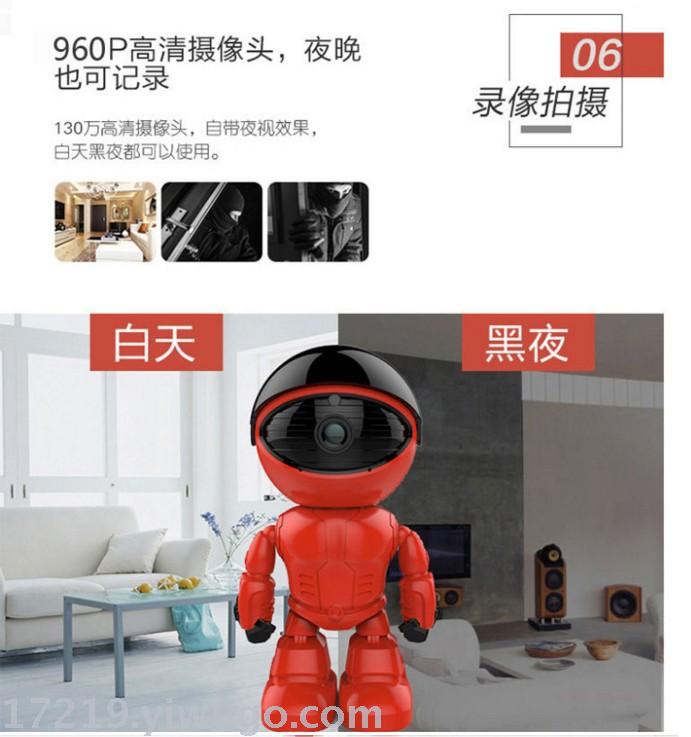

Daytime mode: 0.1LUX, Night vision mode: 0.01LUX

Signal-to-Noise Ratio

≥38dB

CMOS Performance

Supports automatic white balance, automatic gain control, and automatic backlight compensation.

Lens/Field of View

1.8mm, 1.3MP @ F2.0/74

Audio

Coding Standards

AMR

Audio Input

Support-38db Microphone

TF card

TF card storage

Equipped with a TF card slot, supporting up to 128GB storage card.

Video Management

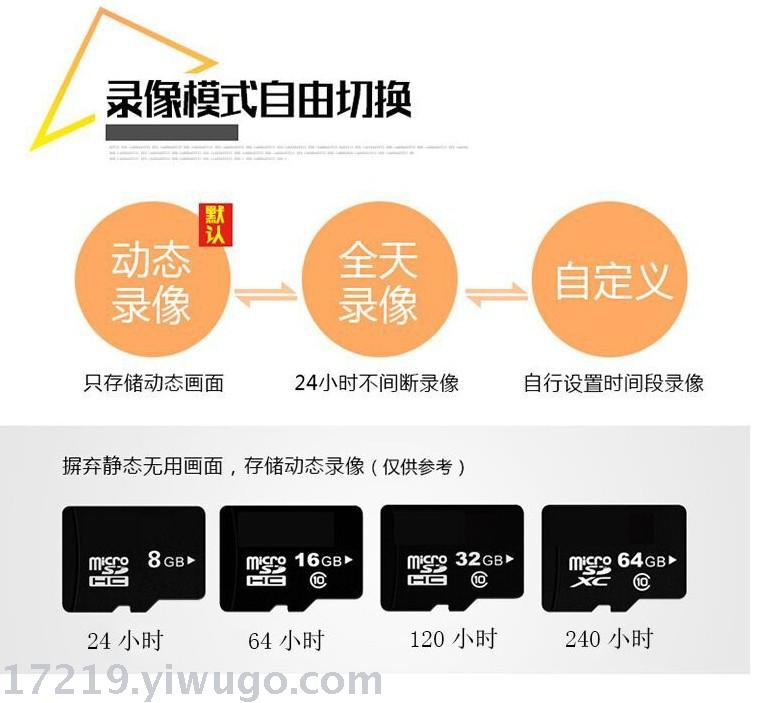

Video recording method

Manual Recording, Timed Recording, Alarm Recording

network

Network Protocol

TCP/IP, HTTP, TCP, UDP, SMTP, DHCP, DNS, DDNS, NTP, UPnP, P2P

wireless

Wi-Fi 802.11b/g/n wireless network

Alarm

movement detection

Support

APP

"It's interesting.

Other

Power Specifications

5V2A

Working temperature

-10℃ to +50℃

Work humidity

less than or equal to 80% relative humidity

Packing

Individual Packaging Weight (g)

430g

Individual Packaging Size (mm)

250*90*170

Whole case packaging weight (kg) / 22PCS

14.2kg

Whole case packaging size (mm) / 22PCS

540*480*420
