Supply all kinds of color series multi-wedge belt/triangle belt white, red, blue, green 中文版

Supply all kinds of color series multi-wedge belt/triangle belt white, red, blue, green

Supply all kinds of color series multi-wedge belt/triangle belt white, red, blue, green Supply all kinds of color series multi-wedge belt/triangle belt white, red, blue, green Supply all kinds of color series multi-wedge belt/triangle belt white, red, blue, green
QR code0
[Scan the QR code, view in your mobilephone.]
  • Updated: 2022-05-02 17:47
  • About Product:Custom processing: it is type: PK belt pitch: 3.56 (mm) with high: 7 (mm) tooth profile Angle: 40 °) brand: grandpower applicable models: all kinds of material: CR, EPDM origin: CHINA
EXW Price:
Above 100pcs   CN ¥ 10 /pc
Send Inquiry
Contact
Main
Products:
Timing belt,PK belt,Ribbed belt,V belt,Wrapped/Cogged belt,oil seal,Diaphragm,Brake pad,Joint ,Gasket
Contacts: 黄建平Chat
Mobile: 86-008657981069313
E-mail: info@chngrand.com
WeChat: 13586963969
Address: 69306 , 12 Street, 4 F, 112 Gate, International Trade Mart (District 5).

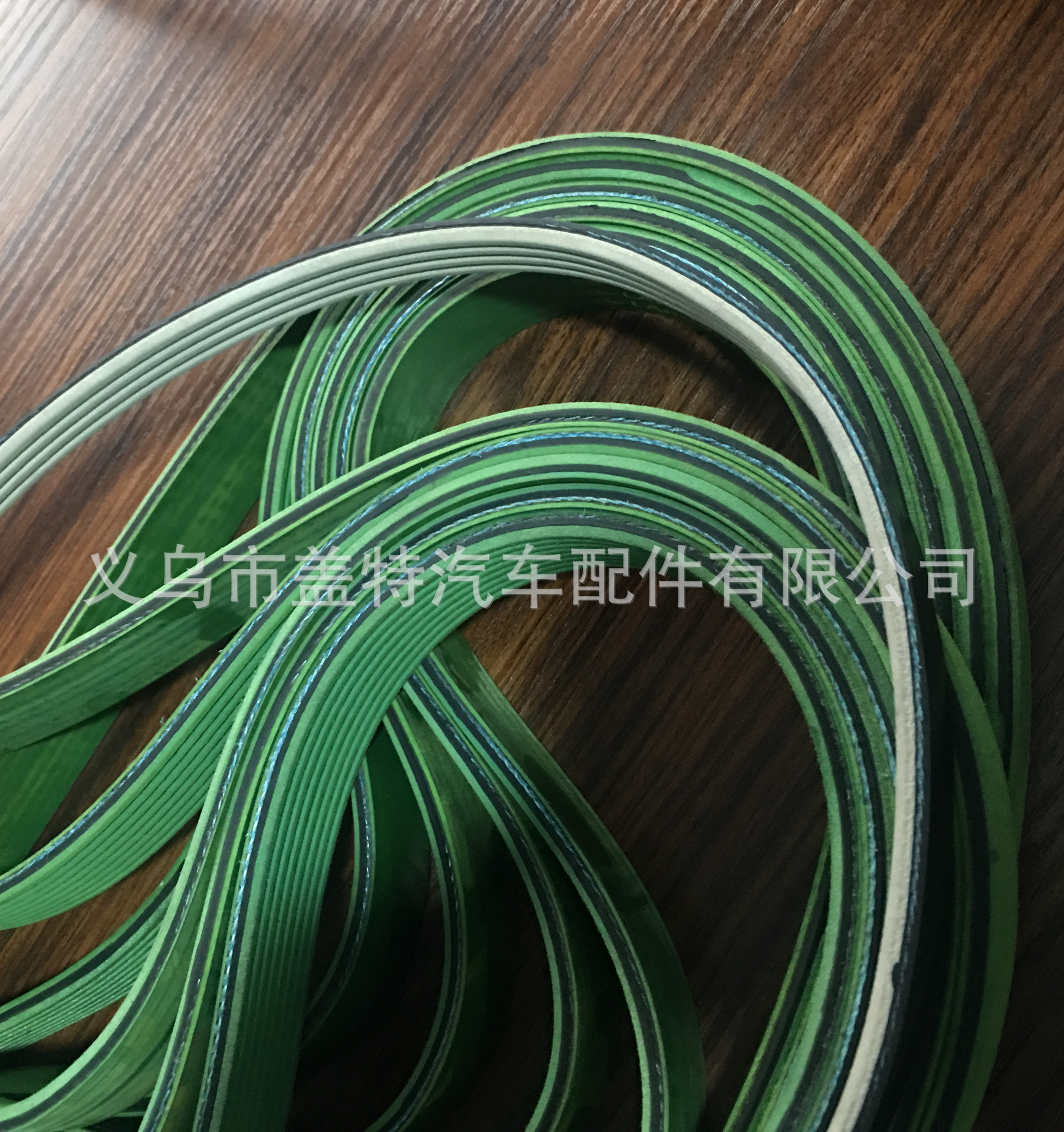

20190310 彩色pk带 (2)



R & d, production of various colors of multi - wedge belt, triangle belt.



Wedge beltStructure:
Serial number
The name of the
function
material
1
The top cloth
Protects the inner layer of the tensile body
Polyester/cotton canvas
2
Buffer rubber
To withstand and protect the adhesion of the tensile body
CR, EPDM
3
The tensile body
Core materials for delivering power
Polyester, nylon
4
At the end of the glue
Maintain the shape of the tape and improve the lateral pressure performance
CR, EPDM

Wedge beltCharacteristics of the
  • Band width and thin, excellent flexibility and flexibility
  • High transmission efficiency in high speed rotation, reverse deflection and small belt pulley
  • High tension and low elongation core adhesive is adopted to maintain even tension during operation
  • Excellent heat, oil and abrasion resistance
  • Less slippage and greater transmission effect during operation
  • Low noise during operation


Section size
model
Wedge distance (mm)
Wedge Angle (o)
With high (mm)
Wedge number
The length of the
PH
1.6
40
3
3-54
540-1270.
PJ
2.34
40
4
3-36
540-18880.
PK
3.56
40
4 to 6
3-23
600-2400.
PL
4.7
40
10
3-16
900-3000.
PM -
9.4
40
17
3-8 -
1500-3000.




Features of multi-wedge belt:
1. Rubber multi-wedge belt has both the advantages of v belt and flat belt, with both the soft and strong characteristics of flat belt and the advantages of compact and efficient v belt. The main features of multi-wedge belt are as follows:
Multi - wedge belt transmission power, space phase than the ordinary V belt transmission power of 30% higher.
2. The multi-wedge belt transmission system is compact in structure. Under the same transmission power, the space occupied by the transmission device is 25% smaller than that of the common V belt.
3. Multi-wedge belt with thin body, rich flexibility, suitable for small diameter belt wheel transmission, also suitable for high-speed transmission, belt speed up to 40m/s; Small vibration, less heat, smooth operation.
4. Multi-wedge belt is heat-resistant, oil-resistant, wear-resistant, with small service elongation and long service life.
