Item

Description

Packing

Product size

115x115x 22mm

Packaged weight

0.45kg

Loading for 20HQ

430 x 290 x 280mm

Product Color

Black

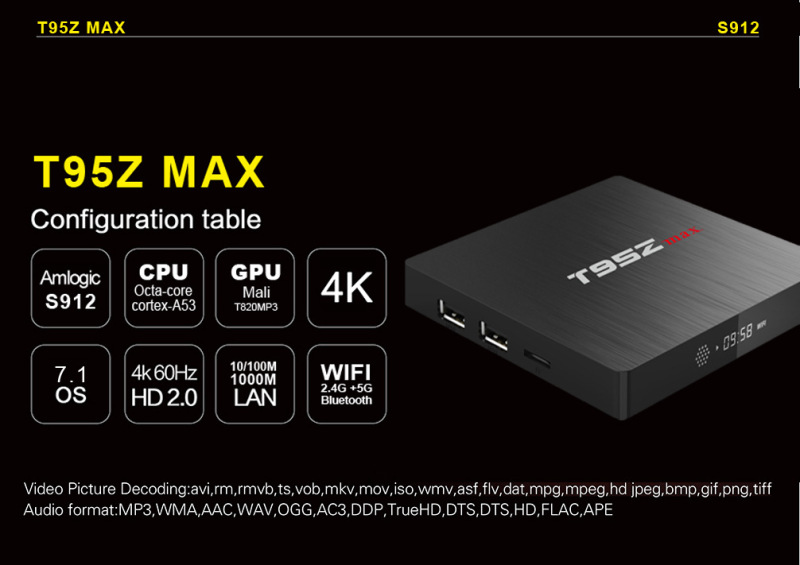

System Config

CPU

S912 Octa-core Cortex-A53 frequency: 2.0GHz

Graphics Processing Unit

Mali-T820MP3

FLASH

16/32GB

SDRAM

2/3GB

电源

电源

DC 5V/2A

Power Indicator (LED)

Power ON : blue/green/Grey-blue

Main Features

Case

Plastic material (Private model)

OS

Android 7.1

KODI

17.5

WIFI

2.4G + 5G + Bluetooth

3D

Hardware 3D graphics acceleration

Support Decoder format

VP9-10 Profile-2 up to 4Kx2K@60fps

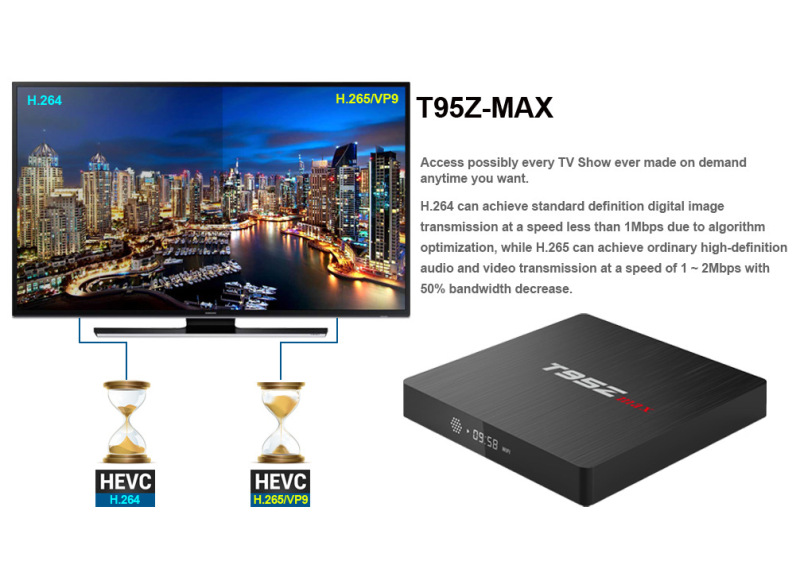

H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps

H.264 AVC HP@L5.1 up to 4Kx2K@30fps

"H.264 MVC up to 1080P @60fps

MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)

WMV/VC-1 SP/MP/AP up to 1080P@60fps

AVS-P16 (AVS+) / AVS-P2 Profile up to 1080P@60fps

MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)

MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)

RealVideo 8/9/10 up to 1080P@60fps

WebM up to VGA

Support for multiple language and multiple format subtitle videos

MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)

Supports JPEG thumbnail, scaling, rotation and transition effects

Supports *.mkv, *.wmv, *.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file

HD MPEG1/2/4, H.264, HD AVC/VC-1, RM/RMVB, Xvid/DivX3/4/5/6, RealVideo8/9/10

Supported Media Format

Avi/Rm/Rmvb/Ts/Vob/Mkv/Mov/ISO/Wmv/Asf/Flv/Dat/Mpg/Mpeg

Support Music format

MP3/WMA/AAC/WAV/OGG/AC3/DDP/TrueHD/DTS/DTS-HD/FLAC/APE

Support Photo format

HD JPEG/BMP/GIF/PNG/TIFF

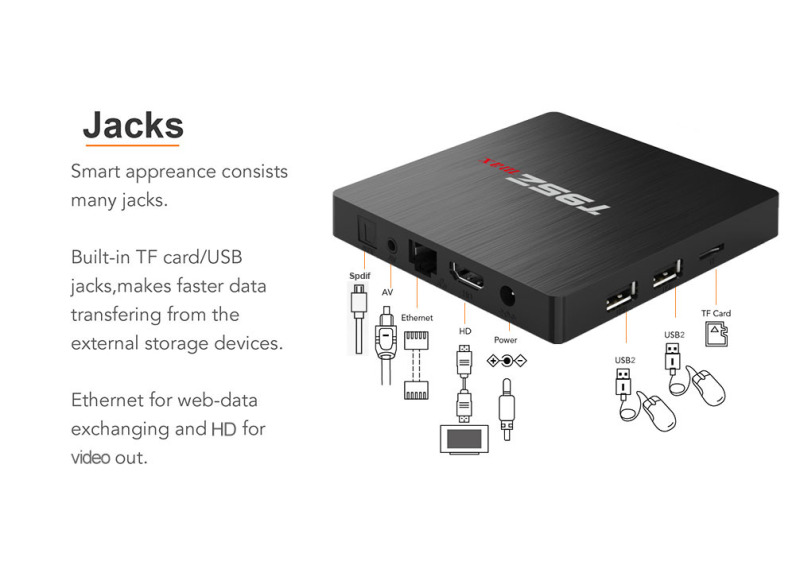

USB host

2 High speed USB 2.0 ports, supporting USB flash drives and USB hard drives

Card reader

SD/SDHC/MMC cards

HDD file system

FAT16/FAT32/NTFS

支持字幕

SRT/SMI/SUB/SSA/IDX+USB

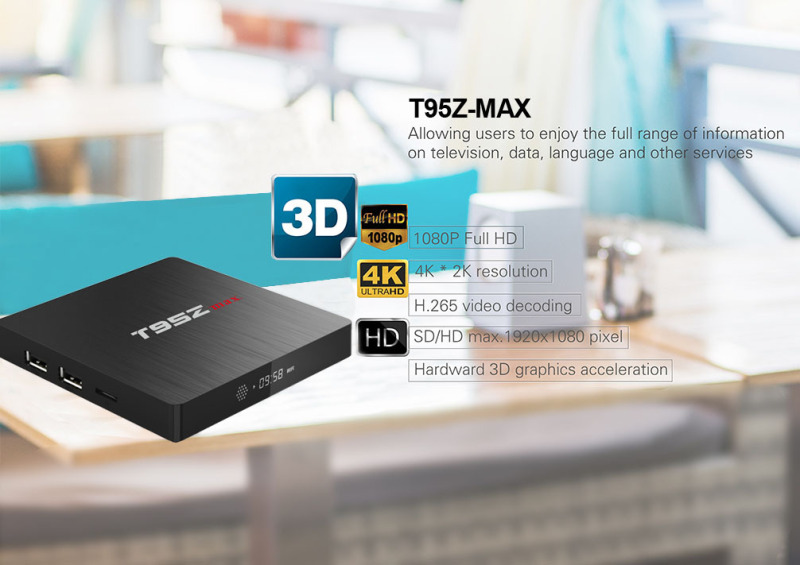

High Definition Video Output

SD/HD maximum 1920x1080 pixels

OSD-type languages

English/French/German/Spanish/Italian/ etc. Multilingual languages

LAN

Ethernet: Standard 10/100M/1000M, Gigabit RJ-45

Wireless

内置双频段WiFi

Mouse/ Keyboard

Support mouse and keyboard via USB; Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle

HDMI

HDMI 2.0 up to 4K@2K output with HDR, CEC and HDCP 2.2, 4Kx2K@60 max

resolution output

4K2K HD Decoding

4k2k H.265 Hardware Video Decode and 4k2k Output

1080P/AV/3G

Support

Dolby

Support

SPDIF/IEC958

Coaxial

Software Specifications

Network Function

Skype chatting, Picasa, YouTube, Flickr, Facebook, Online movies, etc.

Other feature

Free Internet searching, thousands of Android applications, and many kinds of games, etc.
