Solar Powered -Motion Activated Animal Repeller

谢谢您选择这款动物驱赶器。

Thank you for choosing to use this animal repeller.

Please read and understand these instructions and keep this manual for future reference.

Please read this instruction manual and save this user manual for future reference.

This repeller is designed for permanent service, allowing you to install it once and let it work!

This repellent design can be used after being installed once.

It is weather-proof, allowing it to work all year-round and in virtually all weather conditions.

Its weatherproof design allows the product to be used almost all year round in various weather conditions.

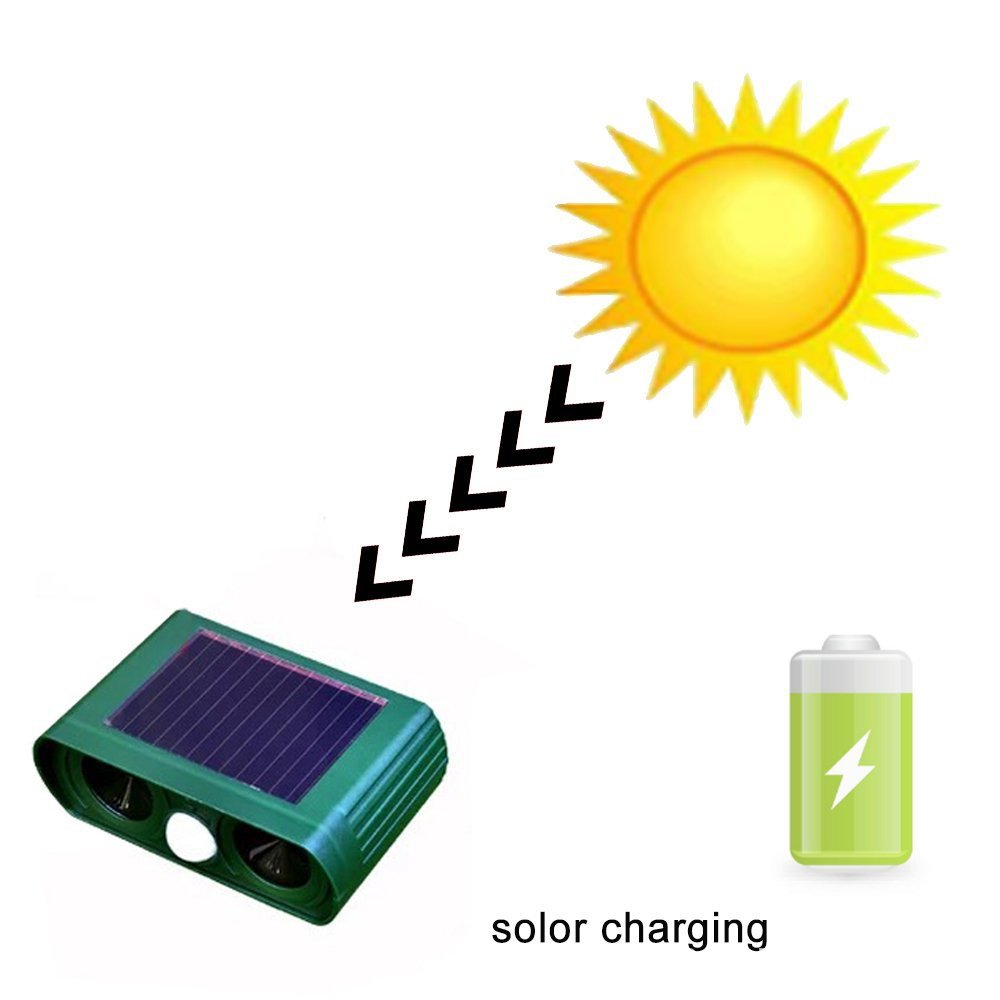

It uses solar power to recharge the batteries, so it is always working.

The product can maintain a continuous working state by charging the battery with solar energy.

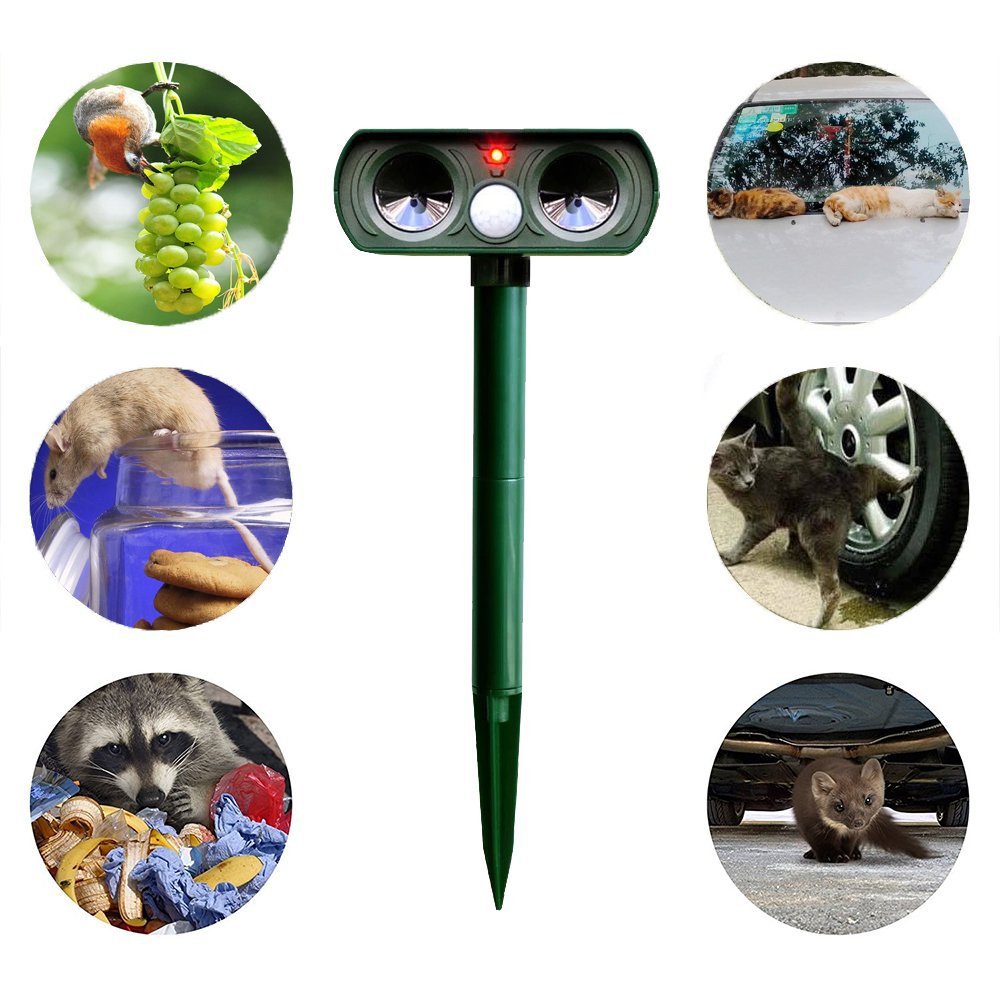

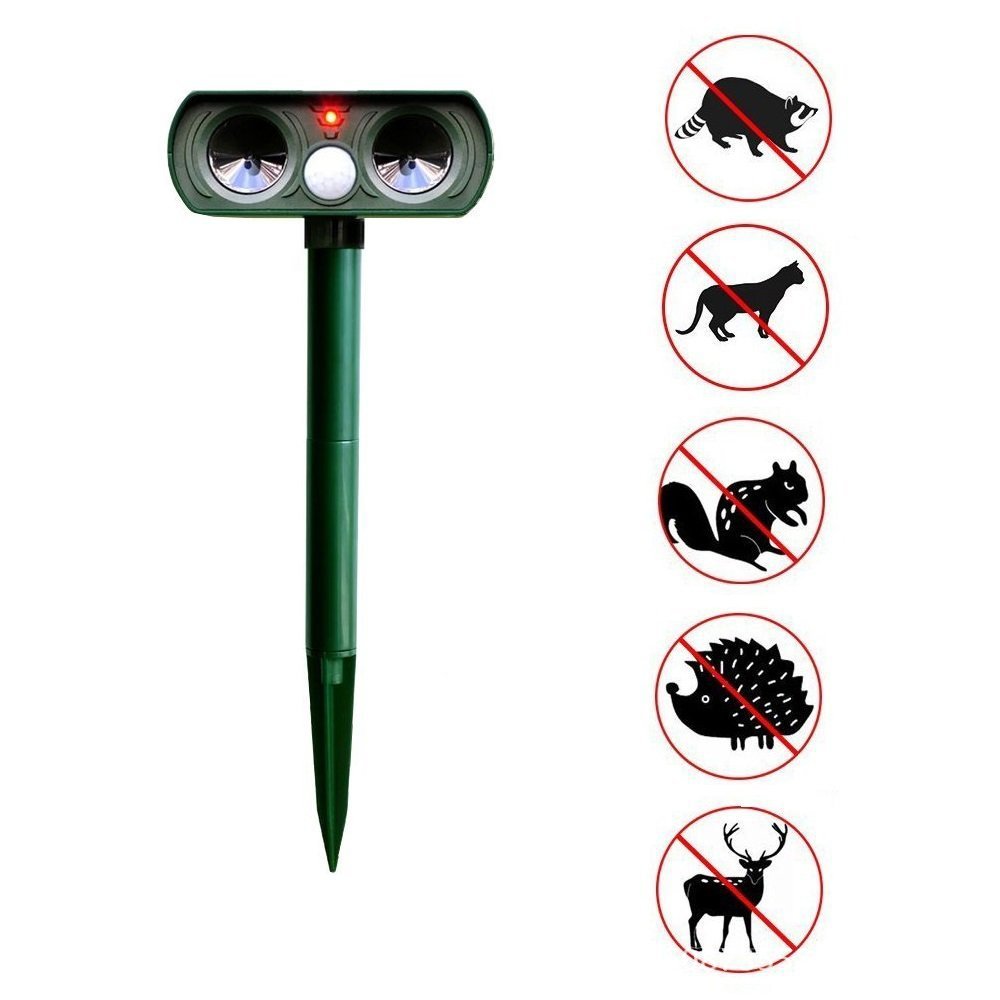

The Passive Infrared sensor (PIR) detects motion and triggers the ultrasonic speaker to emit a tone that people cannot hear but chases away common outdoor pests like dogs, cats, deer, raccoons, mice, skunks, squirrels and more.

Infrared sensors detect moving objects and trigger ultrasonic sound generation. The ultrasonic sound emitted is inaudible to humans, but animals such as dogs, cats, deer, raccoons, mice, skunks, and squirrels, which are typically found outdoors, will be able to hear this type of ultrasonic sound and be driven away.

This solar animal repeller is a safe and humane way to keep unwanted animals away!

This solar-powered animal repeller uses a safe and compassionate approach to keep animals away from you if you don't like them.

WARNING! Always check for underground utilities, cables or wires before digging or installing! Failure to check could result in personal injury, property damage or even death.

Warning: Before digging a hole for installation, please check for underground utilities such as cables, wires, etc. If you do not check, there is a possibility of causing personal injury, property damage, or even death.

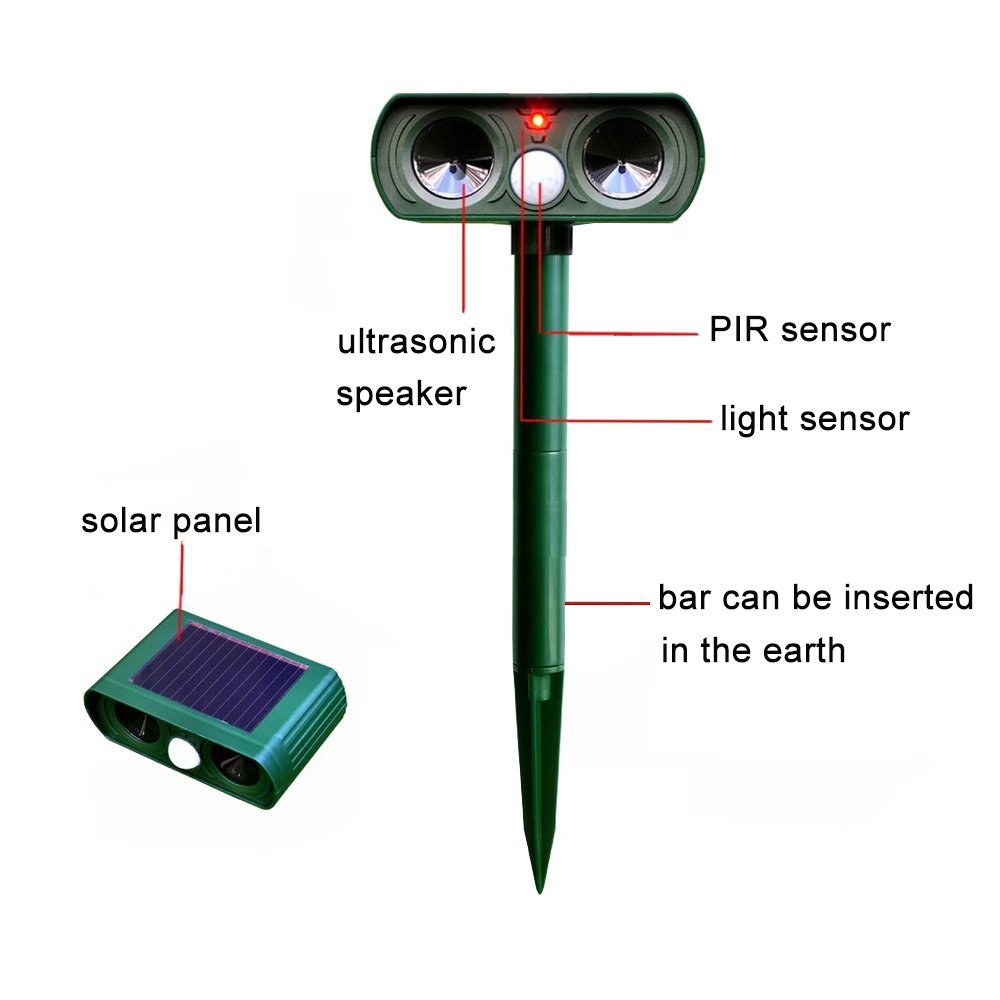

Parts and Features: Components and Functions

To Assemble and lnstall:

Assembly and Installation

1. Unpack the unit completely and confirm that parts are present, SEE FIGURES 1-3 above.

All parts not packaged together are bonuses. Please check the above picture from 1-3.

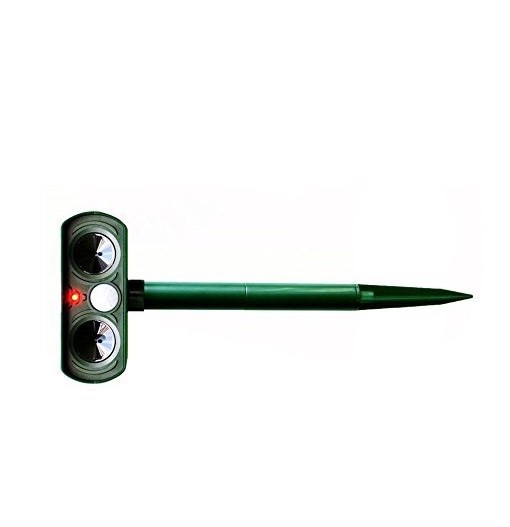

2. Connect the repeller head, pole sections, connecting part, and groundstake. See Figure 1-3 above.

Connect the head, electrode portion, and ground stand, as shown in Figure 1-3.

3. Turn the power switch to the 'ON' position. See Figure 2.

Move the switch to the position 'ON', as shown in Figure 2.

4. The PIR repeller is designed to be left ON continuously. It uses four 2/3 AA size NI-MH rechargeable batteries.

After turning on the switch, the infrared sensor will remain in a constant working state. The product is powered by 4 AA-size 2/3 NiMH rechargeable batteries.

5. Once turned ON, the red-LED light and ultrasonic signal will activate for 15 seconds. During this time, there are sound waves for 2.5 seconds at the beginning. At the same time, the white-LED lights flash blasting. Following this activation,

The unit will move to standby mode.

   When the switch is turned on, the red light will illuminate, and the ultrasonic signal will operate for 15 seconds. During this time, a sound wave of 2.5 seconds duration will be generated. After 15 seconds, the product will enter a standby state.

6. The unit is now ready for installation. The location should allow adequate sunlight to keep the batteries fully charged. Be sure that the area needing protection is within the effective range of the repeller (SEE FIGURE 2).

The product can now begin installation. The installation location should be able to receive ample sunlight to allow the battery to fully charge. Please ensure that the areas that need protection are within the effective range of the repeller, and refer to Figure 2.

7. For best results, keep the repeller head roughly 9-10 inches above ground.

To achieve the desired effect, please keep the head of the repeller at a height of 9-10 inches above the ground.

8. Do not apply excessive force when installing the repeller in hard ground. It is recommended to prepare the ground for the ground stake to avoid damage to the unit.

When installing on a hard surface, please be careful not to squeeze or damage this drive. After leveling the ground, install the ground support to avoid damage to the product.

9.当PIR传感器检测到运动，红色LED灯将亮起，超声波信号和白色LED灯将运行15秒。随后，驱虫器将返回待机模式。

When the infrared sensor detects a signal, the red light will turn on. Ultrasound will be emitted, and then, the repeller will return to the standby state.

10.当设备正在工作时，如果PIR传感器检测到运动，设备将在下一次运行15秒。

When the device is operating and the external red sensor detects a signal again, the repeller will continue to run for 15 seconds.

Specifications:规格

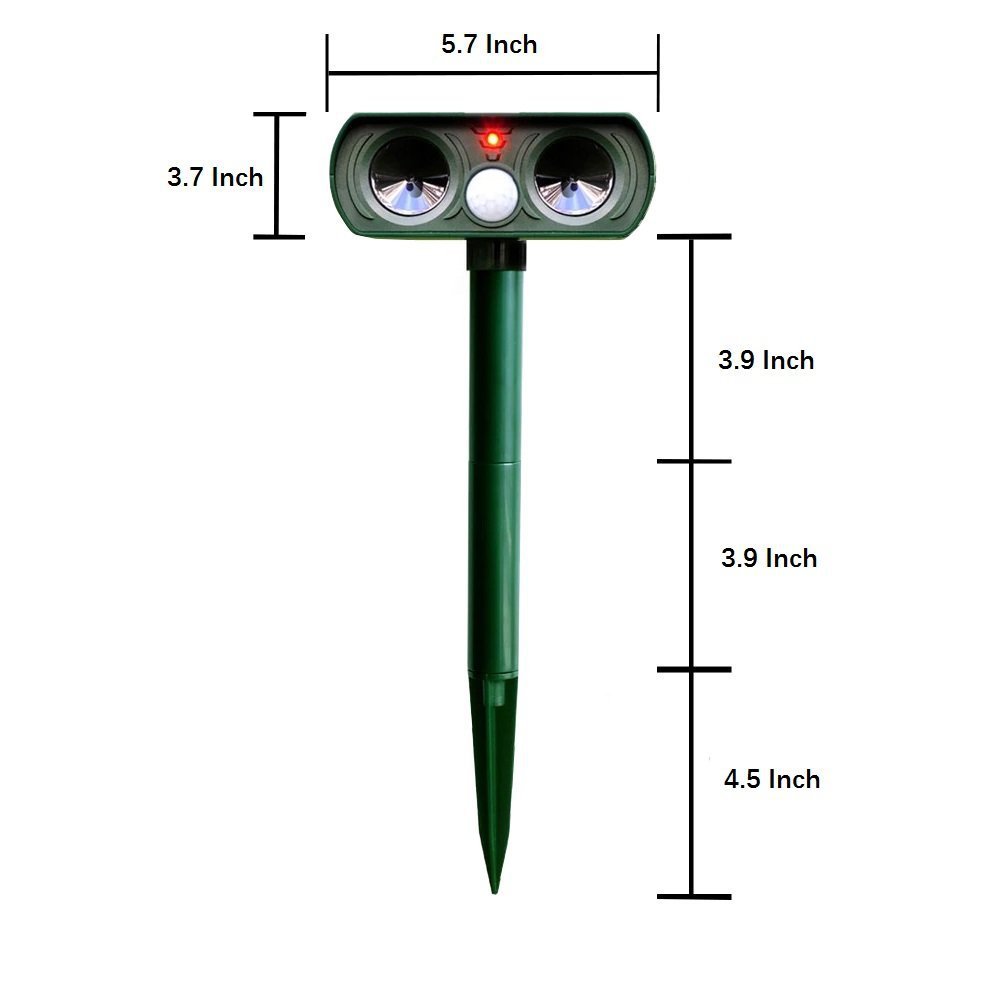

1. Unit Dimensions: Product Size 5-1/2" W × 3-1/2" D × 14-1/3" h

2.Unit Weight: Product Weight 8-1/2 ounces.

3. Power Supply: 4*2/3AA Ni-MH rechargeable batteries.

4. Power Consumption: Operating=15mA, Standby≤10uA

5. Ultrasonic Frequency: Ultrasound Frequency 25-61KHZ

6. Coverage Area: 30 feet @ 1100 = 2,425 square feet
