Connector: T10 port, spring double-point connector (The above prices do not include connectors. If you need to add connectors, please add the link).

Product Name: 3-core 5050 18SMD SMD Car Light Board

 Color: White/Ice Blue (Support custom colors)

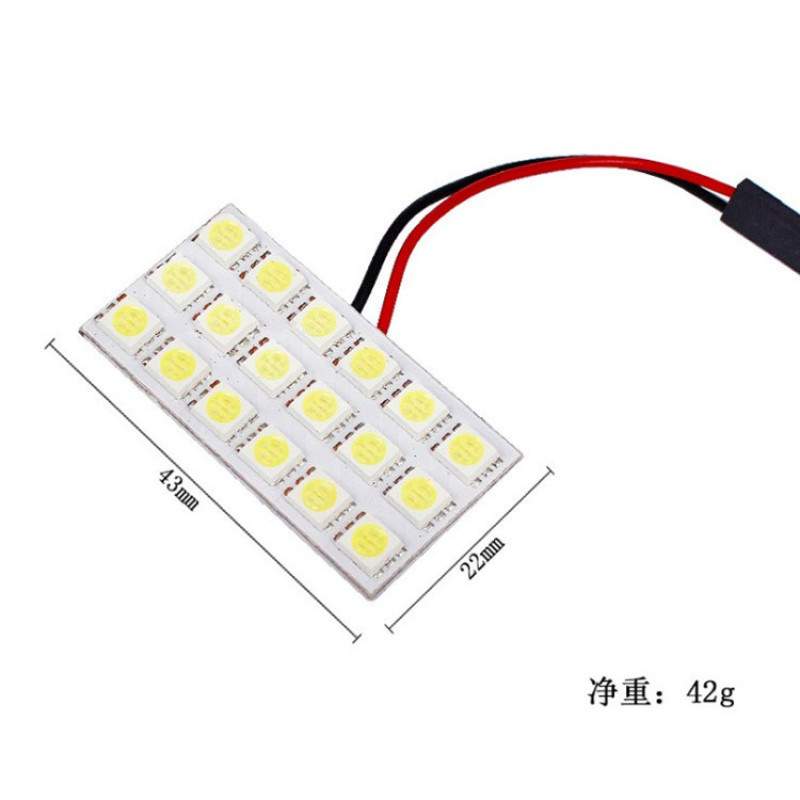

6SMD, length 2.2*width 1.5CM (small)

Voltage: 12V DC (which is the output voltage of a typical car)

Support customizing 24V

Usage: Reading light, roof light, trunk light, room light, etc.

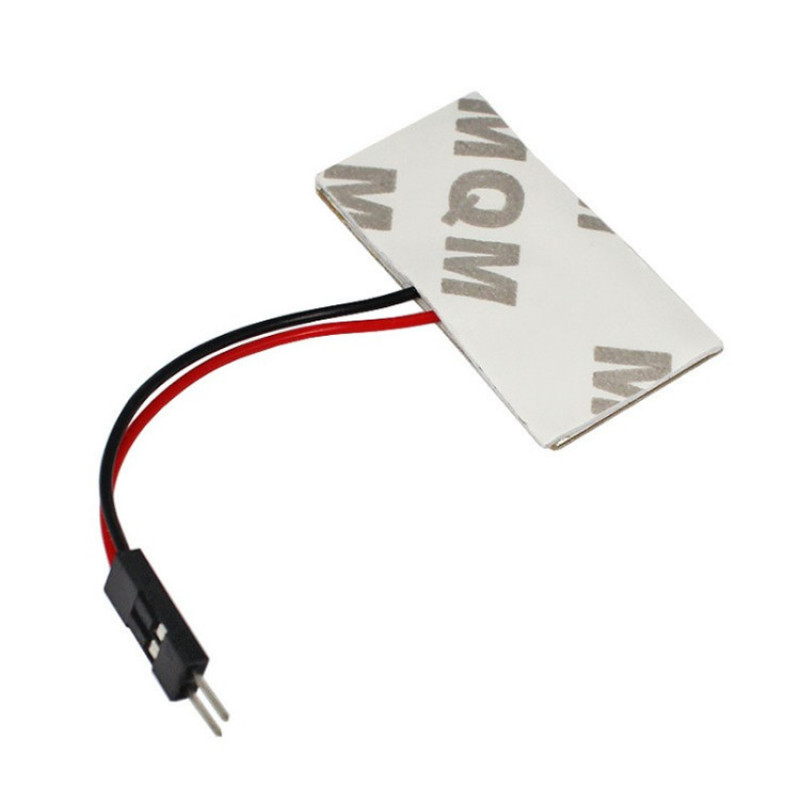

Instructions: The back of the product is equipped with 3M adhesive tape for easy attachment (to prevent the light board from moving within the lamp shade).

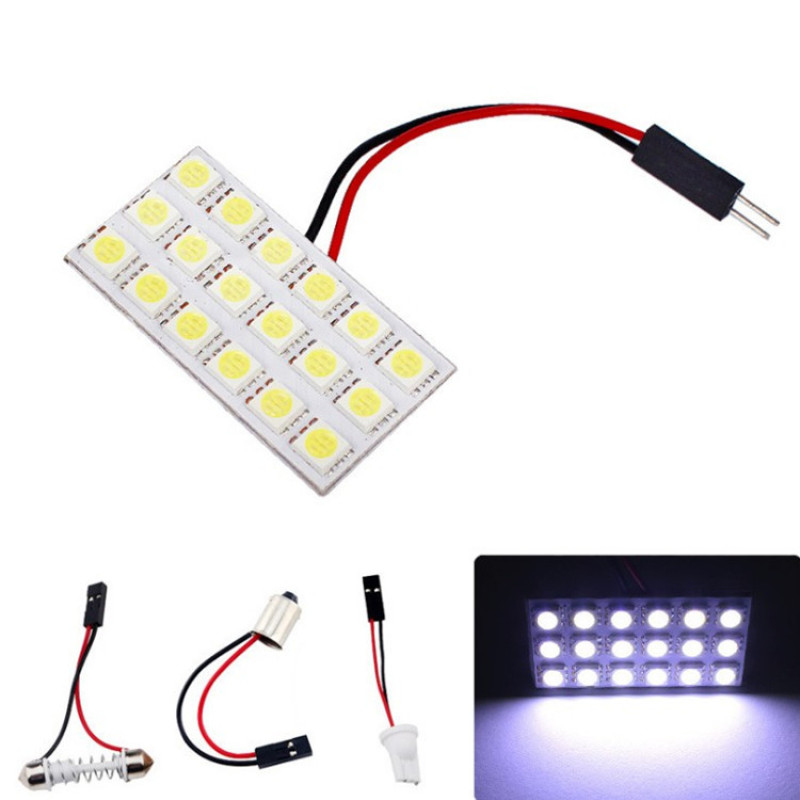

Connector Selection: T10 Port, Double-Pointed Connector, BA9S Lens Mount

Introduction to Joint Size

Double-point, diameter: 8.5mm, length: 31mm-41mm
BA9S diameter: 9mm
T10 Diameter: 9mm

Installation:

1. The diameter is the same as that of traditional bulbs, and it can be directly replaced with traditional bulbs without the need for modification of the wiring.
2. Refer to the product's dimensions when installing to ensure there is enough space for the installation location. Gently press the product, and do not squeeze the LED chips to avoid damage.
3. Not suitable for 24V large trucks and buses. Please carefully check before installation!

Performance: 1. Energy saving: It is 1/10 of the energy consumption of traditional halogen lamps, which can better protect the car's electrical circuit.
2. Long service life: The service life is 30000-50000 hours.

Features:
1. Adopts 3-core 5050SMD LED chips, with low power consumption, high brightness, and energy-saving and environmental protection.
Model is consistent with the original car, no need to replace any wiring when installing, directly replace the old glass bulb, equipped with 3 types of interfaces, suitable for most car models.
3. Turn on with no delay.
4. Eco-friendly and green light sources, comfortable and convenient.

5. High brightness, strong anti-vibration, low temperature rise, it is the new generation of solid-state light source.
