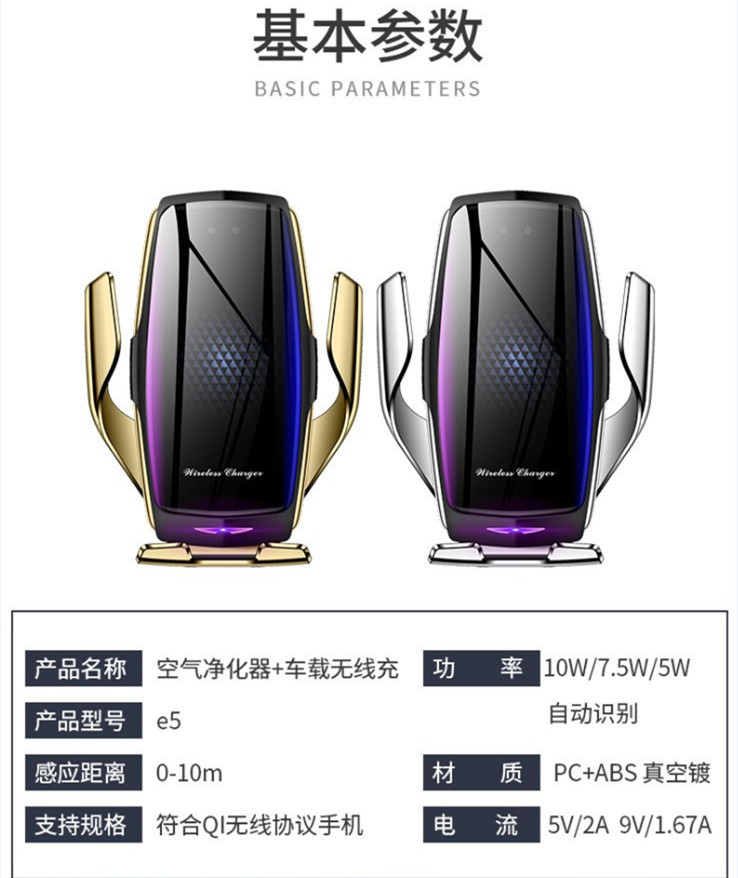

Description of on-board wireless charging function
A, the voltage

Input voltage and current MAX: 12V1.56a / 9v2.1a /5V2.1A;

Output voltage and current: 9v1.67A / 5V1.0a;

(iPhone) Input voltage and current MAX: 12V1A/5V1.55A

(iPhone) Output voltage current: 9V1.0a /5V1A

The output power is 10W

The weight of 150 g

Ii. Function Description:

Overvoltage protection 13.8V, overload protection 12V1.8A/5V2A, overtemperature protection 65 ℃, FOD with load (no load);

Apple 8 full time from 0 to 100% :(below 25 degrees Celsius) 2 hours 40 minutes;

Samsung NoTe8 full time from 0 to 100% :(below 25 degrees Celsius) 3 hours and 30 minutes;

Wing opening and closing time: 2S;

The pause time between wing opening and closing is 1.2s;

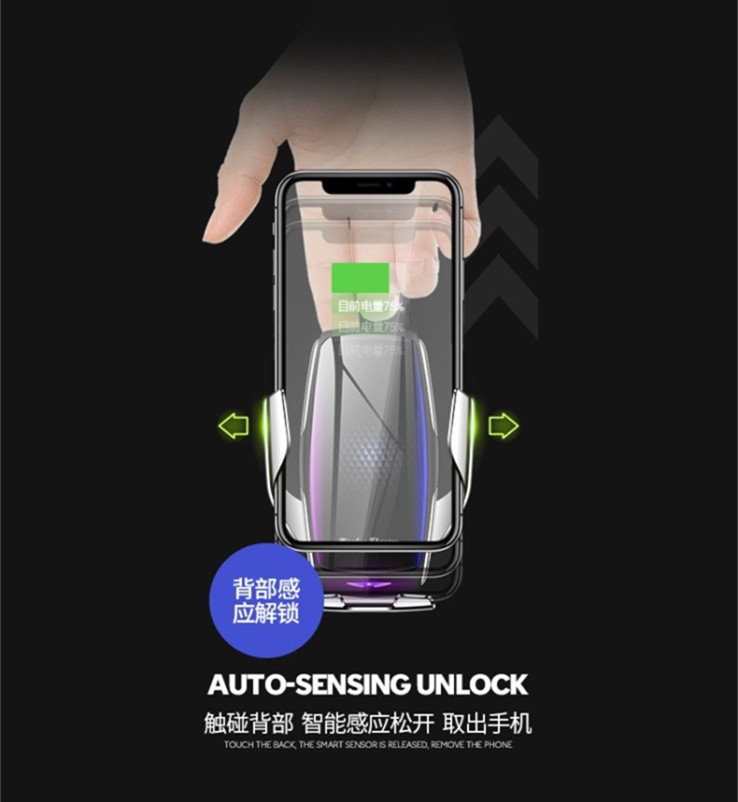

The touch switch can only be started if the contact between the hand and the switch stops for 0.5S.

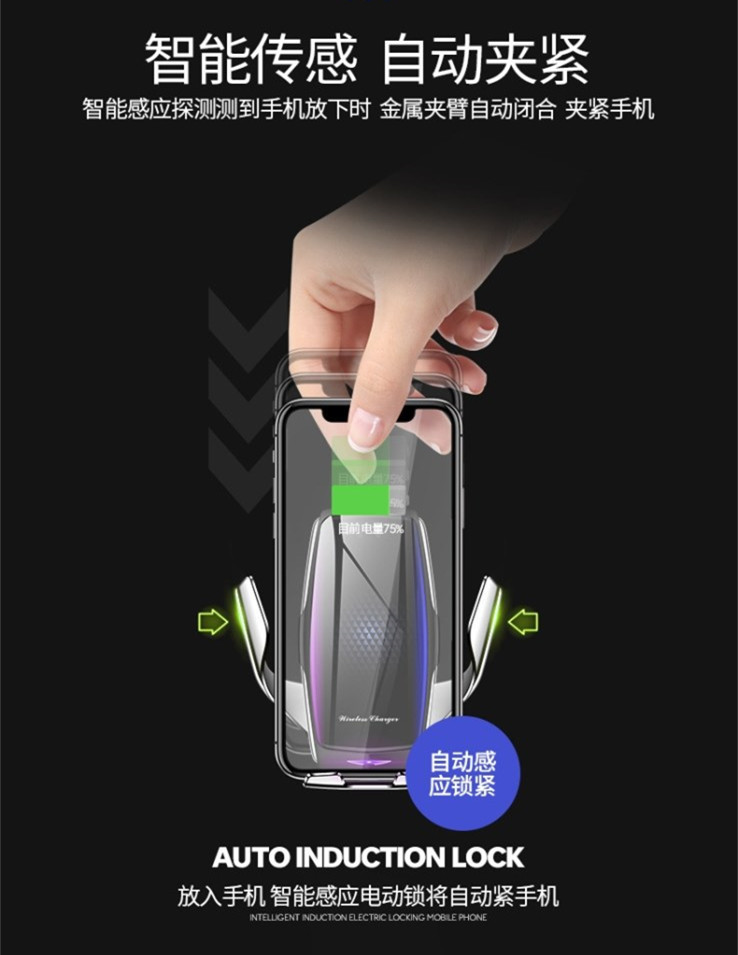

Infrared sensing distance :(light-absorbing black) about 21mm, (reflective white) about 150mm;
