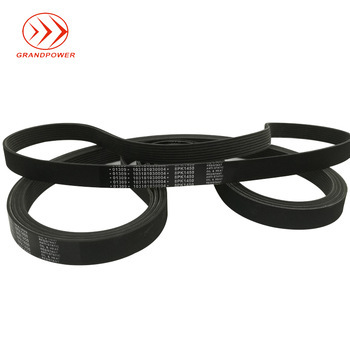

Rubber v-ribbed belt 10pk1535 for trucks

QR code0

[Scan the QR code, view in your mobilephone.]

Updated: 2022-05-02 17:49

EXW Price:

100Pieces ~499Pieces		CN ￥ 16.1 /Pieces
Above 500Pieces		CN ￥ 15.75 /Pieces

Send Inquiry

Contact

Yiwu Grand Auto Parts Co.,Ltd. 13yr.
Main Products:	Timing belt,PK belt,Ribbed belt,V belt,Wrapped/Cogged belt,oil seal,Diaphragm,Brake pad,Joint ,Gasket
Contacts:	黄建平Chat
Mobile:	86-008657981069313
E-mail:	info@chngrand.com
WeChat:	13586963969
Address:	69306 , 12 Street, 4 F, 112 Gate, International Trade Mart (District 5).

Click To Contact Yiwugo's Partner To Get Trade Service

Description

Other Products more >>

Overview

Quick Details

Applicable Industries:: Truck

Standard or Nonstandard:: Standard

Type:: Ribbed Belt

Material:: Rubber, CR,EPDM

Place of Origin:: Zhejiang, China

Brand Name:: Grandpower

Name:: Rubber v-ribbed belt 10pk1535 for trucks

Heat resistance:: -40°C-140°C

Linear speed:: 30M/s

Application:: For Volvo Truck

Size/OEM No.:: 10pk1535

Surface:: smooth / rough

Teeth height:: 3.5mm

belt height:: 5.7mm

Payment:: Trade Assurence,TT,Western Union

Packaging & Delivery

Selling Units:: Single item

Single package size:: 55X38X26 cm

Single gross weight:: 27.0 kg

Package Type:: box,bag,card,and so on...

Picture Example:

Lead Time :

Quantity(Pieces)	1 - 1000	>1000
Est. Time(days)	15	To be negotiated

Product Description

Rubber V-ribbed belt is the combination of merits of both V belt and flat belt. It got not only the soft and tenacious features of flat belt but also has compact and high efficient merits of V belt.

_02 _03 _04

No.	Name	Function	Material
1	Top Fabric	Protect the lining tensile member	Polyester Cotton Canvas
2	Buffer Rubber	Suport adn protect the adhesive force of the tensile member	CR, EPDM
3	Tensile Member	Critical material to pass the dynamic force	Polyester, Nylon
4	Bottom Rubber	Maintain the shape of the rubber and improve its side compression performance	CR, EPDM

Feature
Wide breadth but thin belt, excellent elastic and flexural property High transmission efficeincy under the operating environment of high-speed rotation, reverse flexure, small band pulley, etc. Core rubber with high tension and low elongation, while the consistent tension is maintained during the process of operation Excellent heat-resistance, oil-proof, and wearing resistance Less slip while large transmission effect during the process of operation Less noise during the process of operation

Feature

Wide breadth but thin belt, excellent elastic and flexural property
High transmission efficeincy under the operating environment of high-speed rotation, reverse flexure, small band pulley, etc.
Core rubber with high tension and low elongation, while the consistent tension is maintained during the process of operation
Excellent heat-resistance, oil-proof, and wearing resistance
Less slip while large transmission effect during the process of operation
Less noise during the process of operation

Size of Section

Size of Section

Type	Ribsection(mm)	Angle of rib(^o)	Belt Thickness(mm)	Rib Numbers	Length range
PH	1.6	40	3	3-54	540-1270
PJ	2.34	40	4	3-36	540-18880
PK	3.56	40	4-6	3-23	600-2400
PL	4.7	40	10	3-16	900-3000
PM	9.4	40	17	3-8	1500-3000

_05 _06 _07
