Chapter 1: Basic Characteristics

Product Name: Thermal Sensitive Bluetooth Receipt Printer

Model: POS-5802-LN

Suitable for mobile products and suitable for outdoor working environments.

The product features small volume, light weight, reliable performance, simple connection, and convenience of use.

The main application scope includes: mobile police systems, tobacco distribution systems, utility meter reading systems, mobile office/mobile logistics systems, portable instrument/testing equipment accessories.

Operating cost is low (no need for toner or ink cartridges).

Weight: About 400g (Includes accessories: Lithium battery, data cable, test paper)
Dimensions (L*W*H): 103.5*78*45.5mm

Chapter 2:Performance Parameters
Print Mode: Line Thermal Printing
Print speed > 90mm/s
Print head life: 100km
Resolution: 203dpi (8 dots/mm)
Effective print width: 48mm (384 dots)
Available paper width: 58±01mm
Paper bin capacity diameter φ ≤ 40mm
Paper type thermal paper
Power supply (optional): rechargeable lithium battery
Battery Specification: Lithium Battery: 7.4VDC/1500mA
Charging Method: External Charger 9V/1.5A
Language: Supports multiple languages

Printing parameters: Supports downloading and printing the company logo.

Character size:

384 points/line
Font A: 12 * 24 points, 1.5 (width) * 3.0 (height) mm
FontB: 9 * 17 points, 1.1 (width) * 2.1 (height) mm
Simplified/Traditional Chinese: 24*24 dots, 3.0(width) * 3.0(height) mm

Character Chinese: The national standard I. Second-level Hanzi library 24x24 points supports the 18030 large character library, supports traditional Chinese in Taiwan and Hong Kong.

"Western: ANK character

Extended Character Set: OEM437/Katakana/OEM850/OEM860/OEM863/OEM865/West Europe/

Greek/Hebrew/East

Europe/Iran/WPC1252/OEM866/OEM852/OEM858/IranII/Latvian/Arabic/PT151,1251/OEM747/WPC1257/Vietnam/OEM864/Hebrew/WPC1255/Thai

Command Simulation: Compatible with ESC/POS/STAR command set

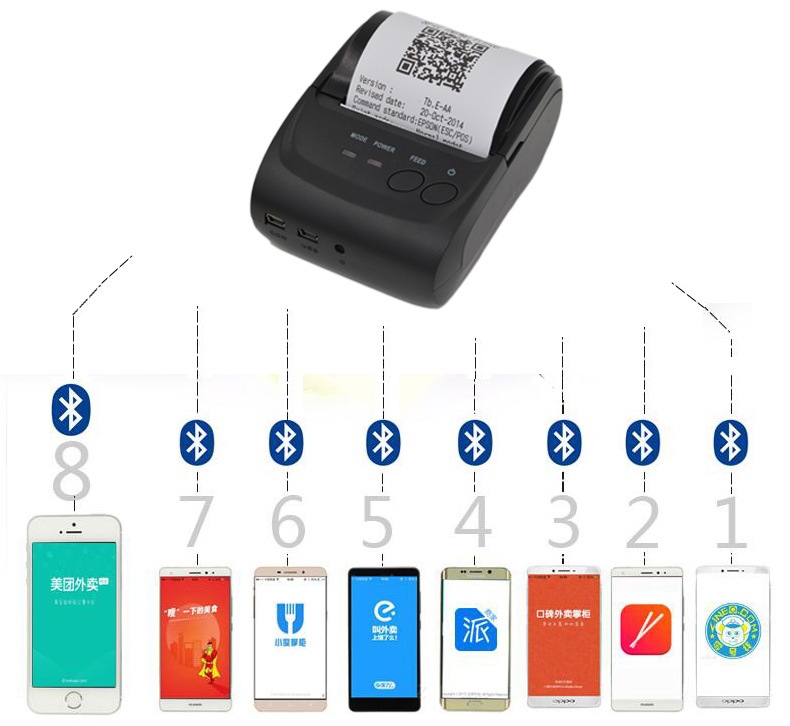

Communication Interface: Standard RS232/USB interface, Bluetooth 2.0/SPP protocol or infrared/IRCOMM protocol optional.
Operating environment: -10～50℃ (Temperature), 10～90% (Humidity)
