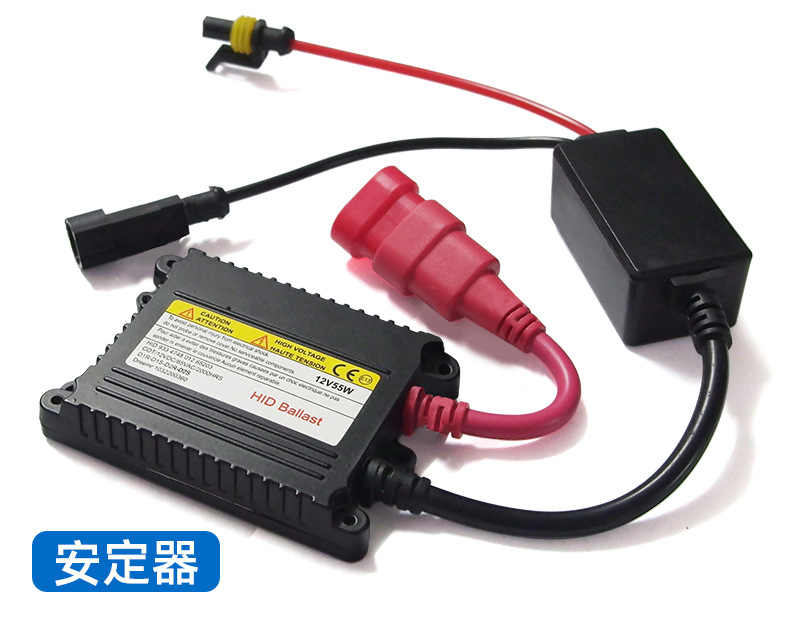

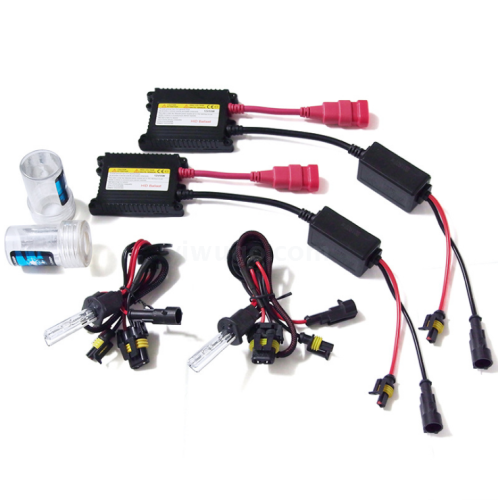

car hid xenon headlight h1 set super bright headlamp 35w ballast hernia lamp dc

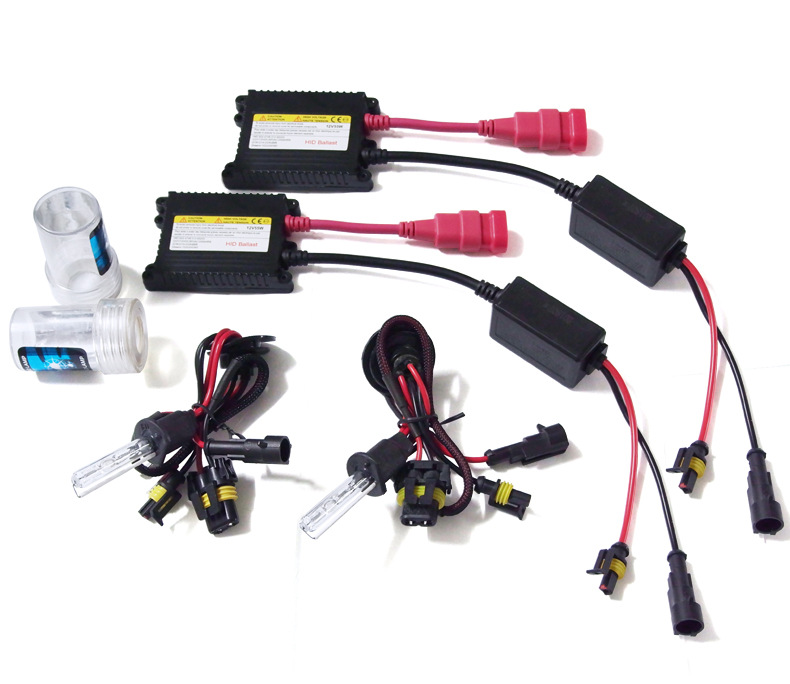

【Product Name】: Automotive HID Xenon Headlights

【Power】: 35W/55W

【Voltage]: DC 12V

[t_LUMEN]: 8000~10000 LM

【Lifespan】: 5000 hours

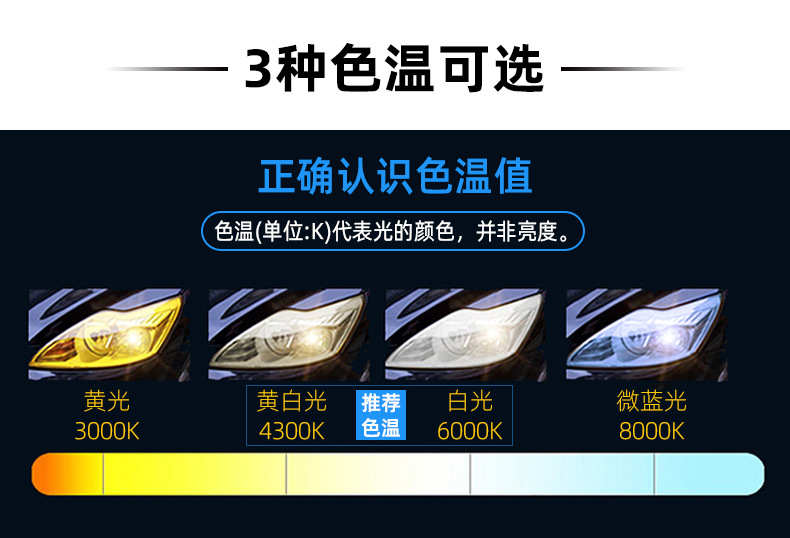

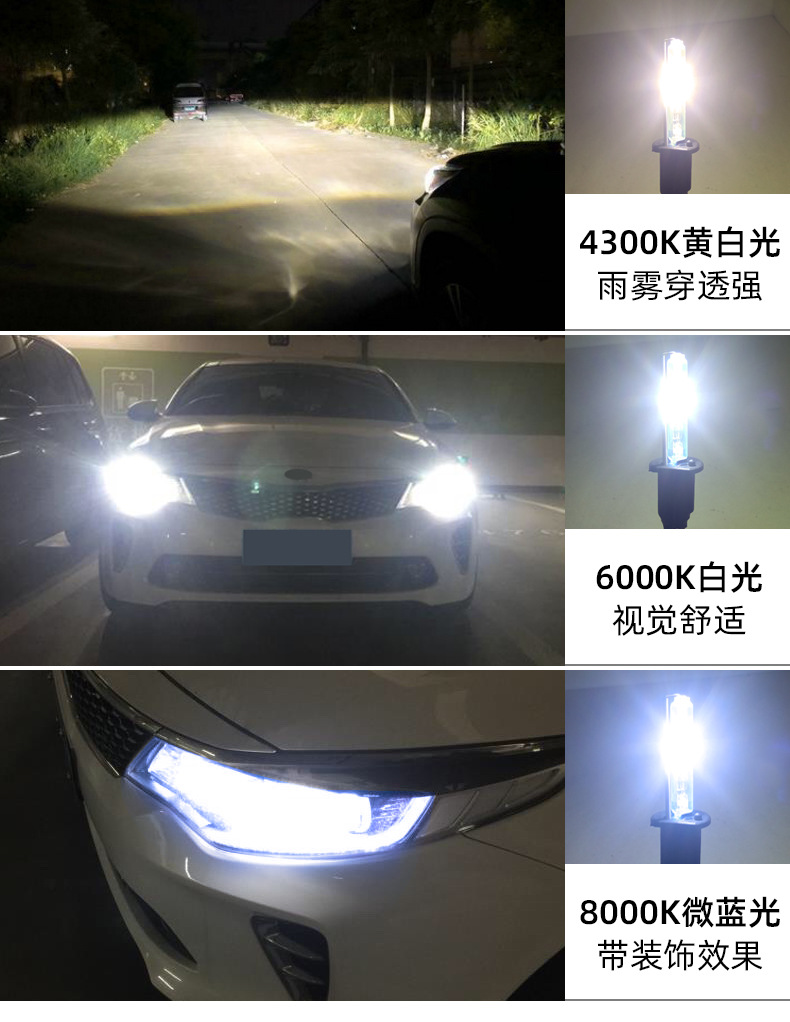

【Color Temperature】: 3000K~12000K

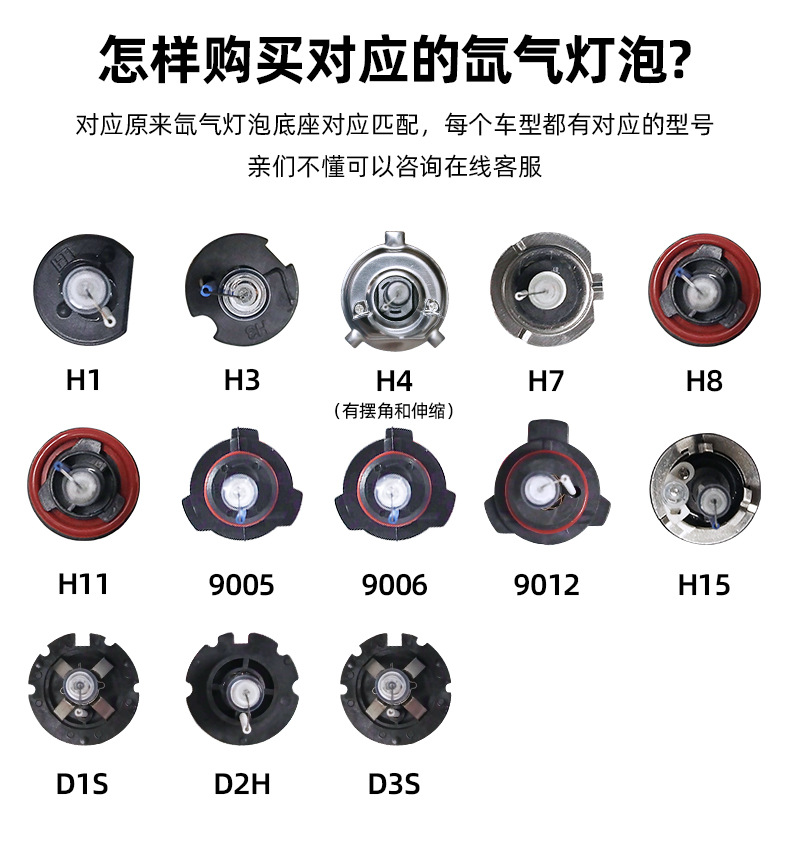

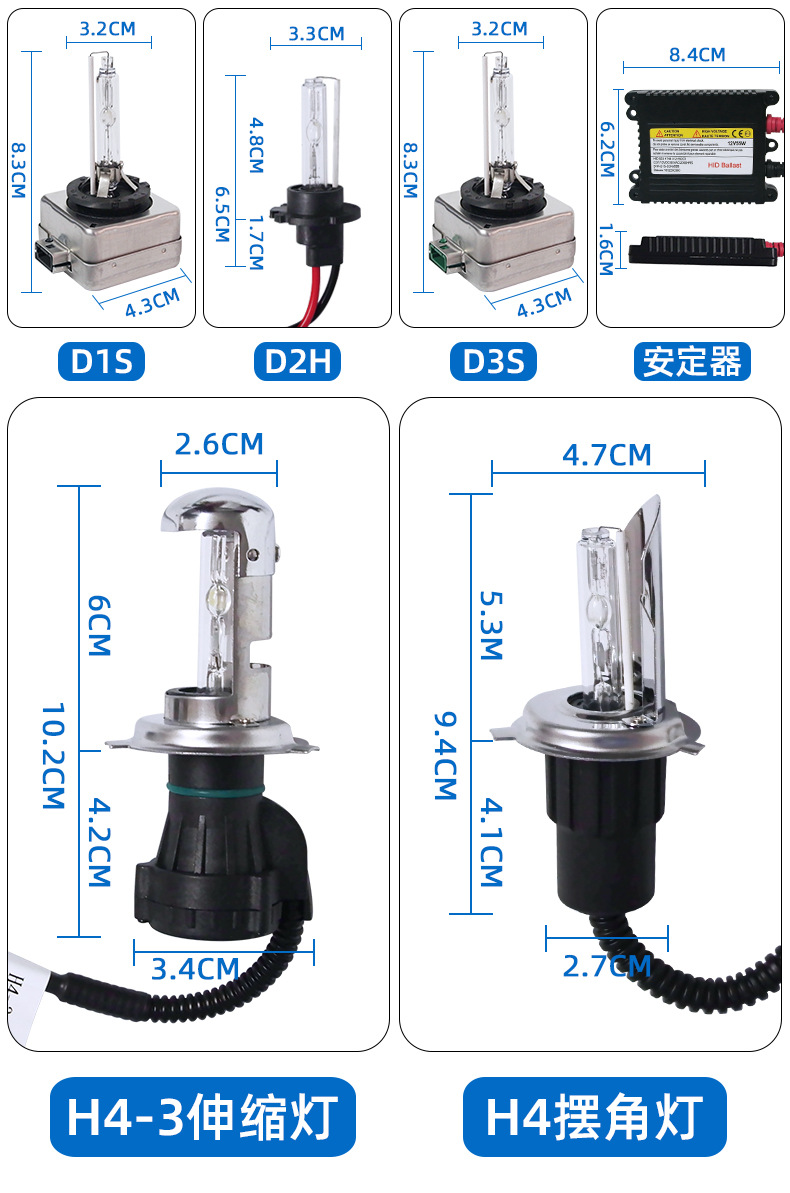

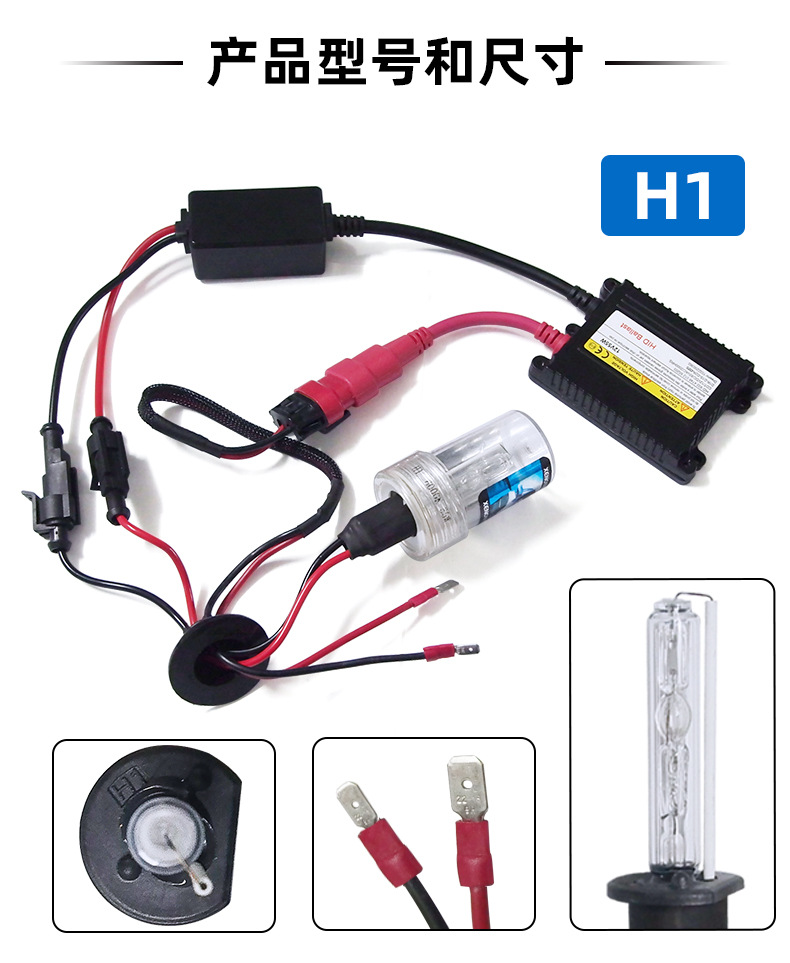

【Model Numbers]: H1, H3, H7, H8/9/11, H10, 9005 HB3, 9006 HB4, 880/881 H13, 9004, 9007…

【Weight]: Please refer to the details or contact customer service

Product Features

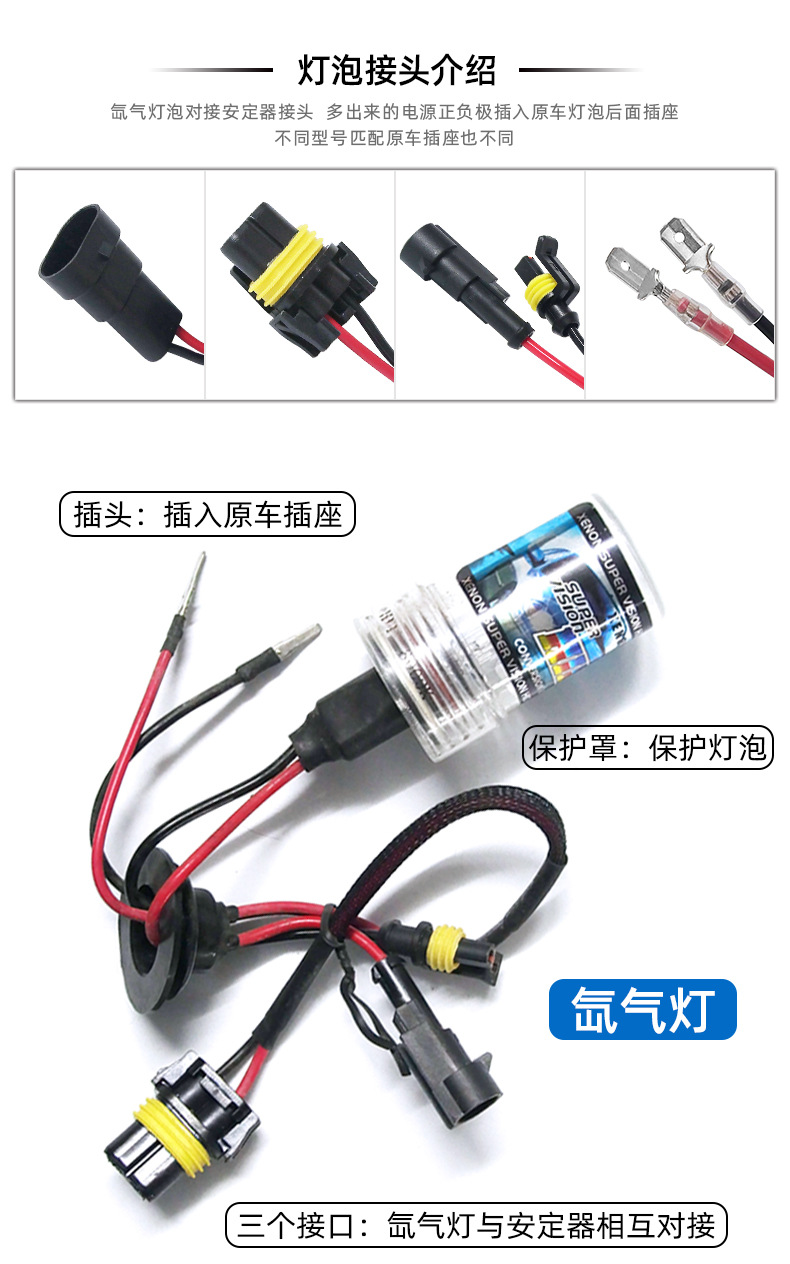

1. Wire: Temperature and high-pressure resistant silicone flame-retardant wire;

2. Outer cover glass: UV-CAT anti-ultraviolet quartz glass;

3. Emission method: Xenon gas collides with each other to produce arc light.

4. Electrical parameters: The voltage for the 35W product lamp tube is guaranteed to be within 85±12V.

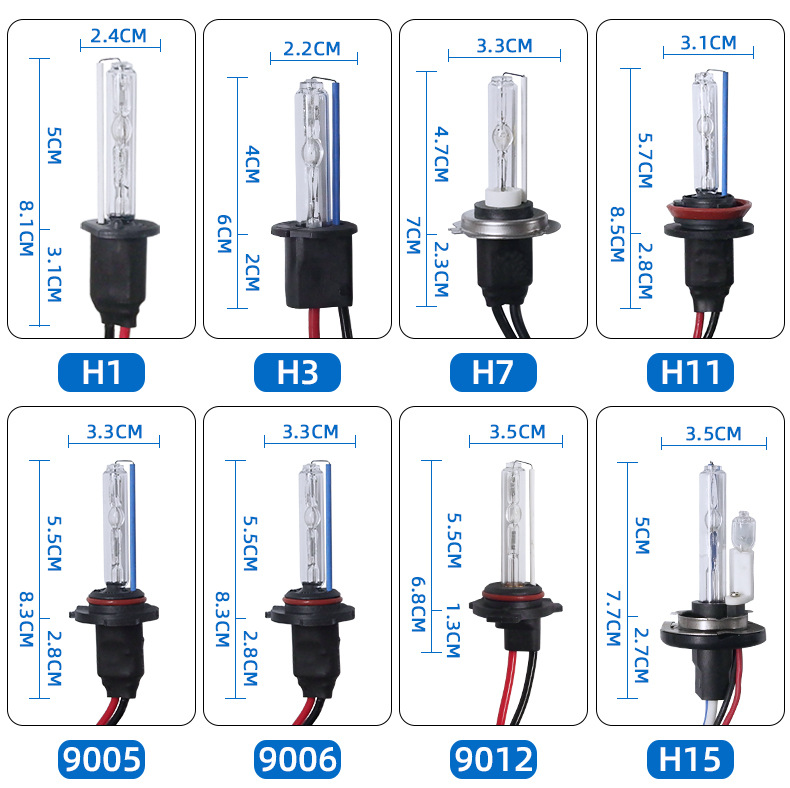

5. Size: The 35W outer casing has a maximum outer diameter of 8.8mm, which meets the requirements for all modifications of the same model.

6. After startup, the increase curve of light flux shall be: at 1 second, the light flux shall reach at least 30% of its rated light flux; at 3 seconds, the light flux shall reach at least 80% of its rated light flux.

7. Warm start performance: After 1 second, the light flux of the bulb should reach at least 80% of its rated light flux.

8. Ultraviolet radiation: The ultraviolet radiation is 10% lower than that of arc tubes.

9. Light output retention rate: After 225 hours at the burn point, the light output retention rate must be at least 80% of the initial light output.
