Main Technical Specifications

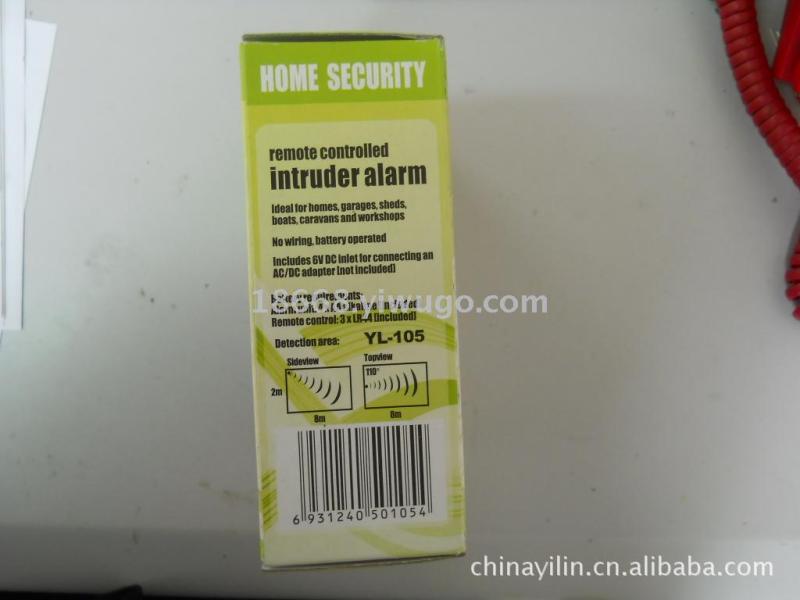

Detection range: distance 4-5 meters, angle 100 degrees
Working Voltage: AC 220V (with built-in adapter), DC 6V (can be equipped with 4 AA batteries).
Remote control range: 4-5 meters
Alarm Sound Level: 105dB (decibels) Measured at 30cm

Product features:
1. Infrared detection and alarm

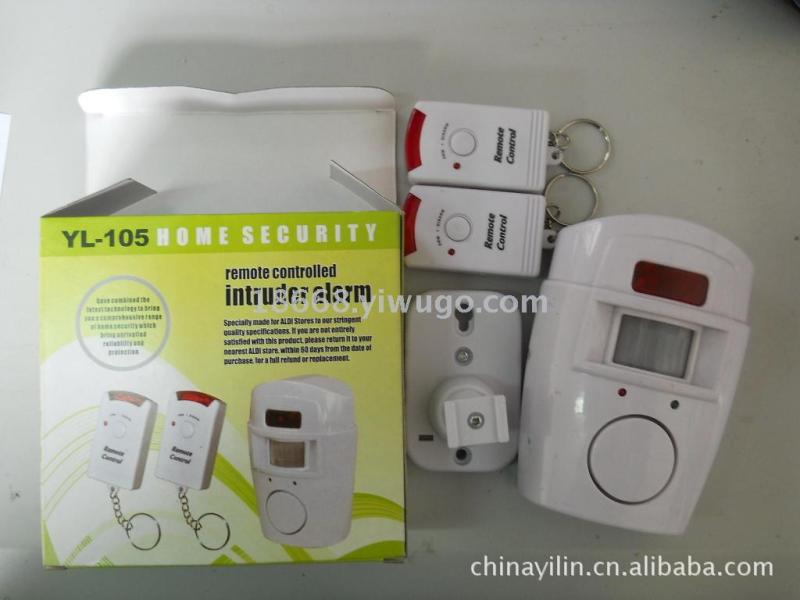

2. Infrared remote control, with two original remote controls

Installation Requirements:

 ◆Due to the remote infrared alarm's highest sensitivity to infrared detection when the human body moves laterally relative to the lens, while sensitivity to longitudinal movement is poor, it is important to pay attention to the angle and height of the detector's horizontal plane when installing. This has a significant impact on the protection area.

◆Installation should avoid placing the infrared alarm near heat or cold sources, such as air outlets from air conditioners, heating devices, or cold air blowers, and avoid pointing directly at the door.

The remote infrared alarm system should have a clear line of sight over the protected area and there should be no obstructions.

The remote infrared alarm should be installed at an angle of 10~30 degrees from the wall, at which point the detection range is the farthest. When actually installing, adjust the installation angle according to the situation.

Installation Method:

 1. Fix the universal base at a height of about 2 meters from the ground.

2. Open the battery cover and insert the 4 AA batteries according to the markings on the battery compartment.

3. Fix the remote infrared alarm device on the universal base, rotate the infrared alarm device to meet the installation requirements and detection needs.

Usage Method:

1. Install the battery. Press the remote control once, and the machine will emit a 'di' sound, while the green light will turn on. This indicates that the alarm is ready to enter the working state.

 2. The remote control infrared alarm will enter a 15-second standby delay when the green light is on. If no alarm signal is detected within 15 seconds, you must leave the detection area of the electronic dog within this time.

 3. After 15 seconds, if anyone enters the detection area of the infrared alarm, the red light will flash for 5 seconds. During this 5-second delay, it is convenient for the owner to turn off the alarm with the remote control. After 5 seconds, if no signal is received from the remote control, it will emit a loud alarm sound for 30 seconds, with a volume of 105 DB. After the alarm sound ends, if there is another person touching the remote infrared alarm within 15 seconds, it will again alarm, and this will continue to repeat.

4. When the remote infrared alarm is triggered, you can use the remote control to turn off the detection circuit to end the alarm.
