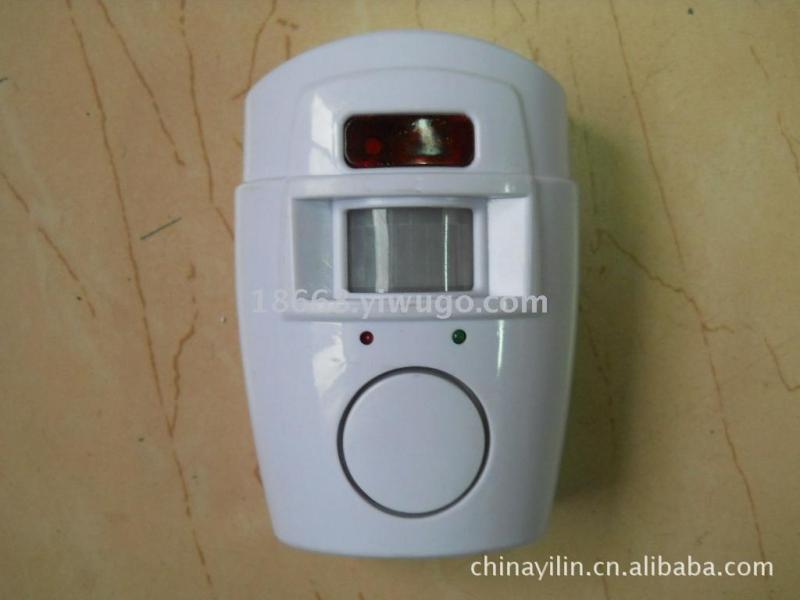

YL-105 DC:6V 105dB Alarm Sound

Main Technical Specifications
Detection range: distance 3-5 meters, angle 105 degrees
Working Voltage: AC 220V (with built-in transformer), DC 6V (can be equipped with 4 AA batteries).
Remote control distance: 3-5 meters (open area)
Alarm Sound Level: 105dB

Product features:
1. Infrared Detection

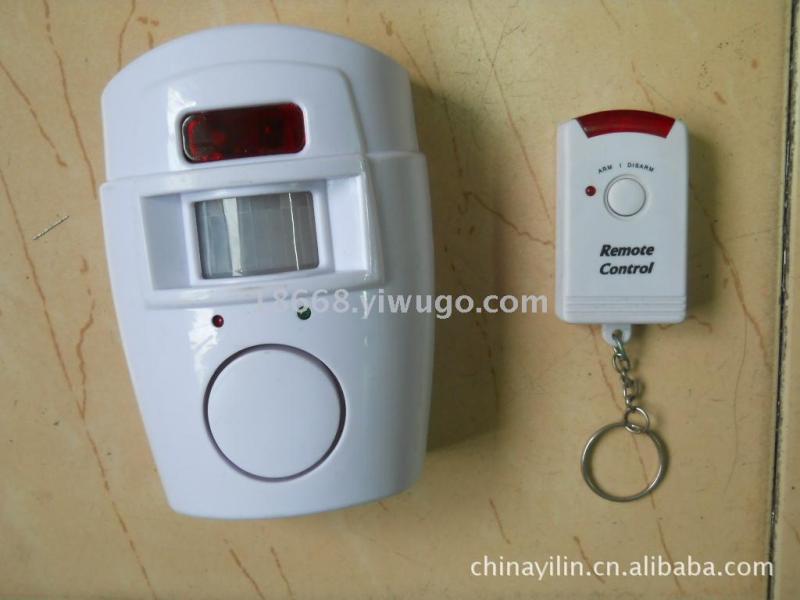

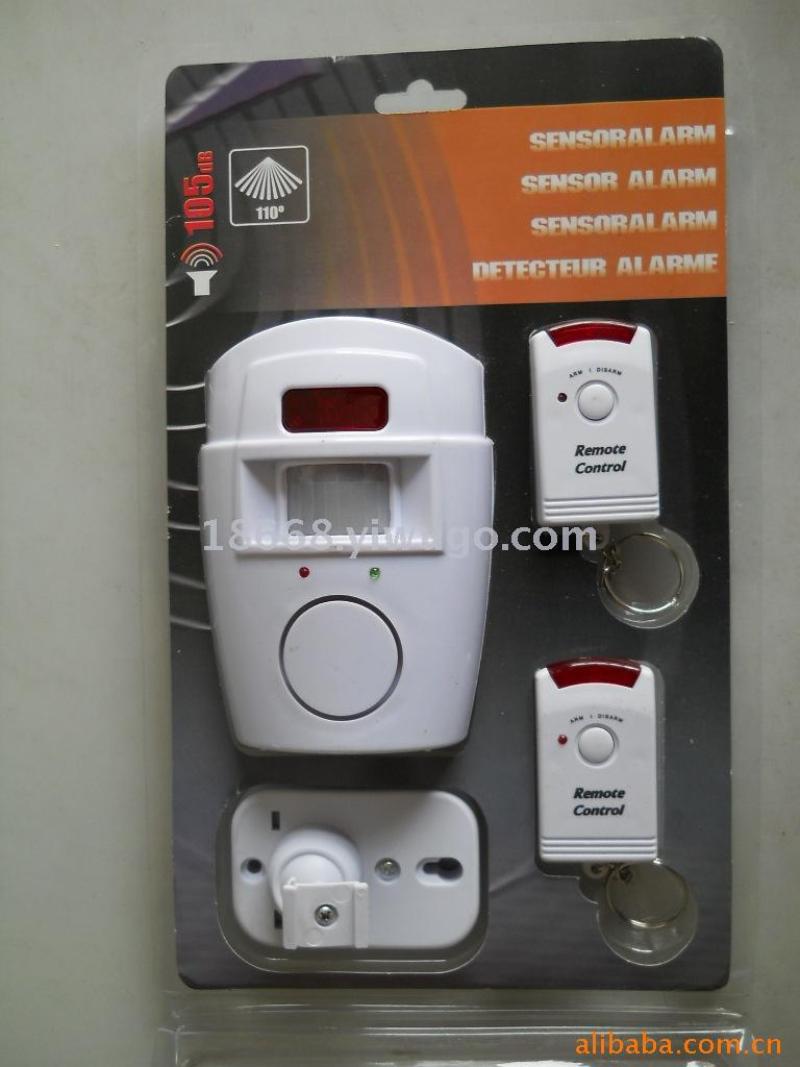

2. Long-distance multi-channel wireless remote control, with two remote controls included.

Installation Requirements:

 ◆Due to the remote infrared alarm's highest sensitivity to infrared detection when the human body moves laterally relative to the lens, while sensitivity to longitudinal movement is poor, it is important to pay attention to the angle and height of the detector's horizontal plane when installing. This has a significant impact on the protection area.

◆Installation should avoid placing the infrared alarm near heat or cold sources, such as air outlets from air conditioners, heating devices, or cold air blowers, and avoid pointing directly at the door.

The remote infrared alarm system should have a clear line of sight over the protected area and there should be no obstructions.

The remote infrared alarm should be installed at an angle of 10~30 degrees from the wall, at which point the detection range is the farthest. When actually installing, adjust the installation angle according to the situation.

Installation Method:

 1. Fix the universal base at a height of about 2 meters from the ground.

2. Open the battery cover and insert the 4 AA batteries according to the markings on the battery compartment.

3. Fix the remote infrared alarm device on the universal base, rotate the infrared alarm device to meet the installation requirements and detection needs.

Usage Method:

1. Turn on the power switch, and the power-on indicator light will blink once to indicate normal self-check.

 2. Remote infrared alarm will enter a 20-second standby delay after power-on. During this time, if no alarm signal is detected, you must leave the detection area of the electronic dog within the 20-second period.

 3. If anyone enters the detection area of the infrared alarm after 20 seconds, the remote control infrared alarm will have a 5-second delay, which is convenient for the owner to identify. After 5 seconds, if no signal from the identification remote control is received, it will emit a loud alarm sound for 30 seconds, with a volume of 105 DB. Five seconds after the alarm sound ends, if someone else triggers the remote control infrared alarm, it will again alarm, and this will continue to repeat.

4. When the remote infrared alarm is triggered, you can turn off the power switch using the remote control to stop the alarm.
