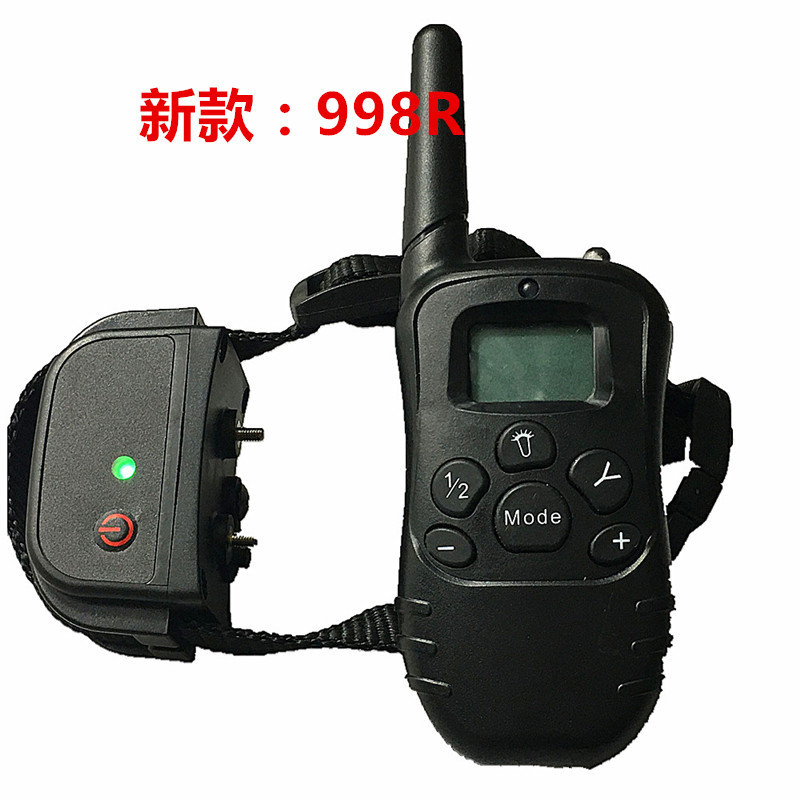

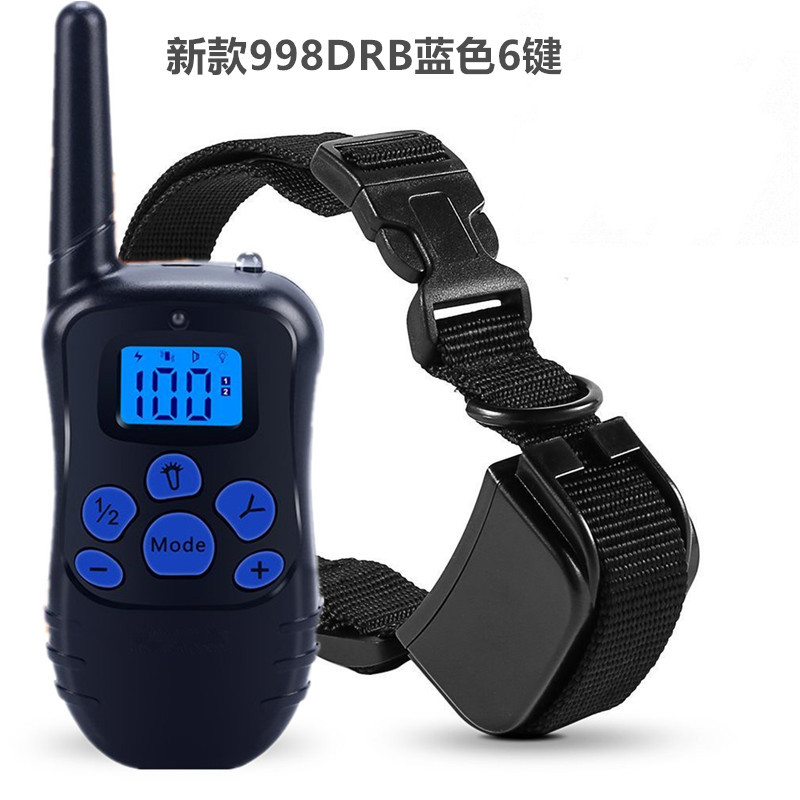

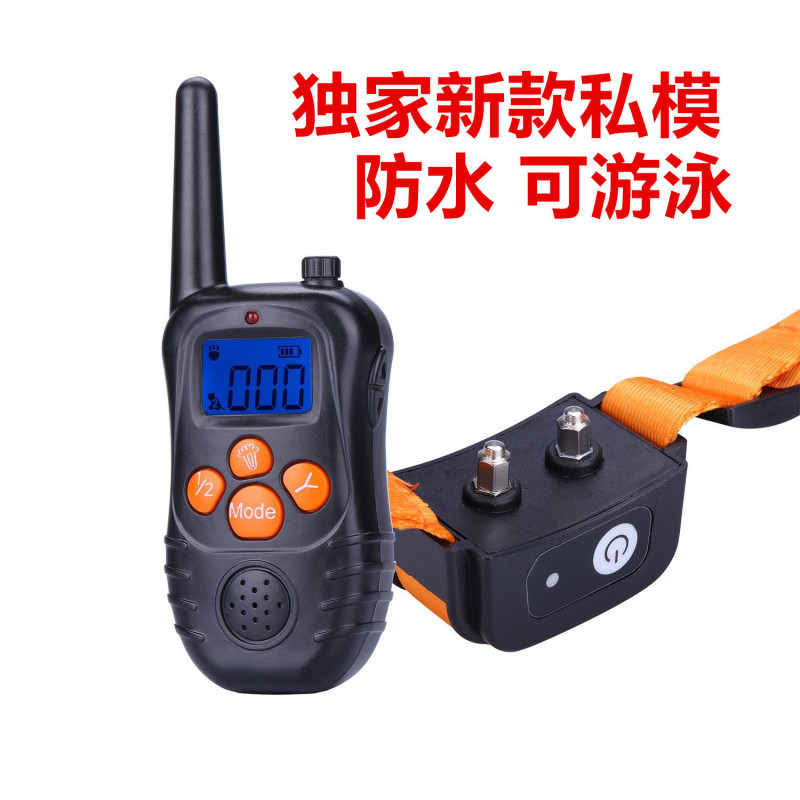

Remote Training System with LCD display
Features:
1. 100 levels of vibration.
2. 100 levels of static (optional).
3. The levels can be altered by using the up and down buttons.
4. A tone button activates a tone on the receiver.
5. This system is used for only 1 receiver.
6. If the receiver is unused for 4 minutes, it will turn off.
7. Any movement will activate the receiver into STANDBY MODE.
8. If there is no operation for 20 seconds, the transmitter will go into STANDBY MODE, and it will turn off after 2 minutes.
9. Adjustable belt length, maximum length up to 18 inches, two pairs of metal prongs (short/long) to suit dogs with varied fur thickness.
Transmitter 用户手册:
1. To install the batteries, open the battery cover, which is at the back of the transmitter.
2. Install the battery (2 x 4LR44/ 6V) in the transmitter and ensure the polarity is correct.
3. The transmitter will be turned on automatically.
4. Press the buttons one by one - the LCD images will change.
5. Press the up and down buttons on the right side to set the level.
6. The LED light can be used for giving training signals.
7. 如果发射器在20秒内未被操作,它将进入待机模式,如果在2分钟内未被操作,它将关闭。
8. In STANDBY MODE, press any button (except LED light button) to wake it up.
9. To TURN ON the transmitter, hold the mode button for at least 5 seconds.
接收器和代码的用户手册:
1. To install the batteries
2.Remove the cover
3. Install the batteries (2xAAA 1.5V), make sure the polarity is correct
4. There is a beep right after installing the batteries in the receiver.
5. Go to the transmitter and choose 1 or 2 channel to encode by pressing the channel button 1/2 in the transmitter
6. Then press the LAUNCH button on the transmitter immediately.
7. The receiver will beep - it is now encoded to the transmitter.
8. Replace cover and tighten metal probes
