Blood oxygen meter product features:

■Color OLED Display

Blood oxygen value display range: 70～100% Pulse rate value display range: 30～240 BPM
■ Resolution: Oxygen saturation is 1%, pulse rate is 1 BPM
Accuracy: SpO2 within the range of 70% to 100% is ±1%, with no definition below 70%. Heart rate is ±2 BPM or ±1% with the larger value.
Battery Requirements: 2 AA 1.5V Alkaline Batteries
■High resistance to environmental light and weak perfusion
■ Display Format: LCD Display: Blood Oxygen Saturation Display: 70 - 100%, Four Directional Changes, 8 Display Modes; (Change in font size and direction from top to bottom and left to right)
Pulse rate display: 30 - 240 BPM, 3-digit 7-segment digital display.
Pulse wave display: Bargraph display;
Battery Voltage Low Indicator: LCD Symbol.
Battery Requirements: 2 AA 1.5V Alkaline Batteries, Voltage Compatibility: 2.6 - 3.6 Volts.
Power consumption: less than 30 milliamps.
Resolution: Blood Oxygen Saturation ±1%, Pulse Rate ±1 BPM.
Measurement accuracy: SpO2 within the range of 70%-100% is ±2%, and there is no definition for values below 70%. Heart rate is ±2 BPM.
Measurement performance under weak perfusion: Able to correctly display blood oxygen and pulse rate values when the pulse filling degree is 0.5%.
■Anti-environmental light interference capability: The blood oxygen measurement value under indoor natural light and existing lighting sources is less than ±1% deviation compared to the measurement value in a dark room condition.
■ With a functional switch, the device will automatically turn off 8 seconds after power-off without any finger insertion.

Technical Specifications

■Product usage is simple and convenient.

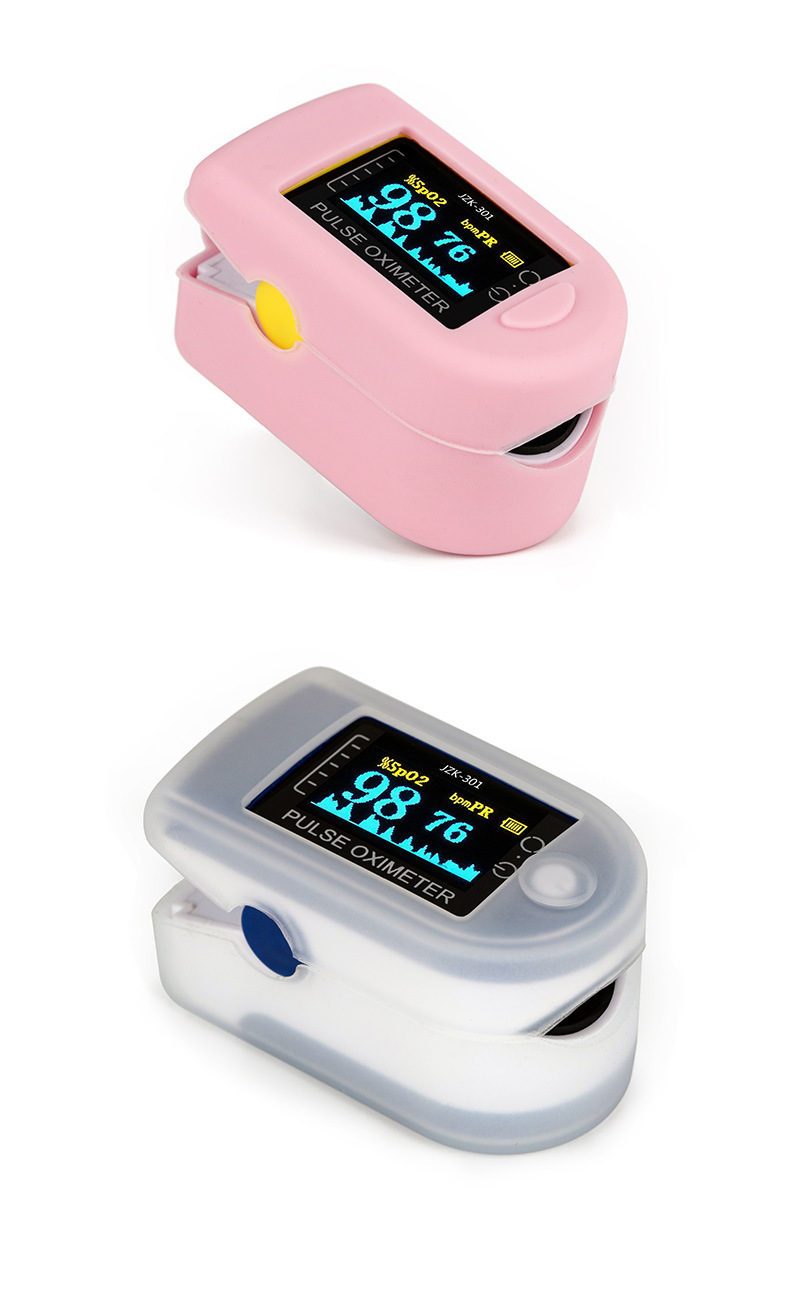

The product is small in volume and light in weight (including the battery, it weighs approximately 50g), making it convenient to carry.
■ Low power consumption, two AAA batteries can last for 10 hours.
When the battery voltage is too low, it may affect normal use, and the visible window will have a low voltage warning indicator.
The product will automatically turn off after 8 seconds when there is no signal.

Applicable Scope: Ward monitoring, family health care, patient testing, outpatient medical services
