Applicable controller: PS5 controller

The required wireless charging specification (this packaging does not include a wireless charger).
Output: 5W-15W
When charging a PS5 controller, in order to provide sufficient current, the wireless charging power should be between 5W and 15W.

Install the wireless charging receiver for the PS5 controller

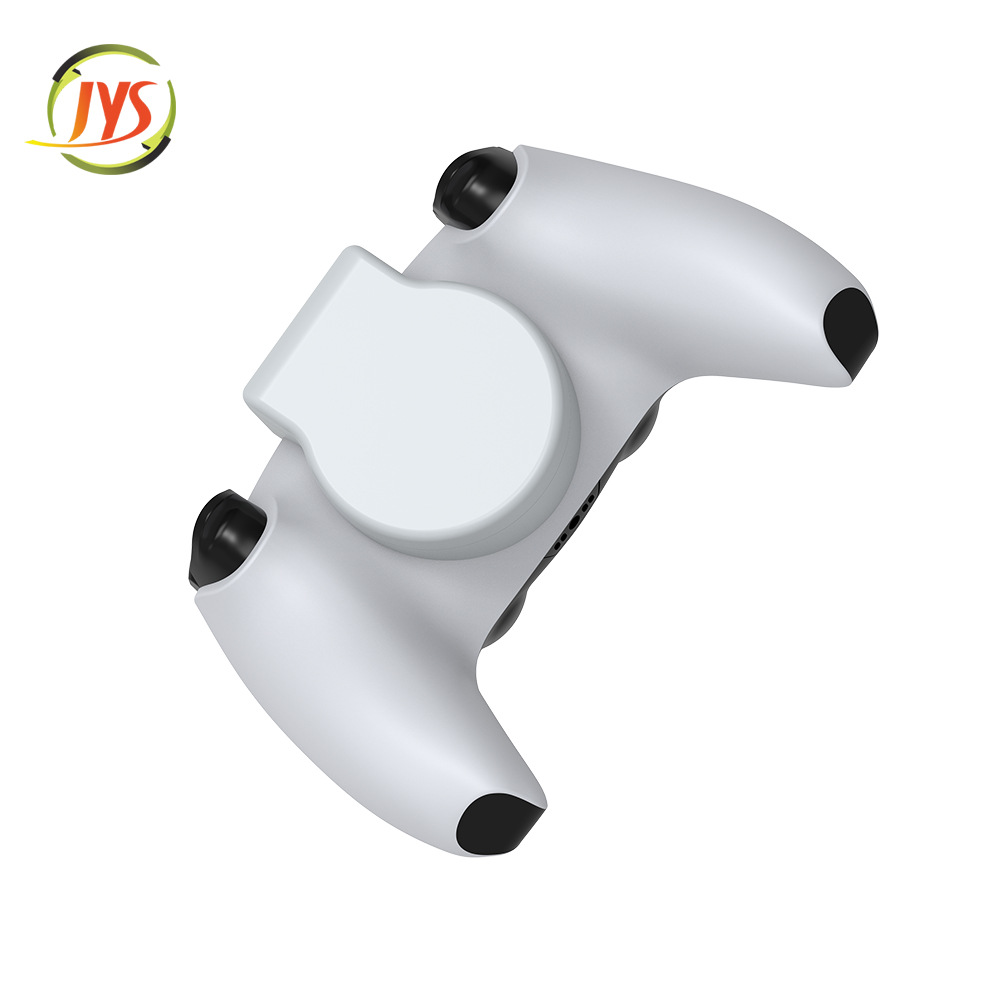

1. Insert the wireless charging receiver into the Type C port of the PS5 controller.

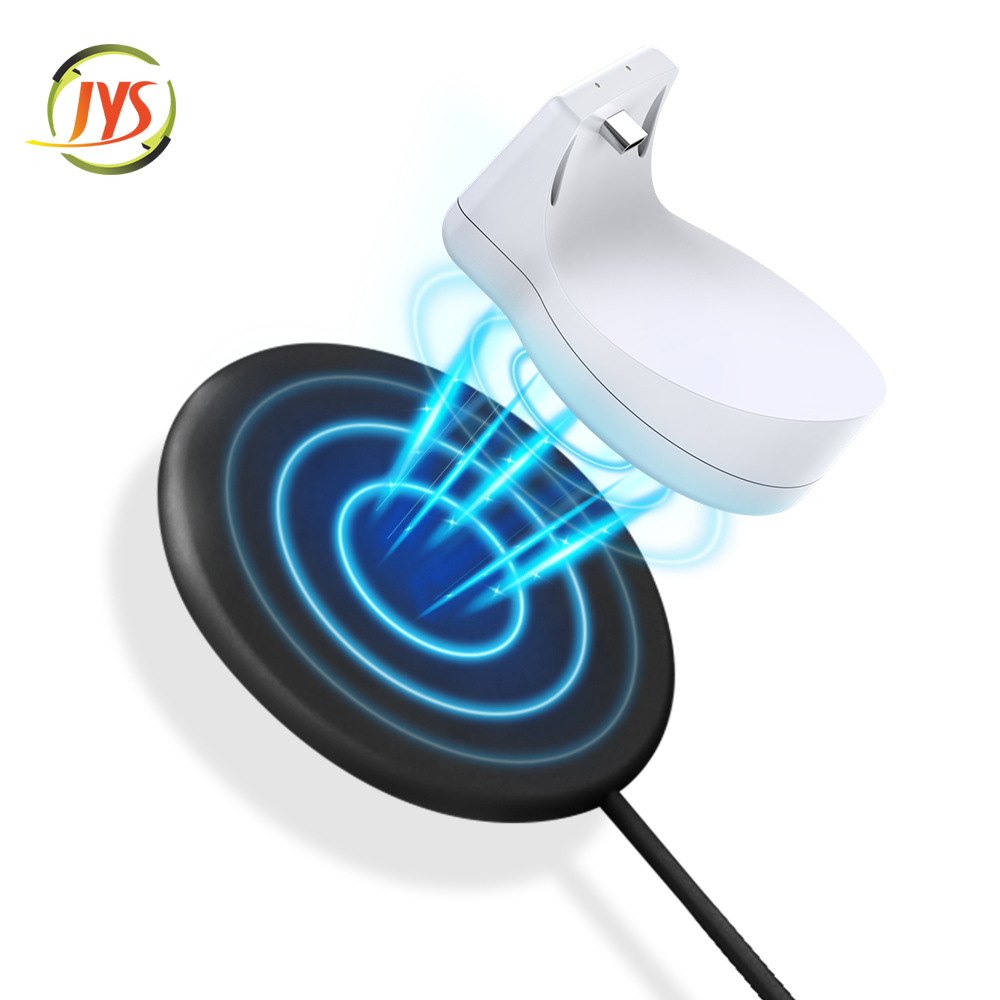

2, Place the device on the wireless charger, and when it successfully charges, the LED indicator light on the receiver will display red; the LED indicator light on the handle will flash with an orange breathing light.

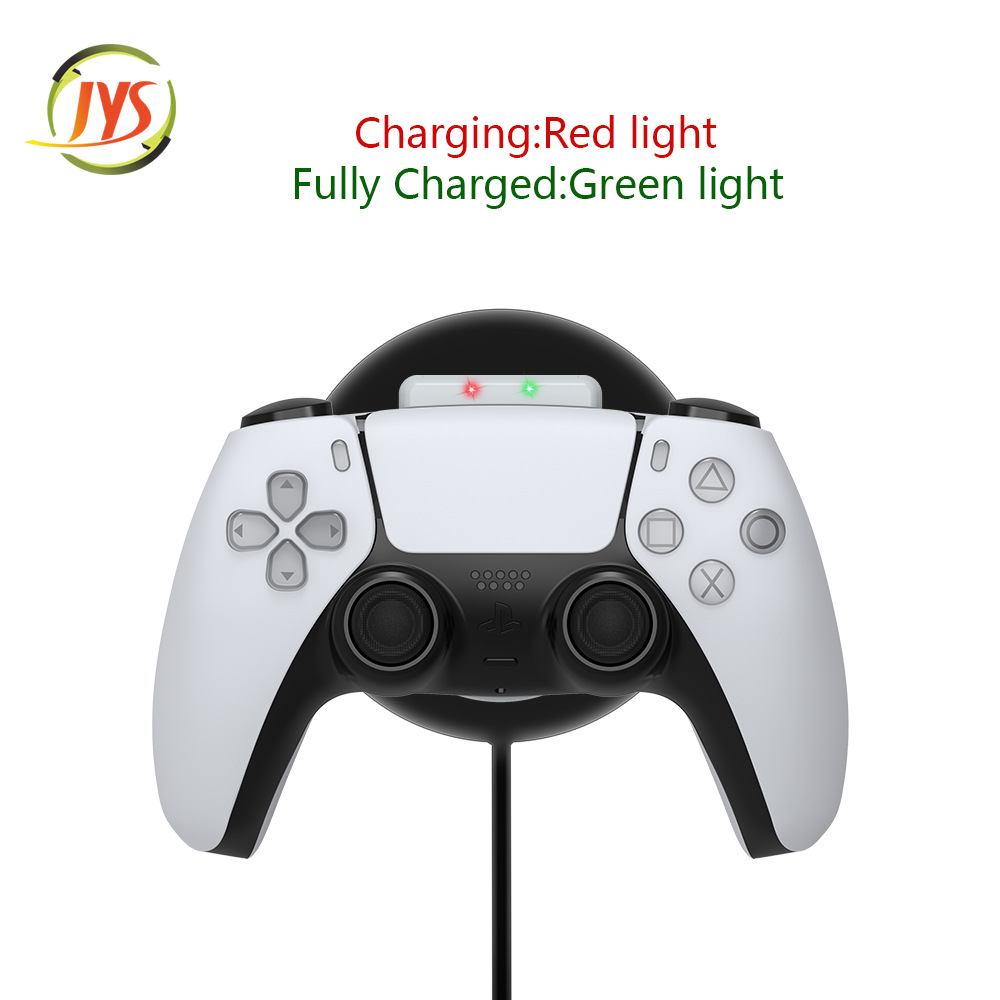

Receiver's LED indicator

The LED indicator light on the receiver can indicate the charging status of the handle.
Charging: Red light
Filled with: Green light

Receiver Specifications
1. This product is designed to charge the PS5 controller using the existing wireless charging capabilities of the customer.
2, when using a wireless charger with a power of 5W to 15W to charge the controller, it will take about 2 hours to fully charge the controller.

Receiver's protection function
The receiver features an optimized circuit that enhances charging speed, allowing the battery to be fully charged within a short period of time.
The receiver is equipped with over-current, over-voltage, over-charge, and short-circuit protection.

Parameter:

Output Voltage: 5V

Output Current: 1A (MAX)

Coil size: 45*38MM

Thickness: 1MM

Inductance: 13uH

Overvoltage Protection: 5.3V

Overcurrent Protection: 1.3A

Charging efficiency: 75%

Note: The coil test distance is 2MM.
