Product description:

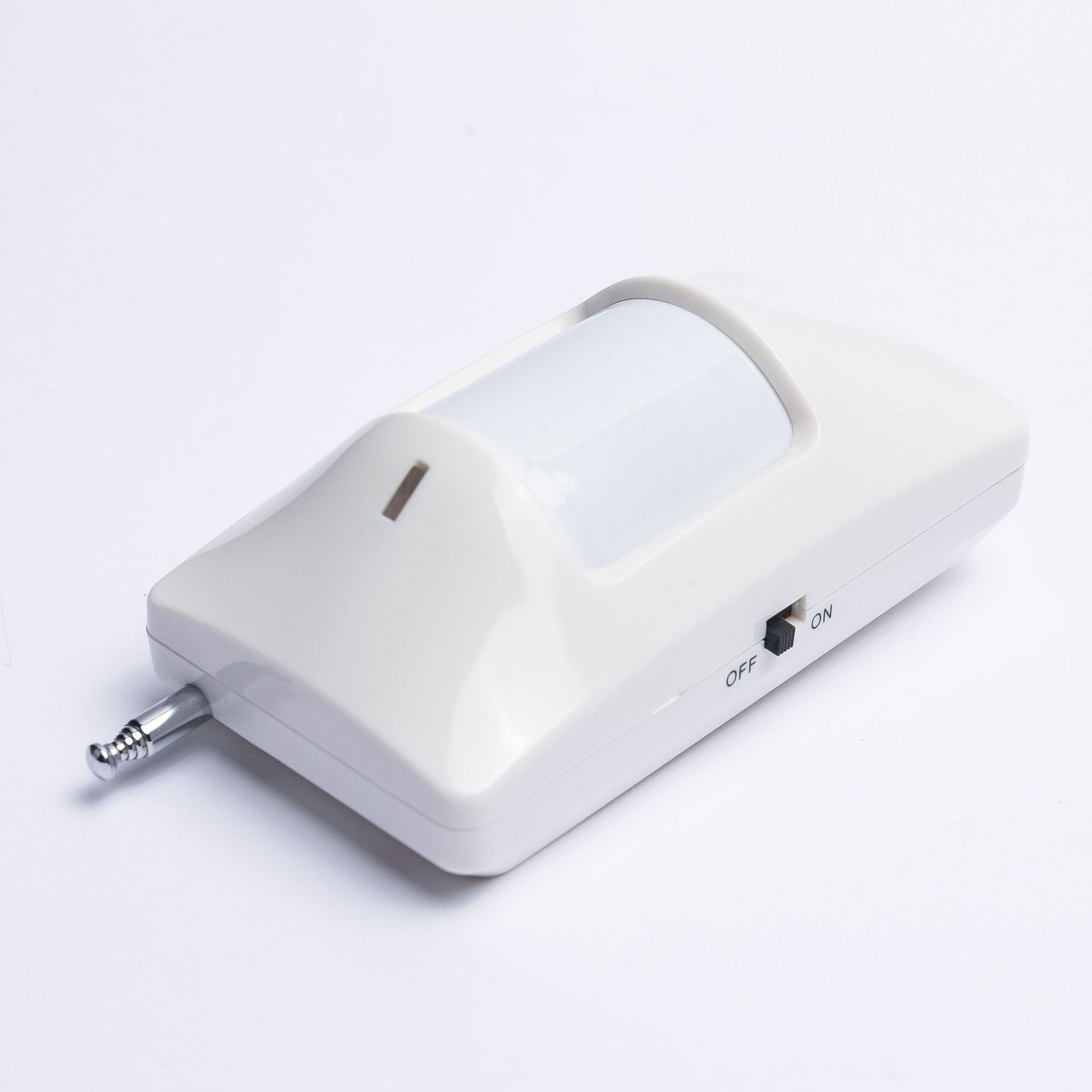

1. Wireless infrared detector, which consists of Micro wireless transmitting circuit, infrared detection device, etc. When the human body is moving within its receiving range, the detector outputs an alarm signal.

2. It is a product with high reliability at present. The infrared detection part adopts alarm sensors and infrared special processing IC. The high-frequency emission part adopts the latest acoustic surface (SAW) frequency stabilization technology and cooperates with mature peripheral circuits to make the product have good infrared detection sensitivity, low false alarm rate, stable high-frequency emission frequency, features of high transmit power.

3. Working principle: the prevention area of infrared Wide-angle probe is a conical detection area with its lens starting point, 120 degrees horizontally, 60 degrees vertically and 8 meters long. In this area, as long as the thermal energy animals move in the region, the infrared thermal energy they emit will be absorbed and wireless signals will be transmitted to engine alarm at the same time.

Performance indicators:
1. Transmitting frequency: 315MHz/433.92MHz
2. Coding IC:SC2262, ev1527
3. Timing resistor :1.8M/3.3M/4.7M
4. Sensitivity: bottom/middle/high three adjustable
5. Probe reset time: 240S-8S adjustable
6. Emission current: ≤ 15 mA/voltage 6V or ≤ 35 mA/voltage 9V
7. Transmitting power: 200 MW
8. Static current: 6OuA
9. Detection angle: horizontal 120 °, vertical 60 °
10. Detection distance: ≥ 6-15 meters (room temperature 25℃) varies with ambient temperature
11. Wireless transmitting distance: 100-200 meters (open ground) is different from the supporting host and the use environment.
12. Detection direction: freely adjustable
13. Code matching skipping: 8-bit address code (can be factory coded with the host) 4-bit data code (used for anti-zone code, each zone has a corresponding data code)
14. Working voltage: 9V
