Product Model: 600M-2DB
Product color: black
Product material: ABS material + gold-plated USB head
Product chip: Realtek 8811CU
Network speed: 2.4G -- 150Mpbs/5G --- 433Mpbs
Network mode: dual frequency 2.4g +5.8g
Applicable systems: Windows Vista/XP/2000/7/8/10, Linux, MAC OS10.5-10.13
USB head size: 4.5*2 * 1.2cm

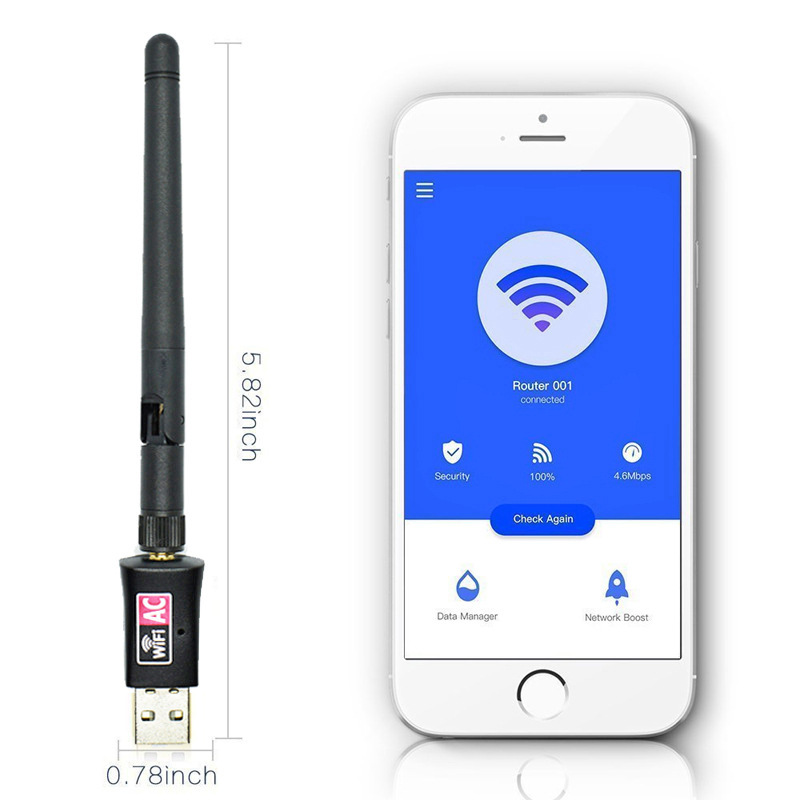

Antenna size: 10.8cm

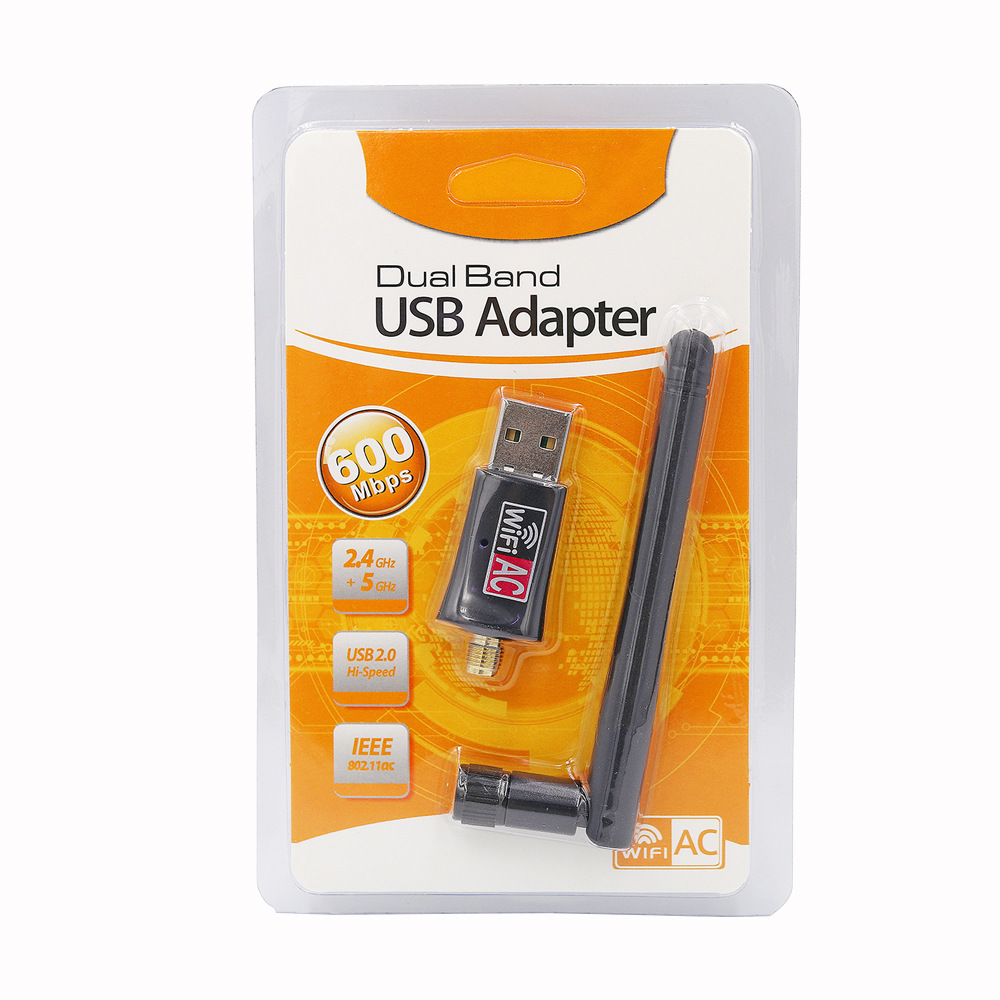

Packing size: 15*9.5*0.9cm (blister packaging)
Bare Metal weight: 12g
Bare Metal + CD weight: 18g
Full set weight including CD: 35g
Standard Box: 500 pcs/box
Box size: 59*42 * 36cm
Box weight: 16KG
Product accessories:

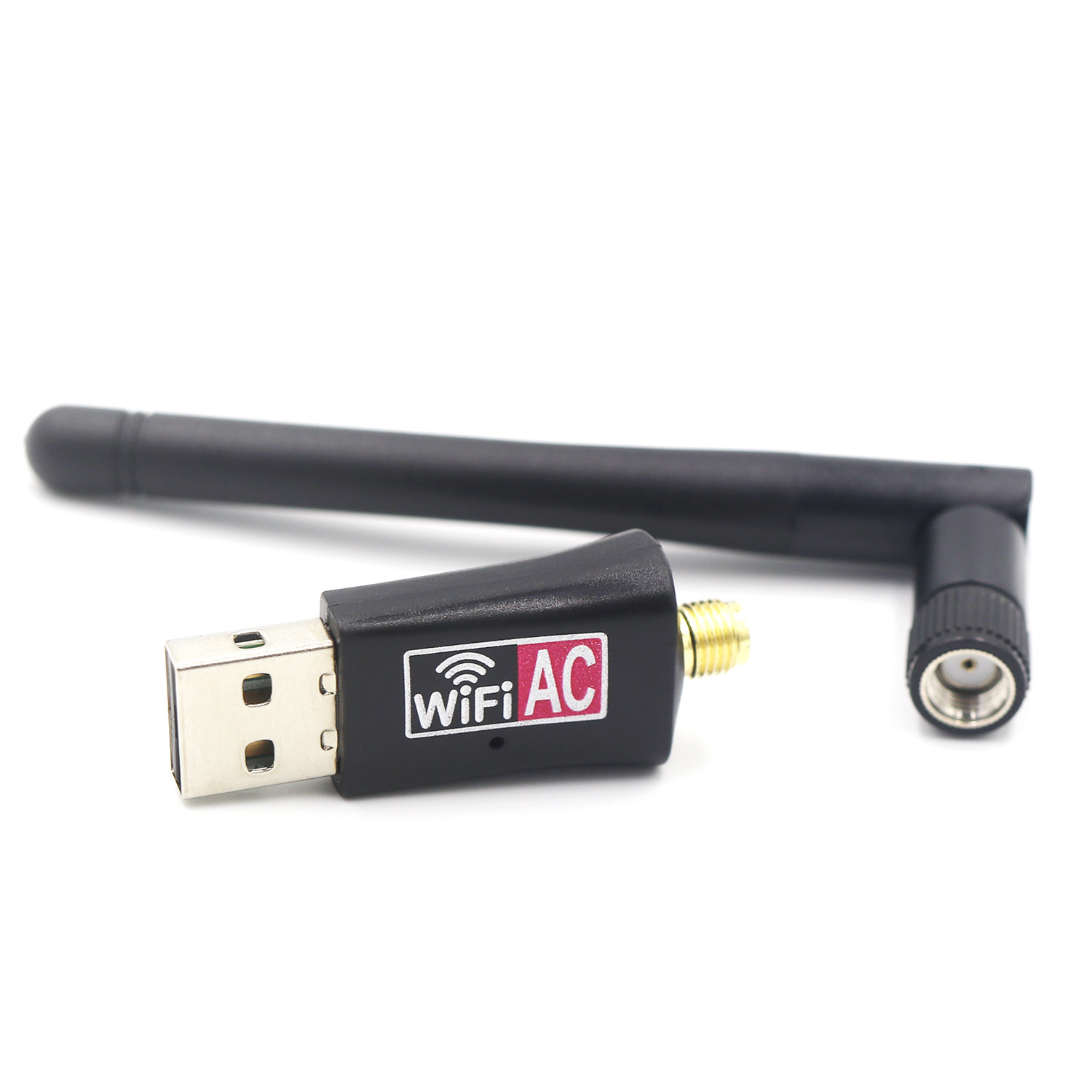

1*600m network card + antenna
1*CD drive disk
Product Description

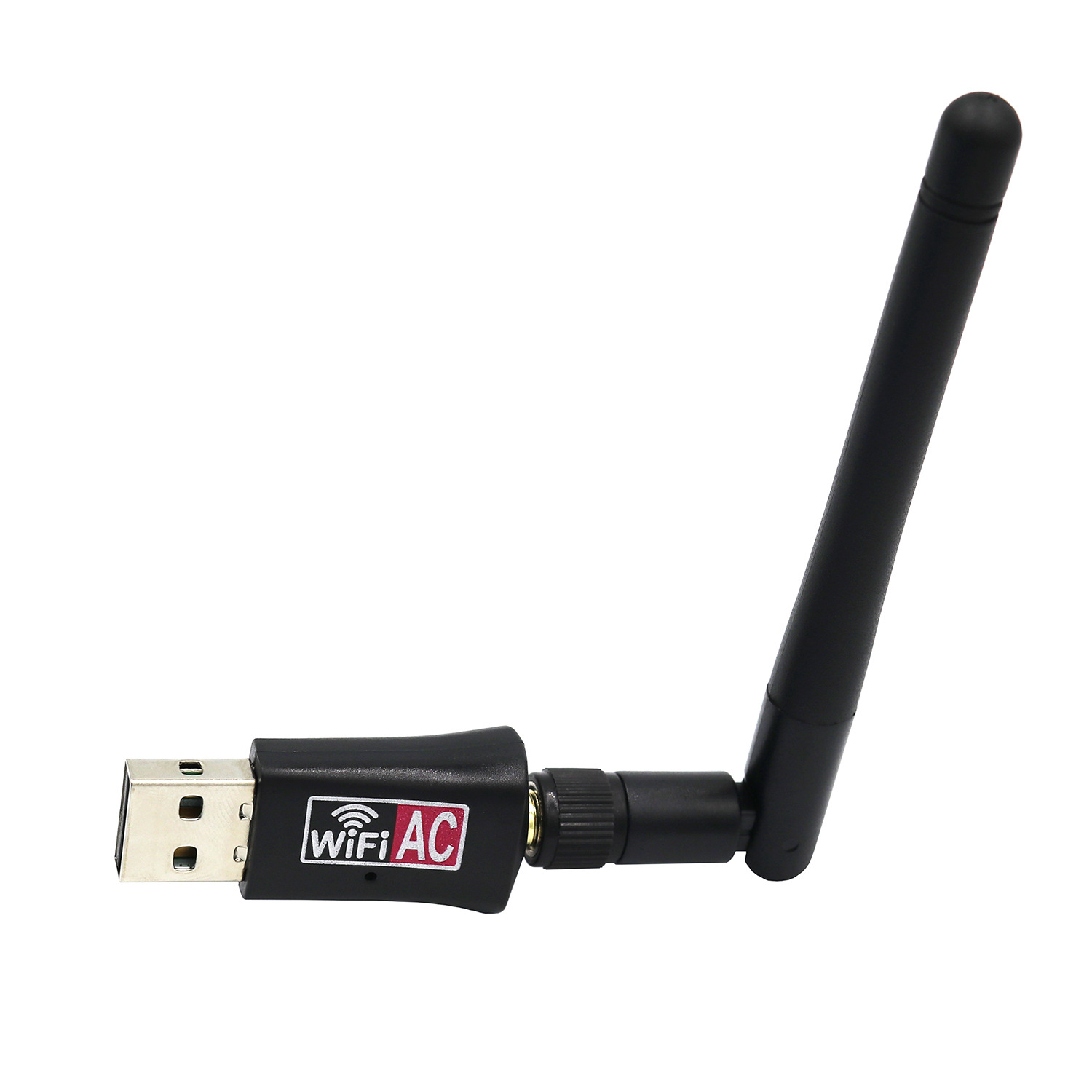

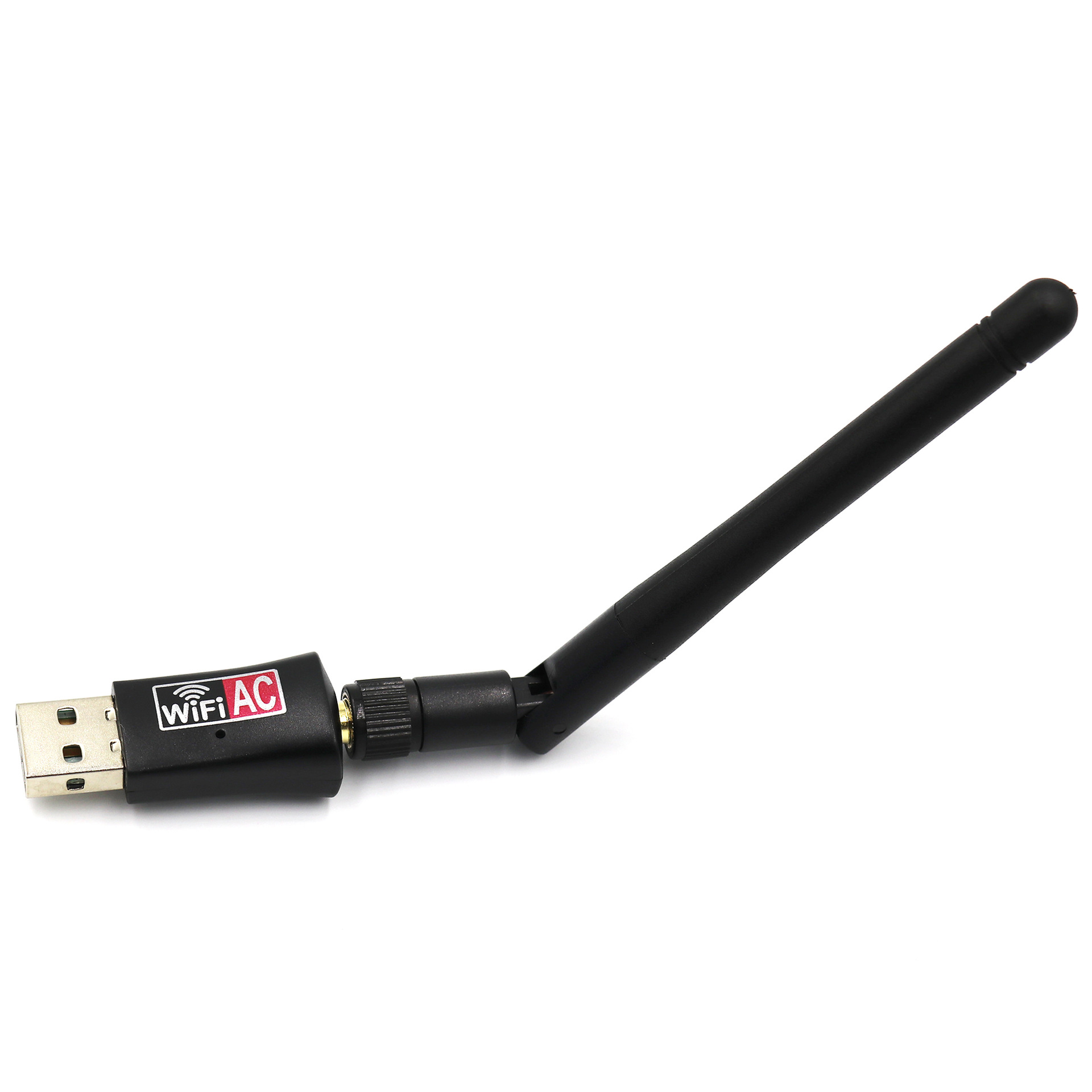

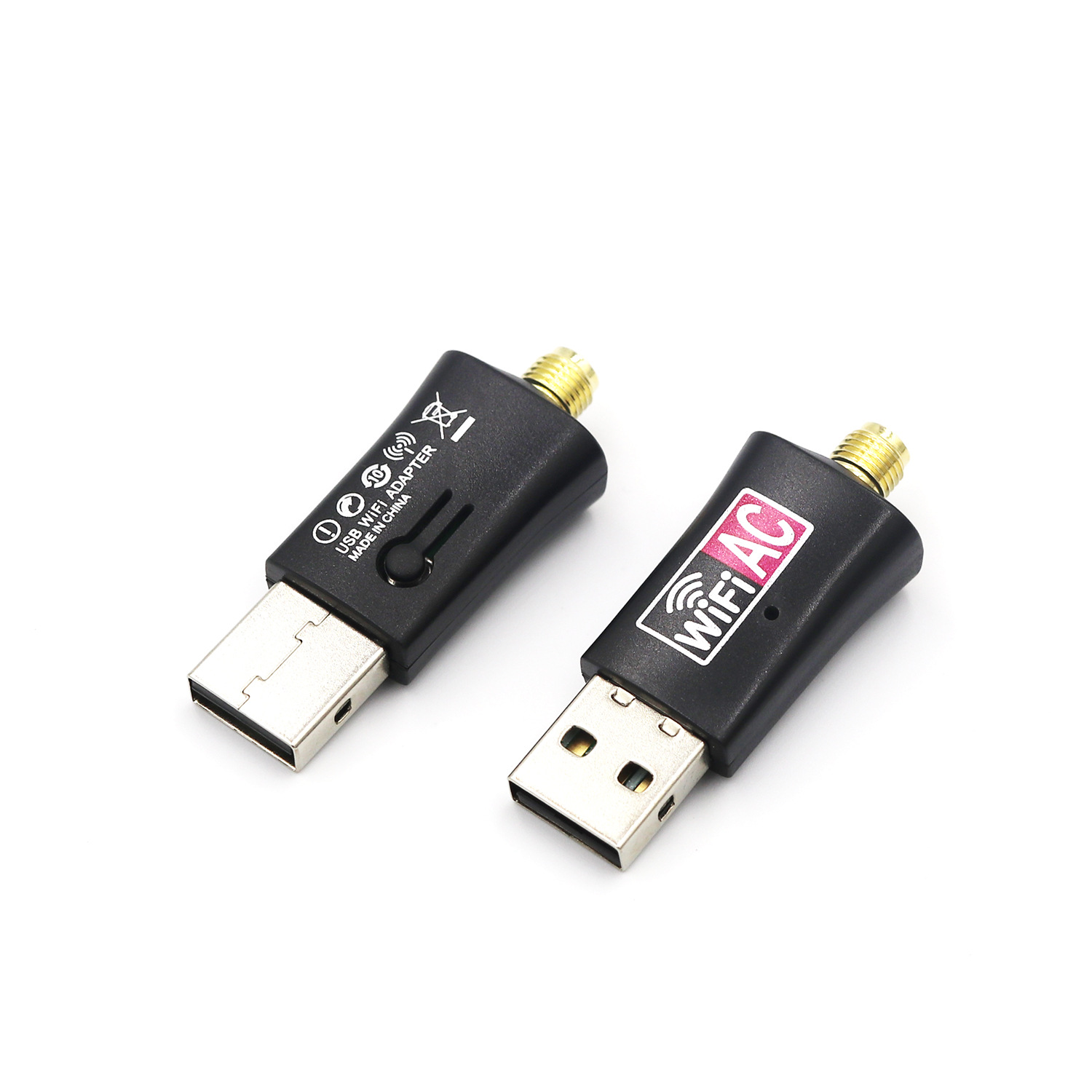

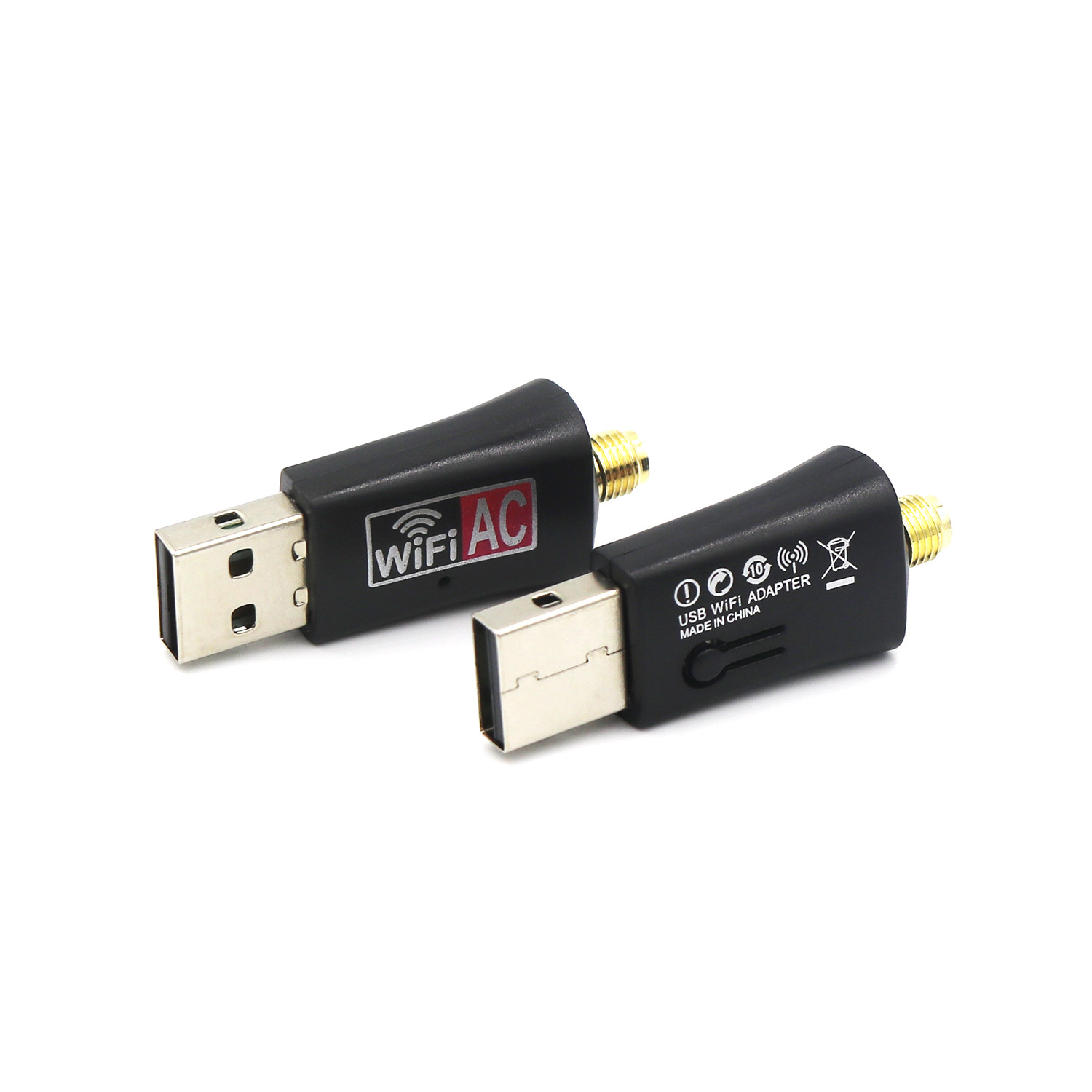

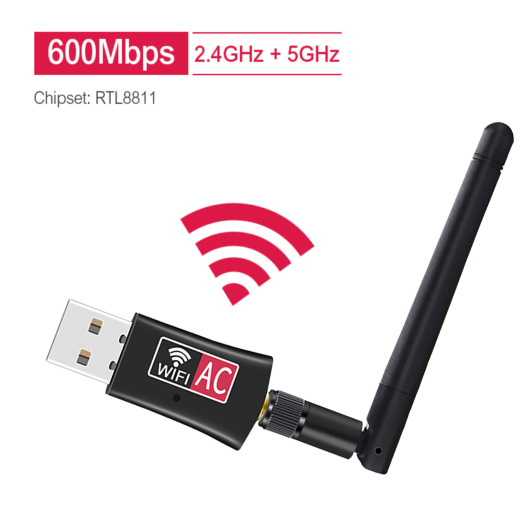

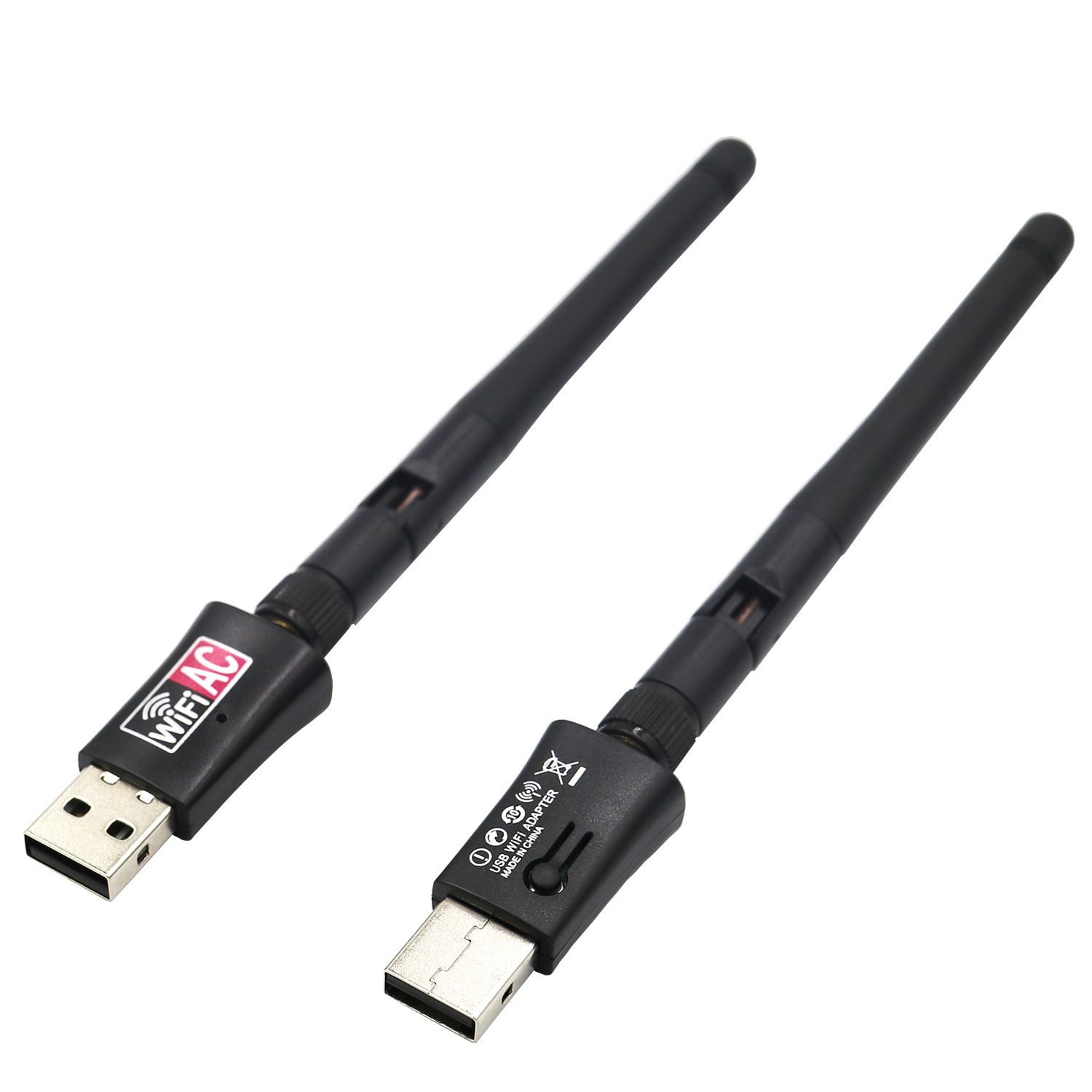

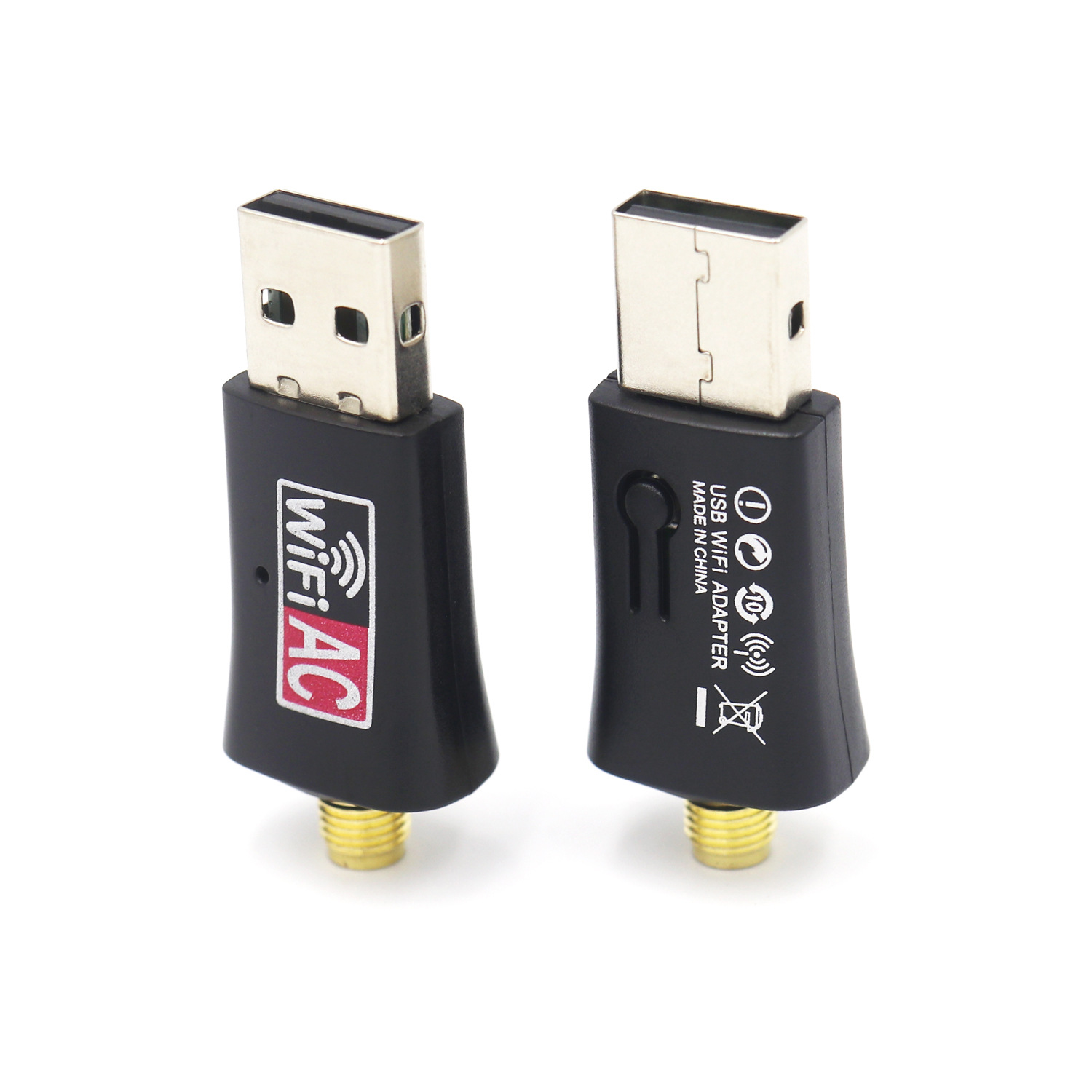

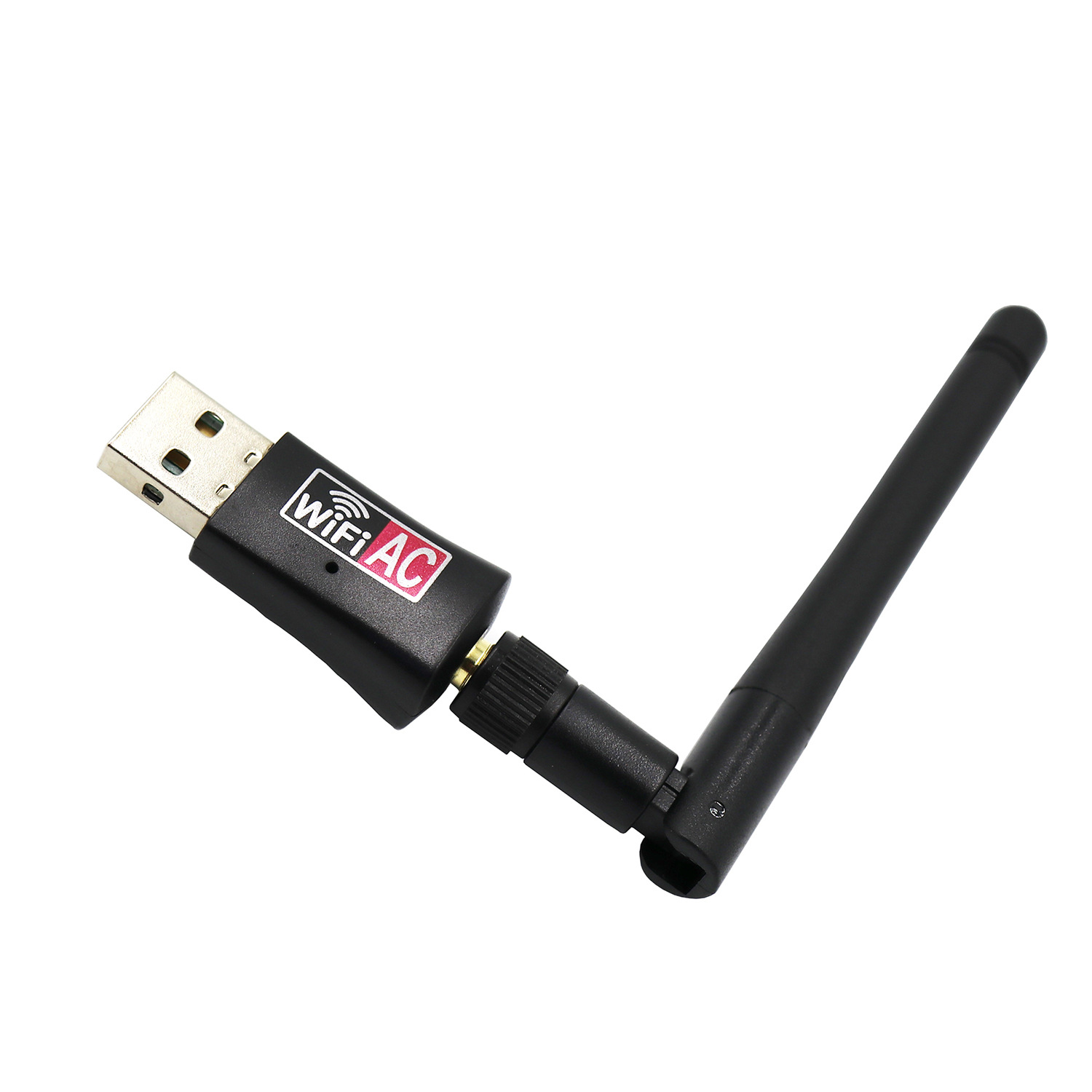

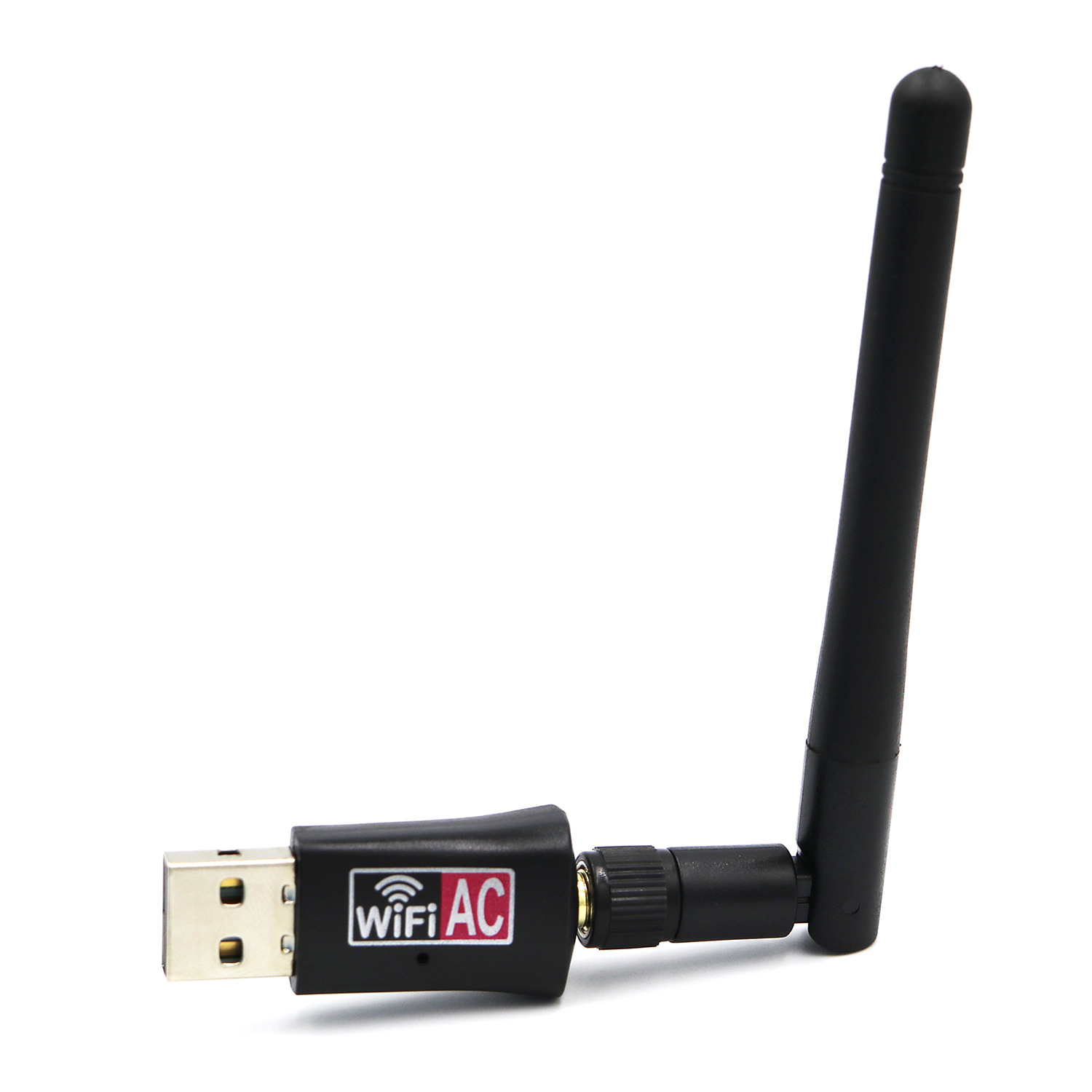

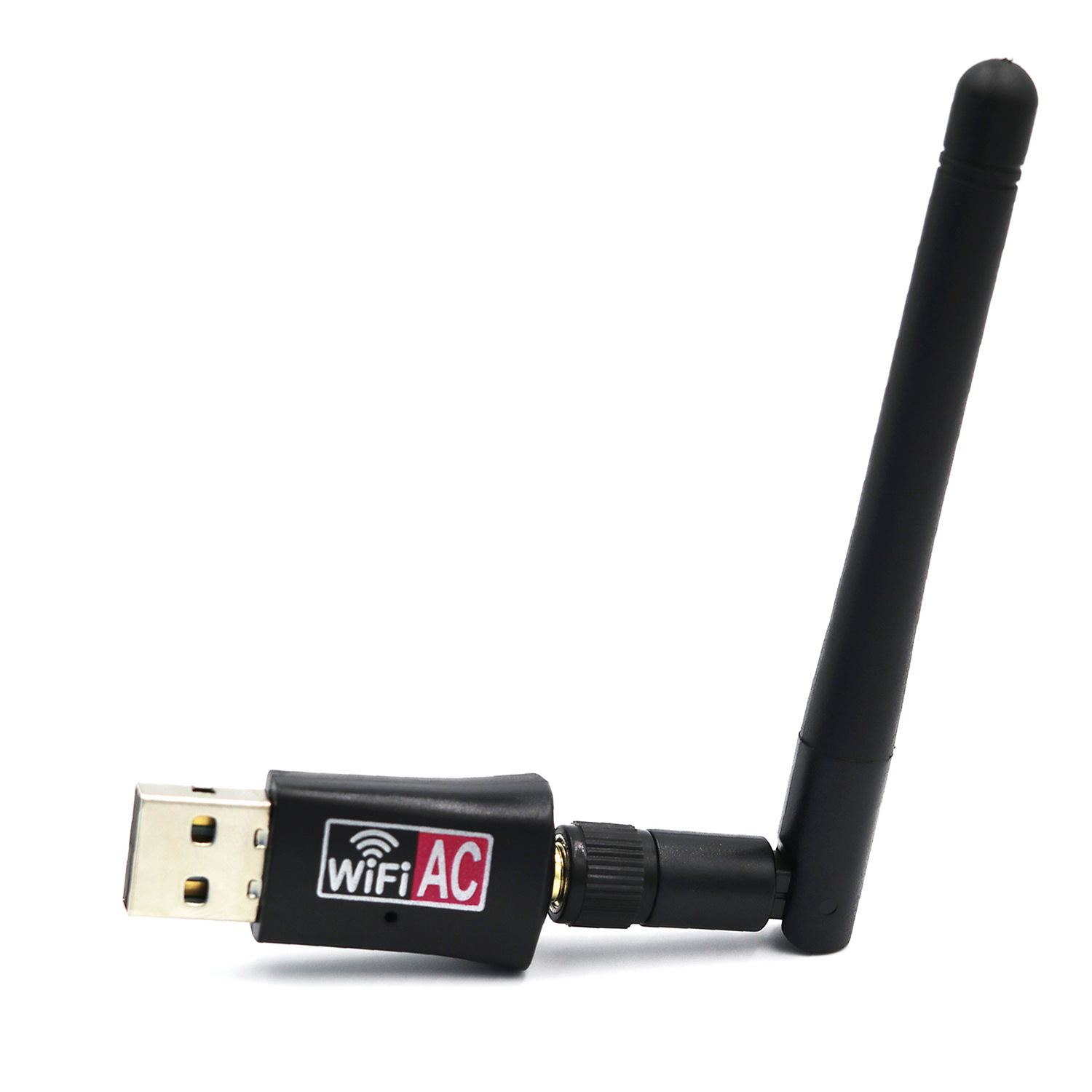

600Mbps 11ac Wireless network card usb Dual-band 2.4G/5.8G Wi-Fi receiver external antenna
Mini 600Mbps wireless network card 11ac usb external double-frequency antenna 2.4G/5.8G Wi-Fi receiver
Supports 2.4GHz and 5GHz wireless network connection; External high-efficiency dual-band antenna;
Comply with IEEE 802.11a/B/g/n/ac standard;

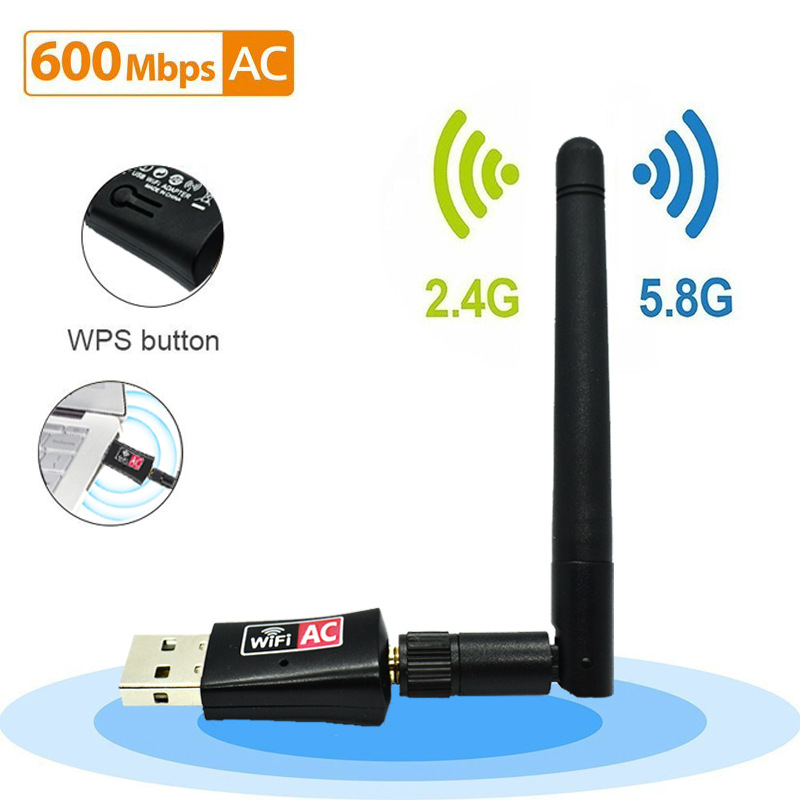

Supports WPS and wireless direct connection;
Wireless transmission rate: 2.4G band up to 150Mbps;5g band up to 433Mbps, can automatically adjust the wireless rate according to the network environment;
Support USB 2.0 interface;
Built-in power consumption management;
There is a status indicator on the front, which will continue to light after software and hardware installation; It has good anti-interference ability;
Windows XP/7/8/10, Linux,Mac and other operating systems are supported.

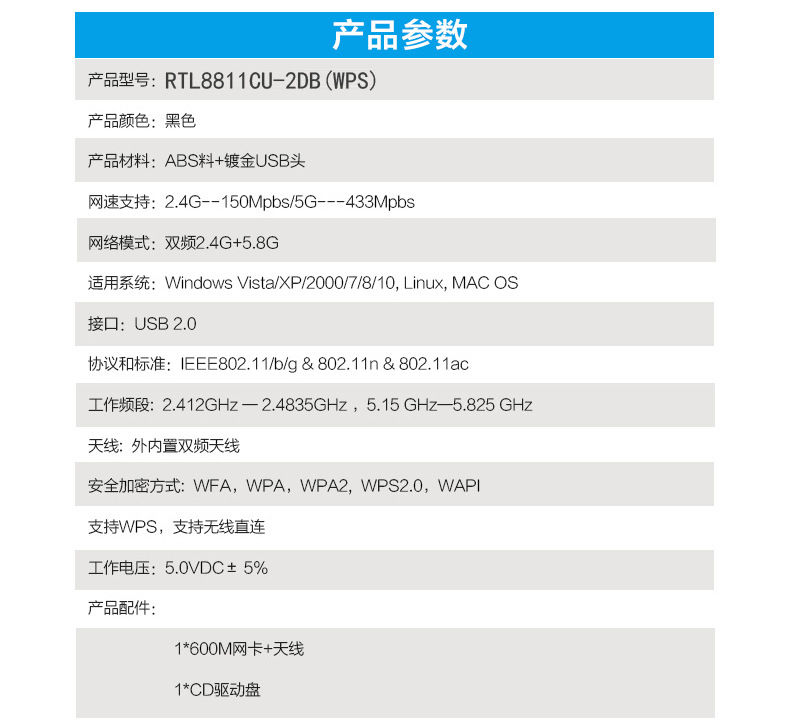

Main Specifications
|
Electronic parameters |
||
|
Main chip |
RTL8811 |
|
|
Interface |
USB 2.0 |
|
|
Protocols and standards |
IEEE802.11/ B /g & 802.11n & 802.11ac |
|
|
work frequency band |
2.412GHz - 2.4835GHz ,5.15 GHz-5.825 GHz |
|
|
Antenna |
External built-in dual-frequency antenna |
|
|
Secure encryption |
WFA,WPA,WPA2, WPS2.0,WAPI |
|
|
Transmit power |
802.11a: 14-16dBm@ 54Mbps (OFDM) |
|
|
802.11b: 16-20dBm@ 11Mbps |
||
|
802.11g: 14-16dBm@ 54Mbps |
||
|
802.11n: 14-16dBm@ 150Mbps |
||
|
802.11ac:12.5~13.5dBm@433Mbps(AC80) |
||
|
Receiving sensitivity |
802.11a: -66+/-1dBm |
|
|
802.11b: -80+/-1dBm |
||
|
802.11g: -73+/-1dBm |
||
|
802.11n: -70+/-1dBm(HT20);-64+/-1dBm(HT40) |
||
|
802.11ac:-80+/-1dBm(MCS0);-56+/-1dBm(MCS9),(AC80) |
||
|
Operating voltage |
5.0VDC ± 5% |
|
|
Power consumption |
Sending and receiving status: 220mA(max) |
|
|
TX status only: 220mA(max) |
||
|
RX status only: 180mA(max) |
||
