Product Description

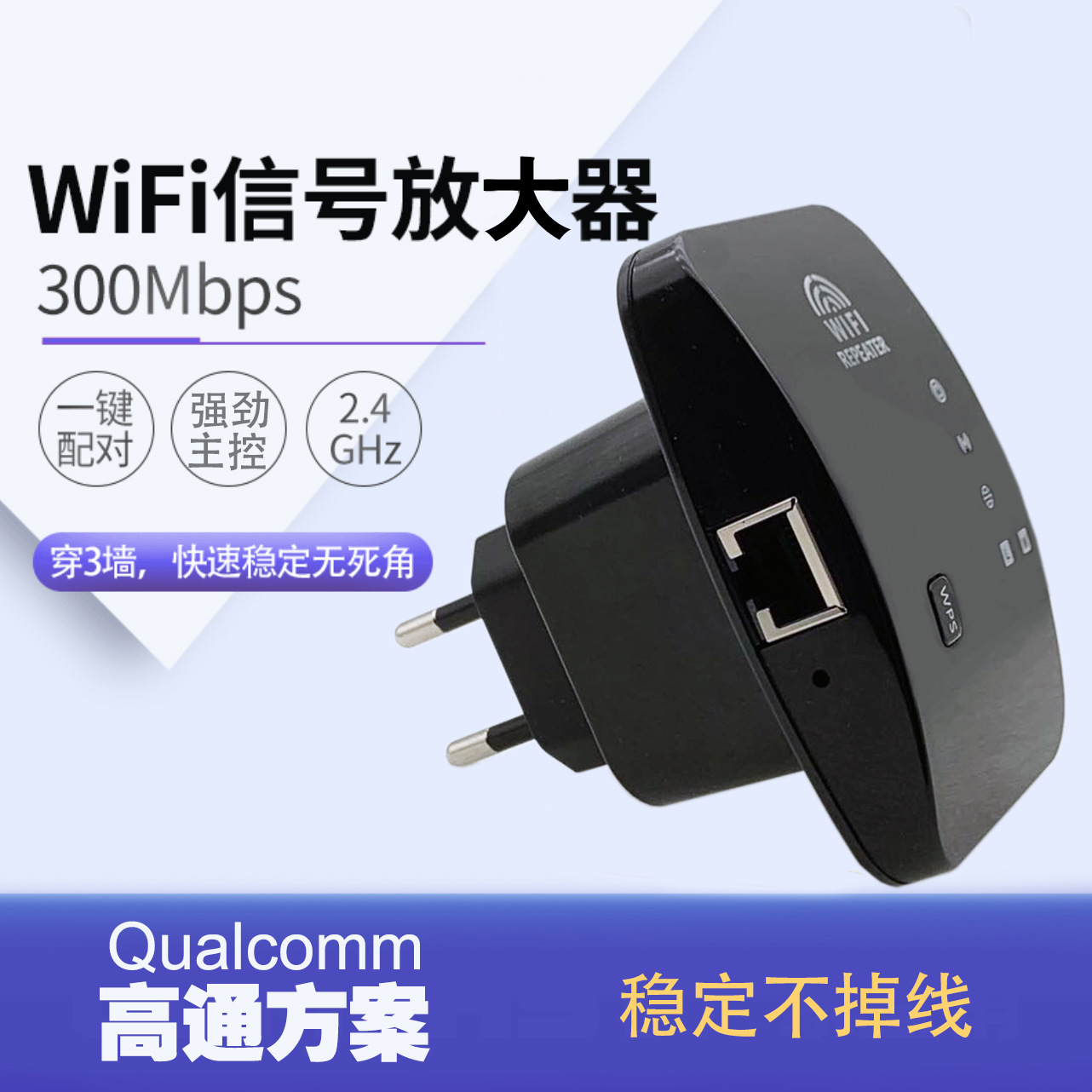

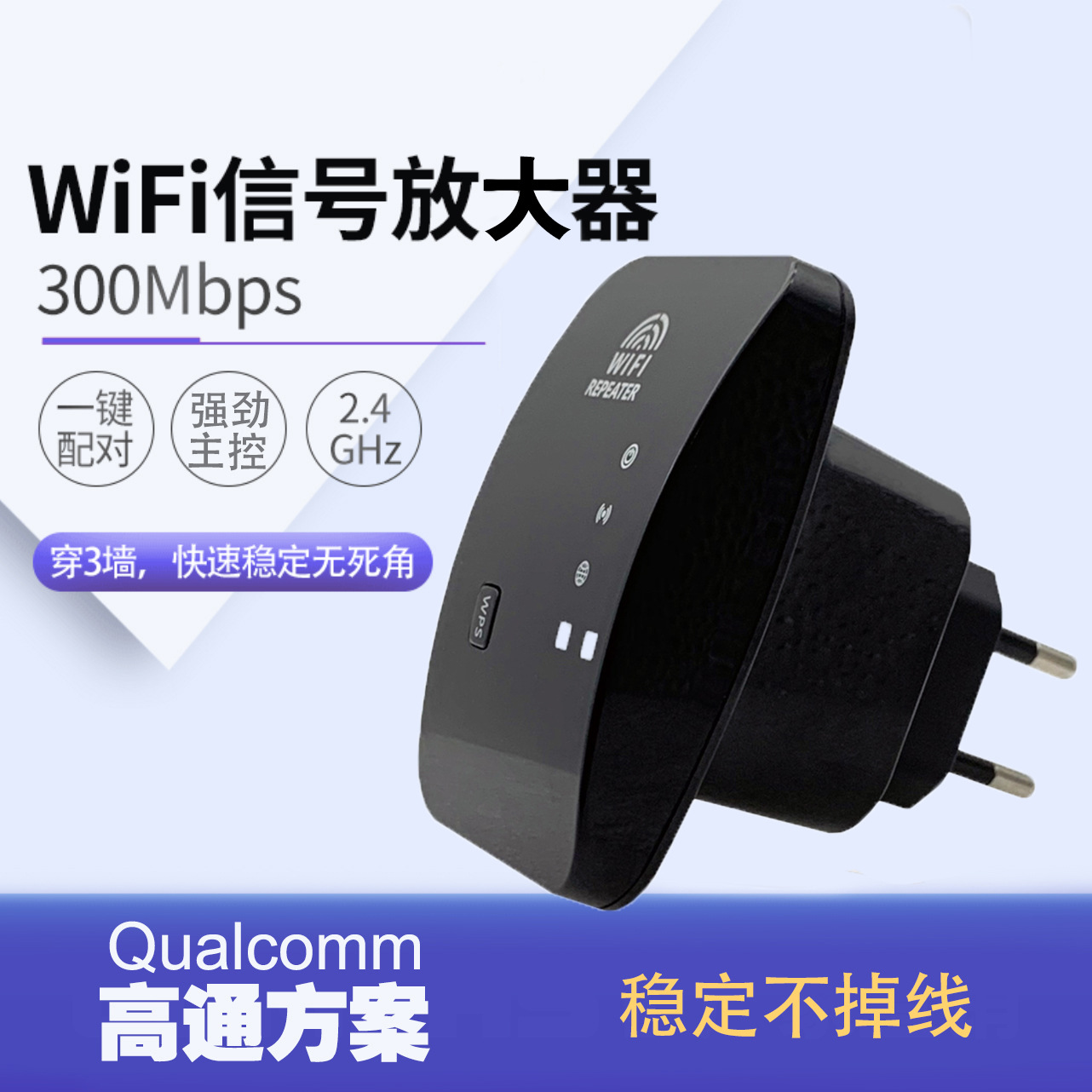

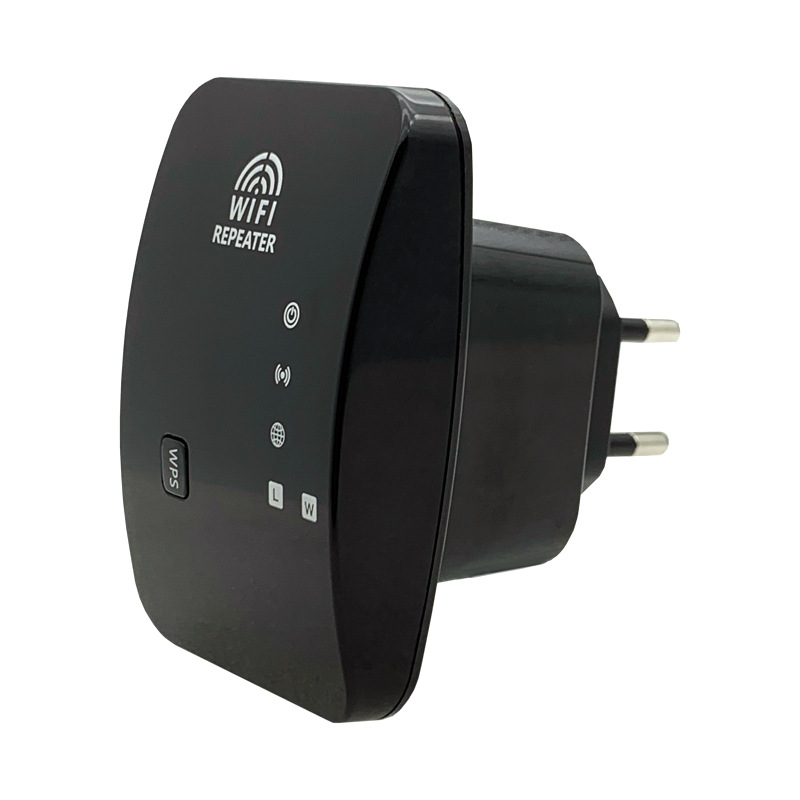

M-95A is a use relay signal amplifier of a new generation of high-pass main control chip; repeater simultaneous search2.4G network signal, maximum transmission rate 2.4G/300Mbps. Yes in order to let you enjoy high-speed Internet surfing like Wired network in wireless mode.

M-95A equipped with smart built-in antenna to provide better wireless performance, transmission rate, and stability technologies automatically avoid channel conflicts, channel selection characteristics, expand and strengthen your wireless signal, allowing you to enjoy wireless freedom. Also configured1 A ethernet port (10 / 100Mbps) allows extender to connect wired devices as a wireless adapter. You can directly connect devices such as Xbox,PC or Mac, which can keep multiple simultaneous HD streaming media, online games and other content consumption

M-95A adopt bottom surface cooling and ventilation design, greatly improve the heat dissipation effect of the machine when working, and effectively ensure the stability and life of the machine when working for a long time. The machine supports two working modes, ( AP and relay mode); Users can set as needed to enjoy network services. Pass professional interactive design, minimalist visual style. Easy to set up and easy to use, wireless expansion only needs3 steps, advanced transparent bridge mode makes it easier for you to access Lan.

Two working modes of repeater:

Relay mode: sometimes a device may be in the living room, but due to poor signal, the bedroom signal may be only one grid, which requires further expansion of the wireless network. At this time, we can consider using repeater to expand the network through relay mode. The name of the amplified wireless signal is the same as that of the original wireless router signal by default, you can also change the settings according to your habits. Repeater when setting, you need to connect to the superior router signal and keep the connection signal in good condition, which is conducive to the stability of the extended network signal.

Features: through wireless to wireless, 1:1 Copy a wireless network and amplify the signal to expand the coverage.
Applicable scenario: expand the network to achieve signal coverage within a certain range"


AP mode: the AP mode is special. In general, AP hotspot devices only have this function. At the same time, AP devices do not have bridging and routing modes, but support relay functions. The difference between relay and AP hotspot is also very simple. The relay mode is actually 1:1 to copy a wireless network without cable connection, and both routers and AP devices support this mode; AP mode uses network cables to Expand WiFi signals, but it is not responsible for managing the network itself. It is equivalent to a switch with wireless function, which converts wired signals into wireless signals, other functions need to be implemented by routers (assigning IP addresses, managing networks, etc.).
Features: The network cable is converted into a wireless network without management and routing functions.
Applicable scenario: covers the dead corner of the signal. The function is similar to that of the relay, but the AP device does not need to be configured and is plug-and-play.

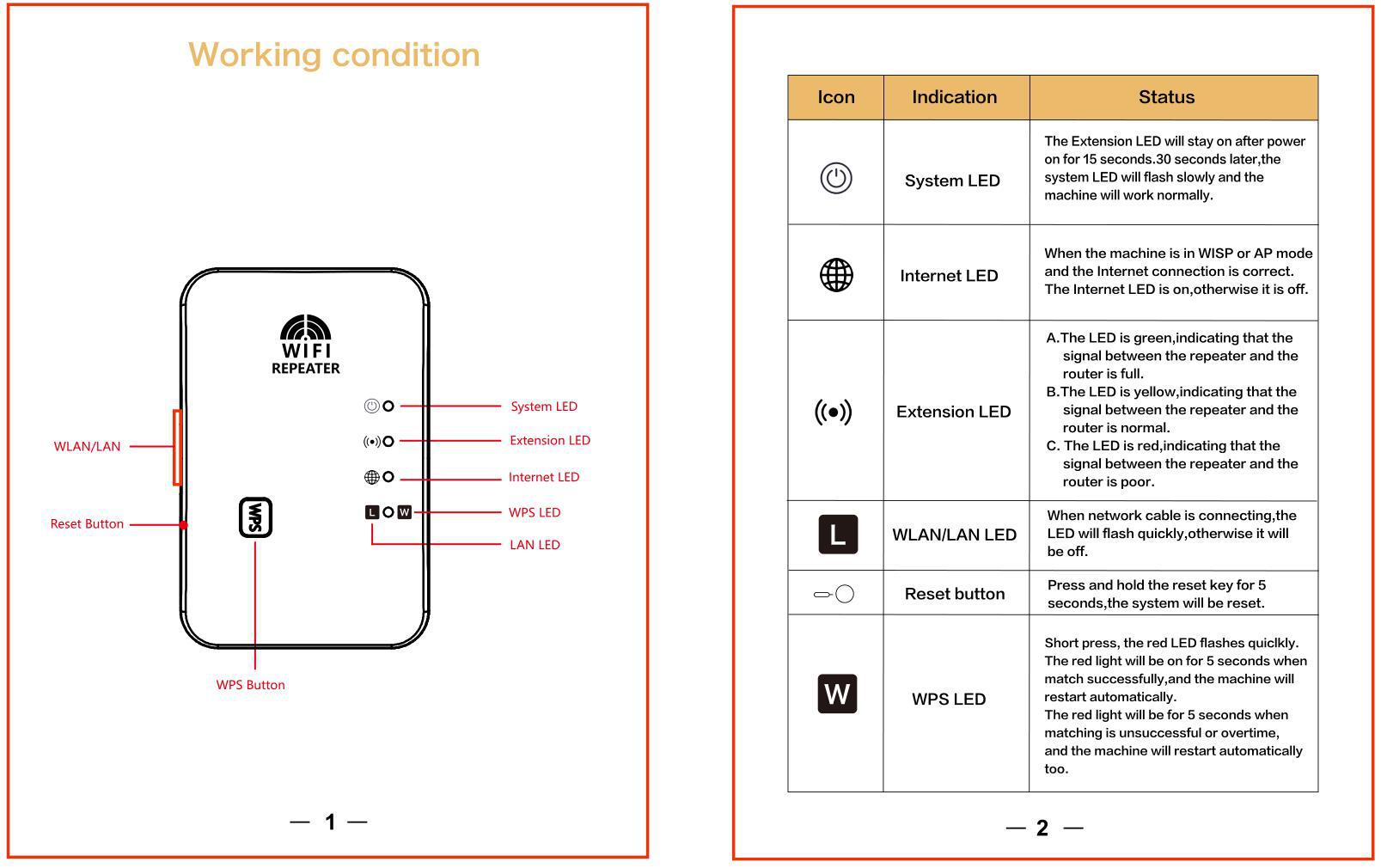

Indicator light description:

Product features:

* Master Control: QCA9533 +8m Flash

* None line standard: IEEE802.11B/G/N

* frequency:2.4GHz

* gundam transmission rate of 300Mbps

* built-in smart antenna, relay signal is more stable

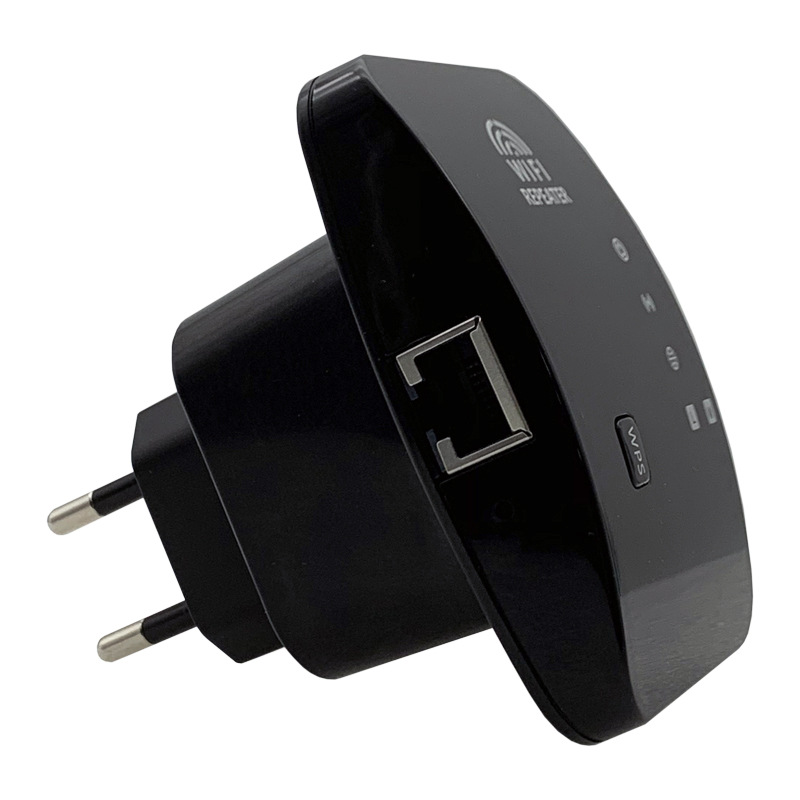

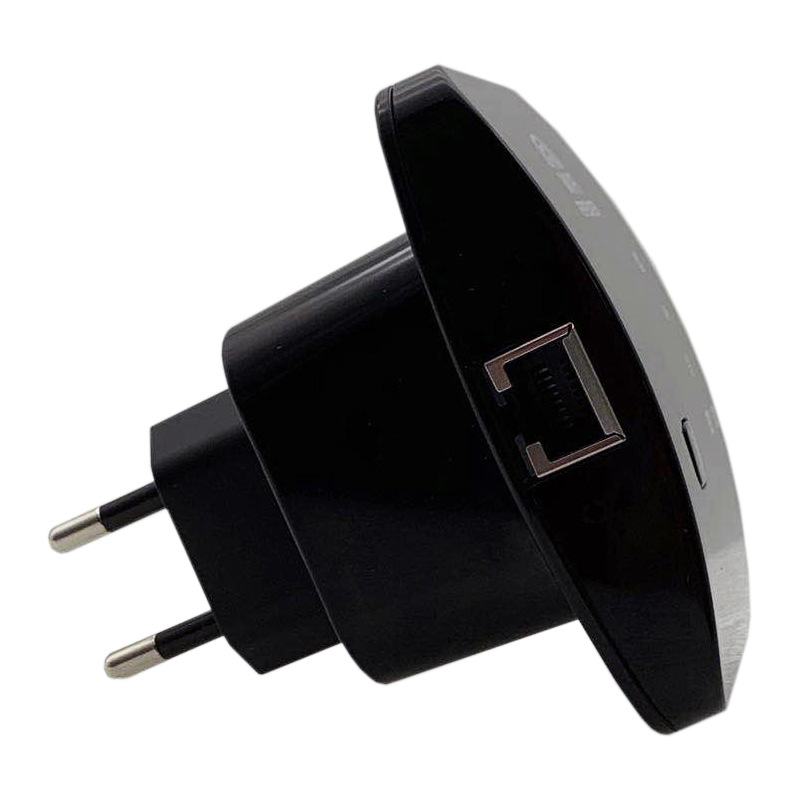

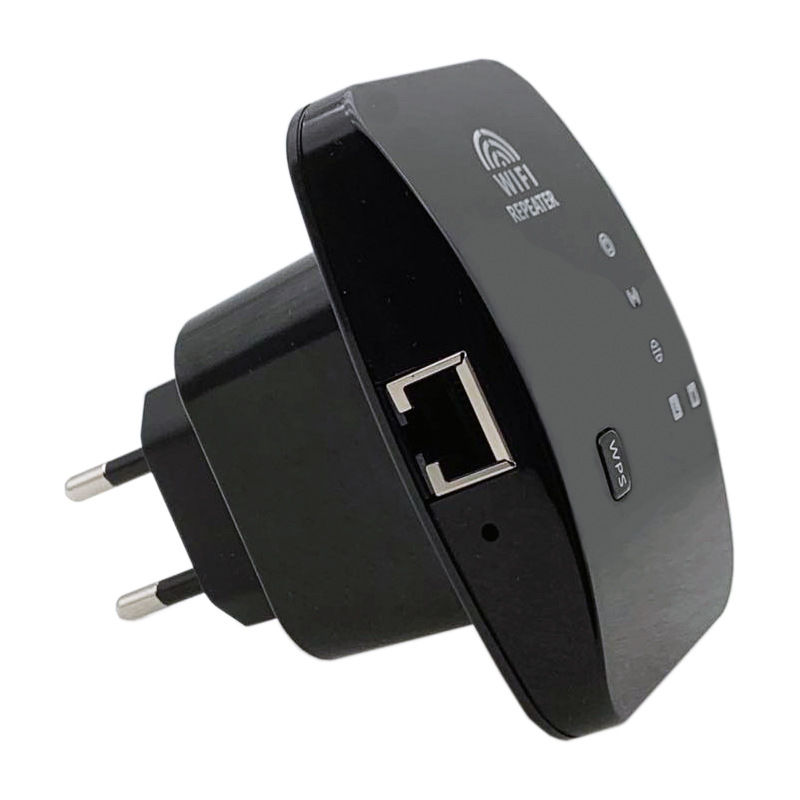

* RJ45 network port supports wired access

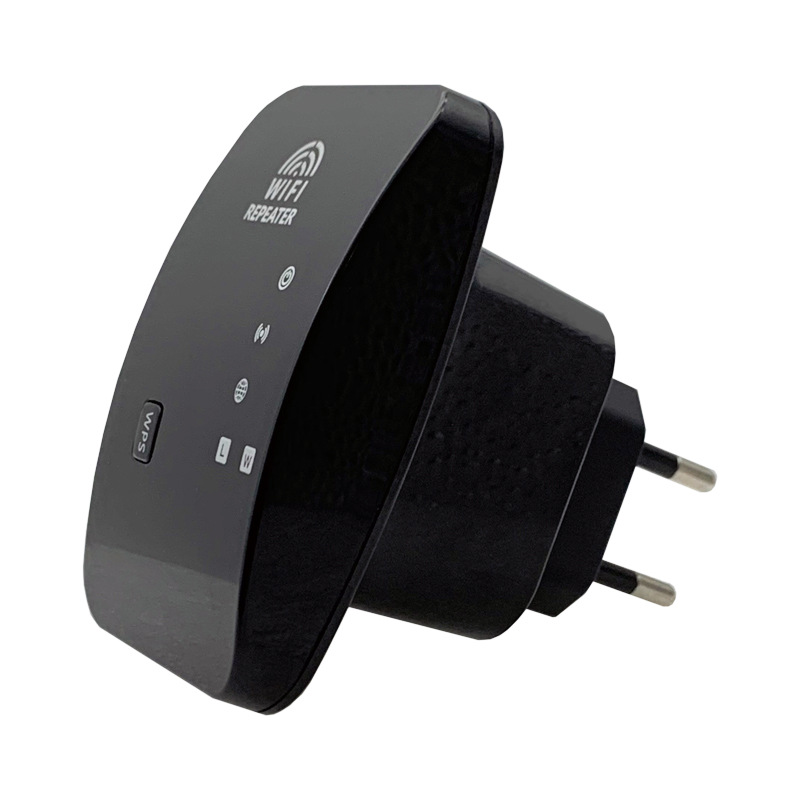

* WPS one-click encryption button

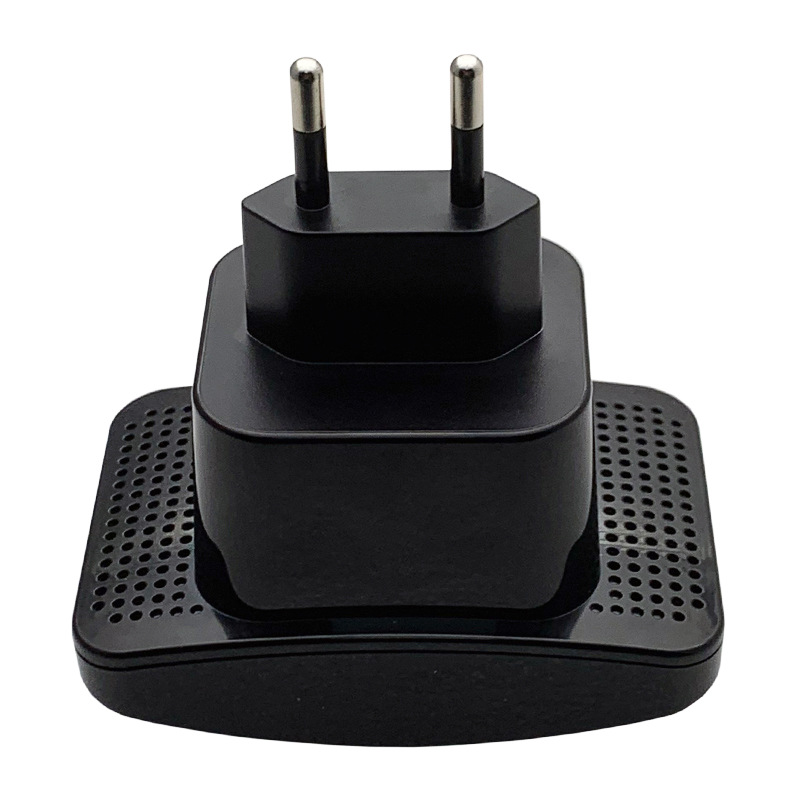

* bottom surface heat dissipation and ventilation design to ensure extender rapid cooling during work, improve service life and WiFi stability

* small size and wall-mounted design make it easy to deploy and move flexibly, and do not take up more of your space

* simple and friendly operation interface saves complicated configuration.

* relay/AP two working modes

Product specifications:

* interface: WAN/LAN port 1(1 x 10 / 100Mbps)
* input power: AC 100 - 240V,50 / 60Hz
* signal rate: 2.4GHz: up to 300Mbps (dynamic)
* coverage area: 100m
* wireless Security: Supports 64/128-bit WEP,WPA - PSK/WPA2-PSK, and 802. 1x
* standards and protocols: Wi-Fi 802.11b / g / n
* Wi-Fi supported frequency: 2.4g
* wired transmission rate: 10 / 100Mbps
