[Scope of application]]

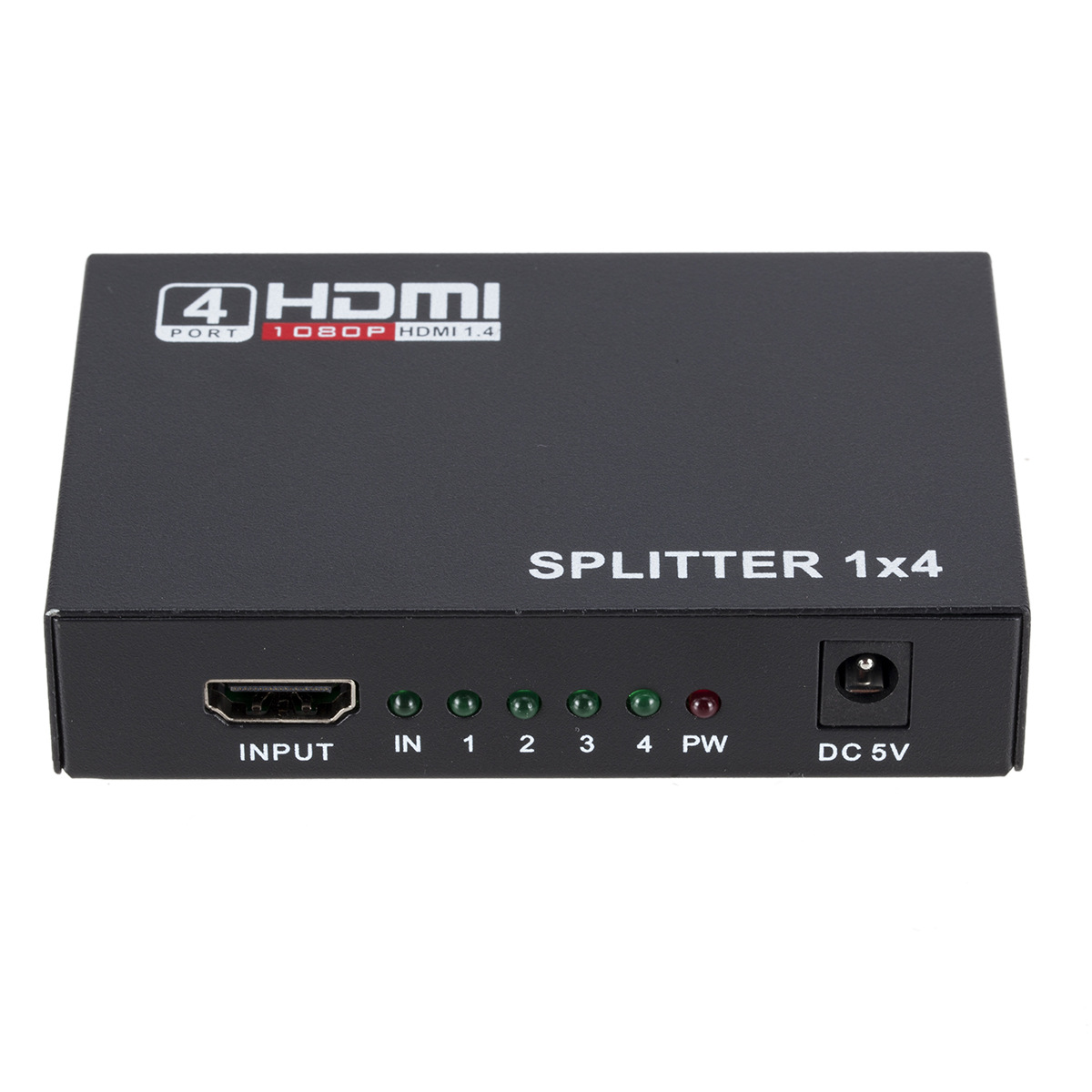

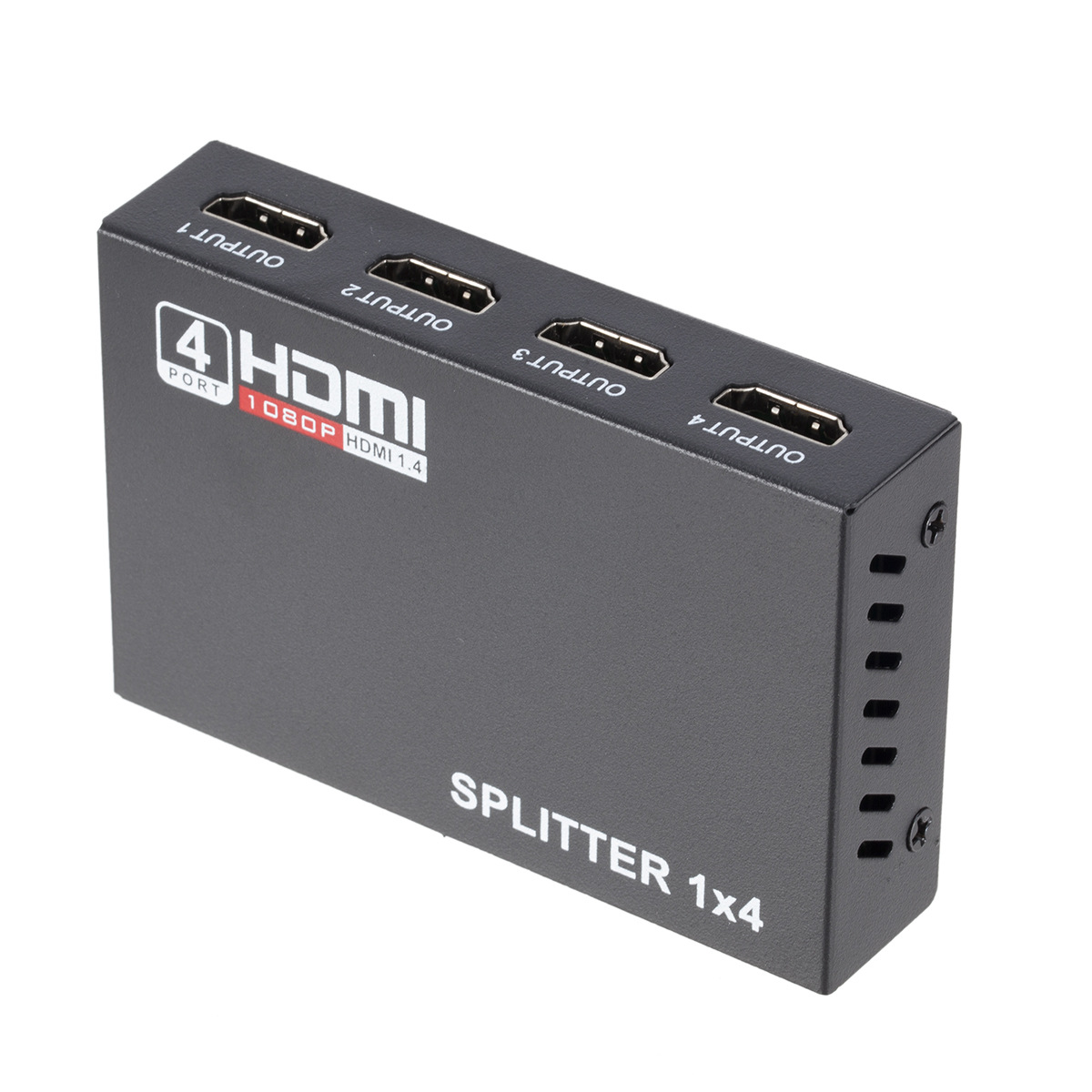

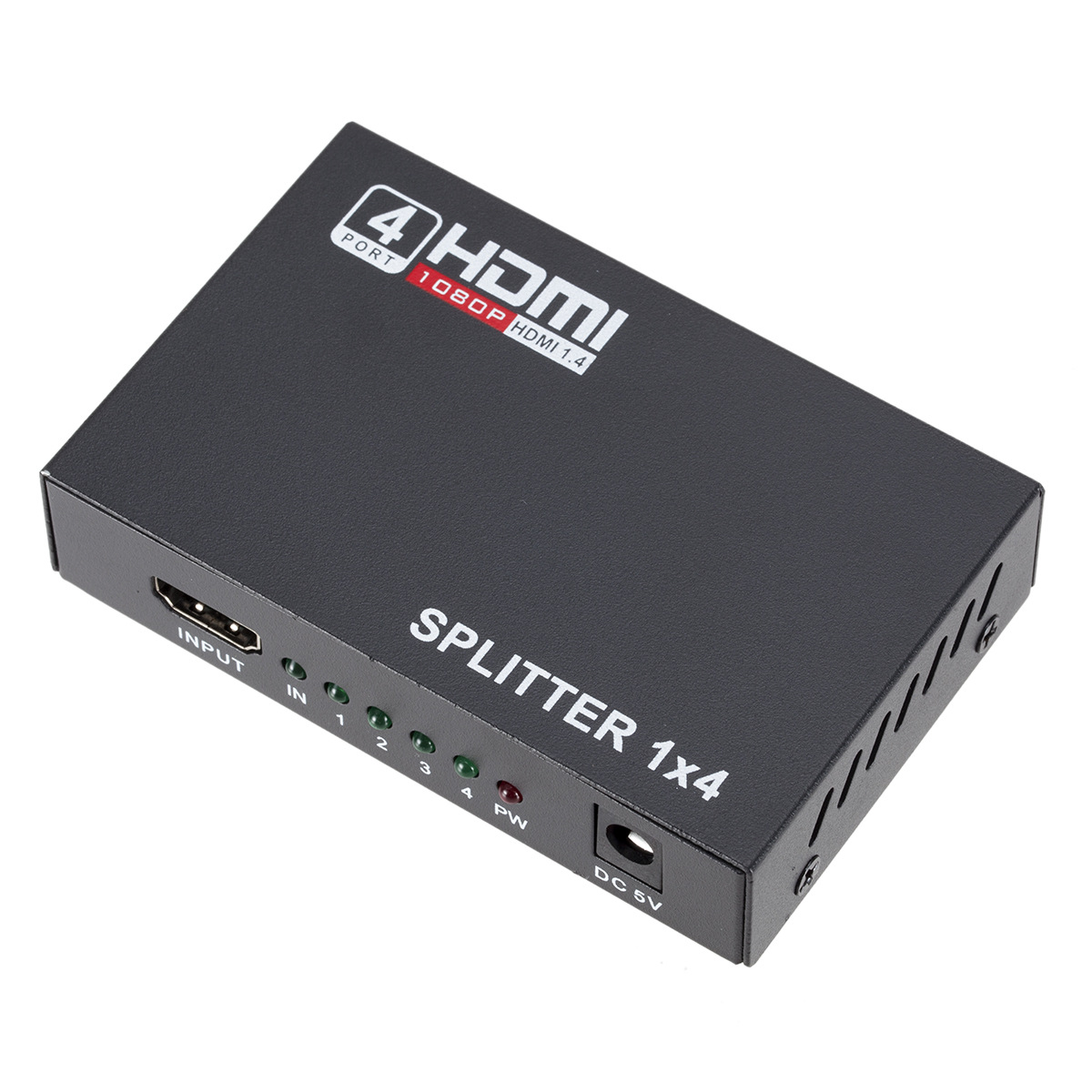

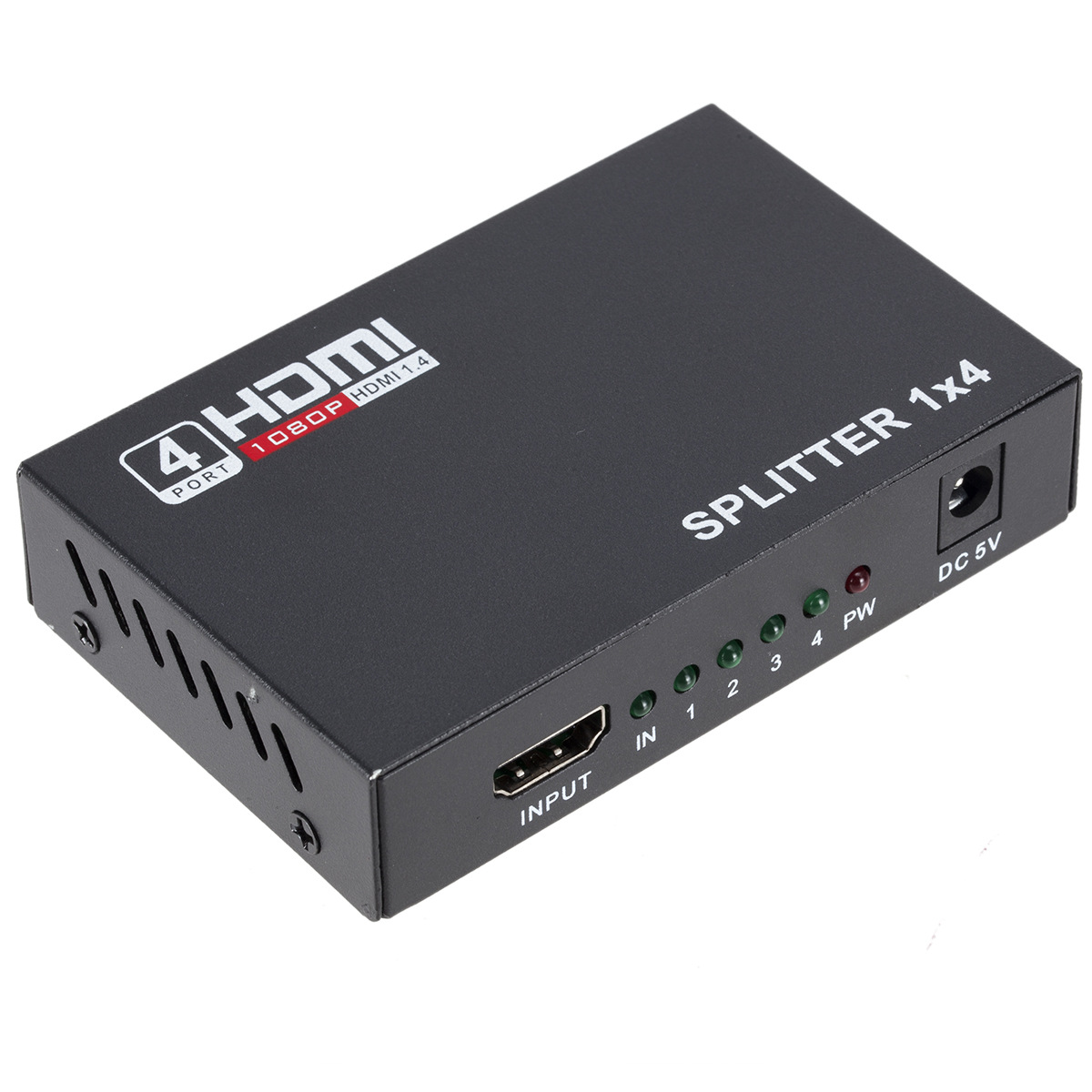

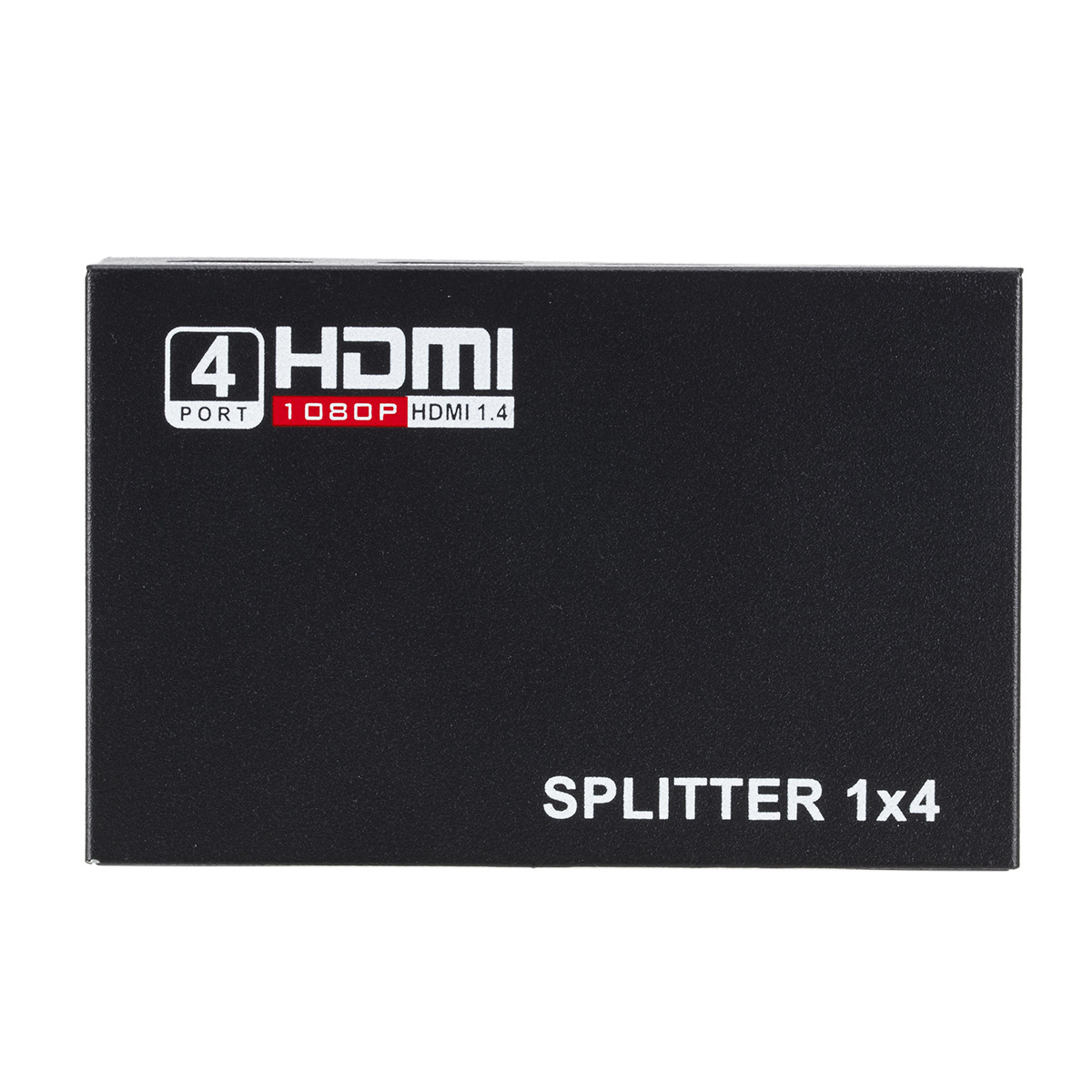

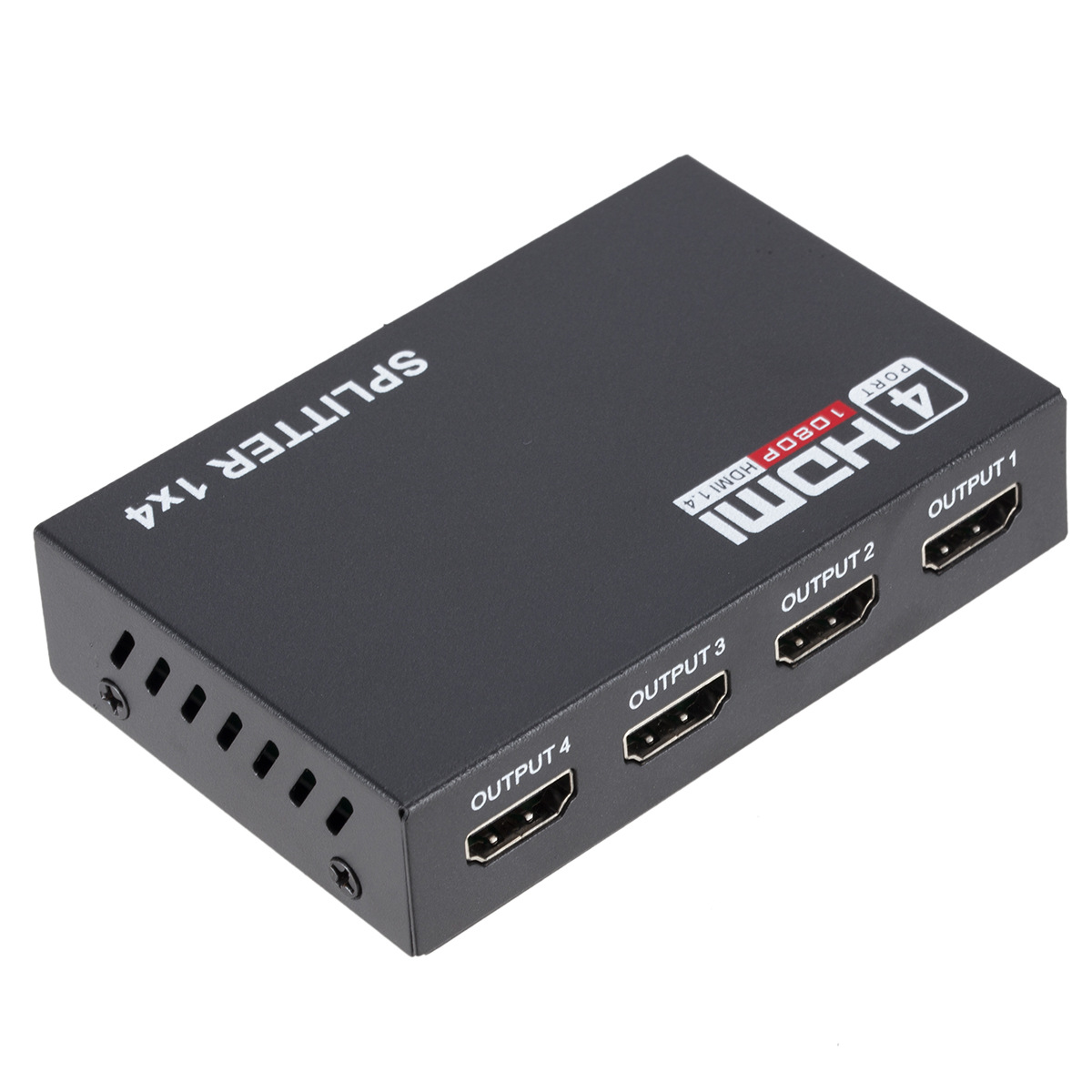

  HDMI distributor 1-in-4-out allows one HDMI output device to be distributed to 1-4 HDMI interface HD display devices. That is, HDMI signals of set-top boxes, DVD players, D-VHS projector and other HDTV devices can be distributed into 1-4 channels of consistent and synchronous HDMI signal output. Users can connect the output high-definition signals to high-definition projectors, DLP,LCD high-definition televisions and other display devices at the same time.
[Product features]]
1. It has signal buffering and Amplification capabilities and automatic identification functions.
2. Long-distance transmission (expansion) of more than 15 meters can be realized through serial connection.
3. By stacking, the number of HDMI output ports can be significantly increased.
4. Support 480p,576p,720p,1080i,1080p resolution
5. Support HD video, high quality, clear, up to 1080p HDTV resolution
6. Easily connect to multi-channel audio receiving devices
7. Fully supports HDMI 1.4 and 3D
8. Fully compatible with HDCP
9. Quick installation and easy operation
10. The vertical pixels of the output image can reach up to 1080p, which conforms to HDMI1.3 standard and is compatible with HDCP protocol.
[Technical specifications]]
1. Video amplifier bandwidth: 4.95 Gbps
2. Input video signal level: 1.2 volts p-p
3. Input DDC signal level: 5 volts p-p (TTL)
4. Single-channel connection signal range: 1080p/1920x 1200
5.HDMI connector: Class A 19-pin female connector
6. Video output: DVI-I 25 pin female connector (pure number)

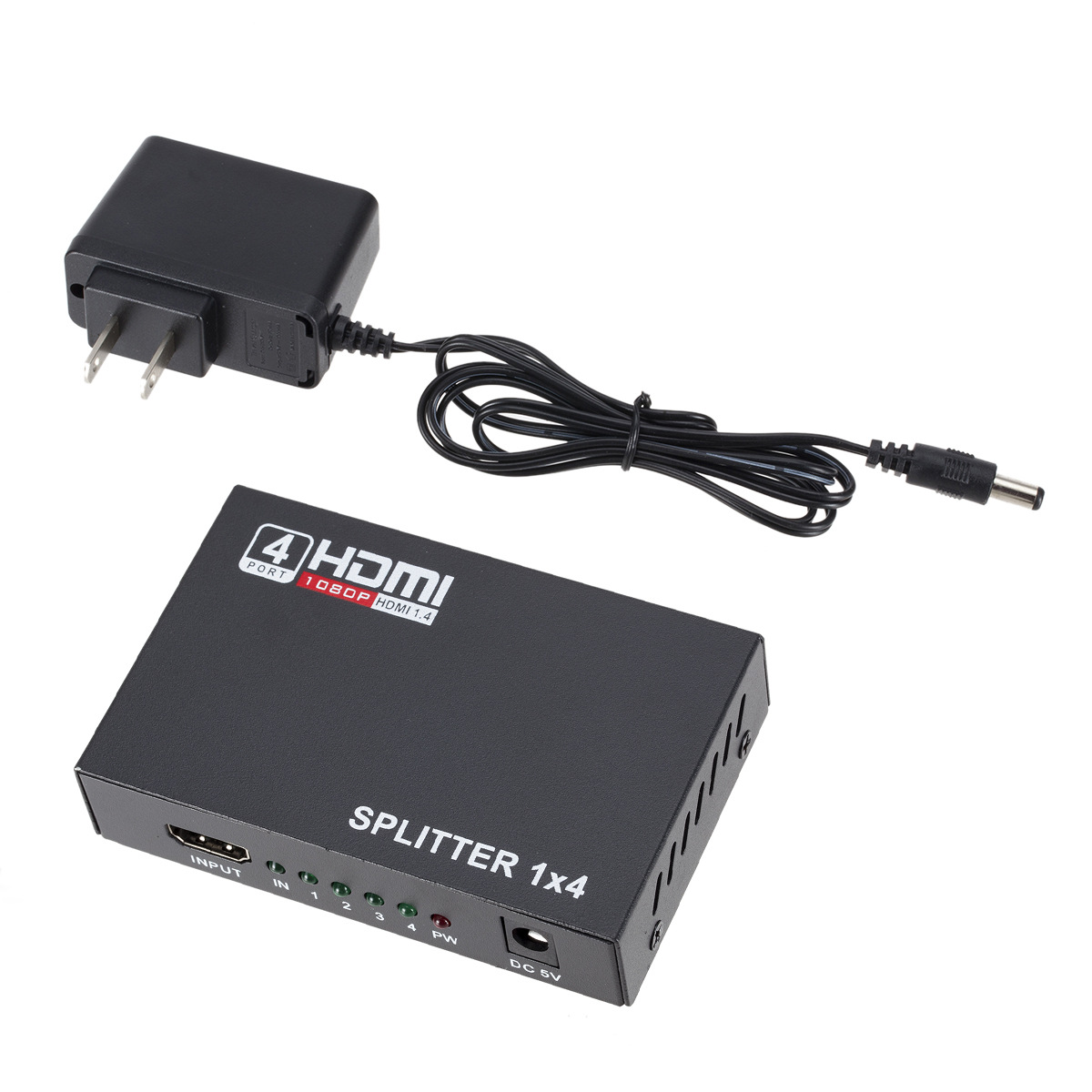

7. Power supply: 5V DC 110V-240V, 50Hz
8. Power consumption: 5 watts (maximum)
