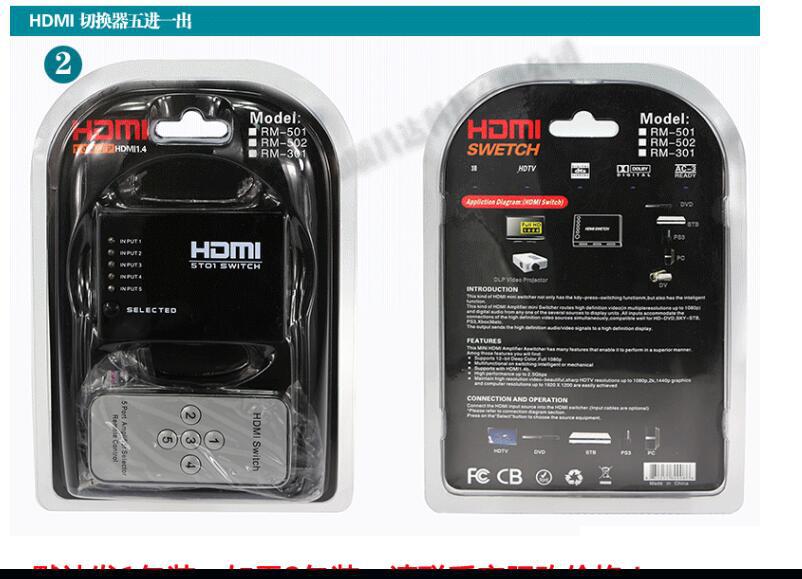

Packaging Options: Color box packaging, blister packaging. By default, the goods are shipped at will.

Product features:

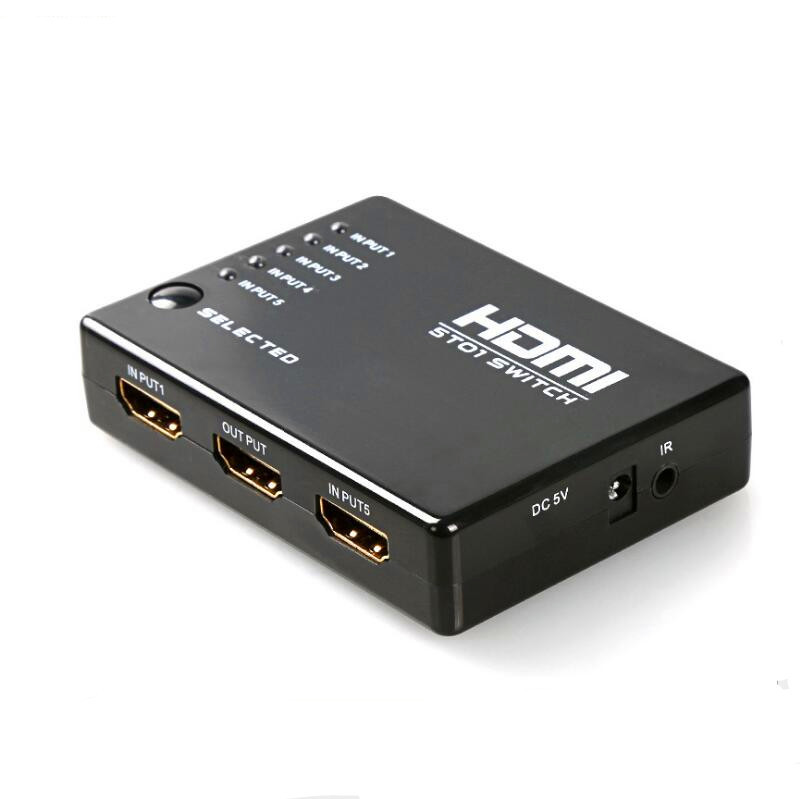

This mini five-in-one switch is a high-performance mini HDMI switch. This switcher not only has button switching function, but also has infrared remote control switching function and intelligent switching function. That is to say, as long as the power of the signal source device is switched, the converter will automatically switch. It can transmit high-definition video (Resolution 1080p) and digital audio from any signal source port to the display. The signal source ports of all input devices can match the ports of HD video at the same time, and are compatible with HD-DVD,SKY-STB,PS3,Xbox6 etc. The switch output port can transmit high-definition audio/video signals to the high-definition display.
* Input video signal: 0.5-1.0 volts p-p;
* Input DDC signal: 5 volts p-p (TTL);
* Maximum range of single-channel connection signal: 1920x 1200, 1080p;
* Output video signal: HDMI1.3b + HDCP1.0/1.1;
* Field frequency: 50/60Hz;
* Video amplification bandwidth: 2.5Gpbs/250MHz;
* Input HDMI cable maximum support Length: 15 meters
* Output HDMI cable maximum support Length: 15 meters
* Supported resolutions:
Interlaced (50/60Hz):480i,576i,1080i;
Line by line (50/60Hz):480p,576p,720p,1080p;
* Audio and video input port: 5XHDMI;
* Audio and video output port: 1XHDMI;

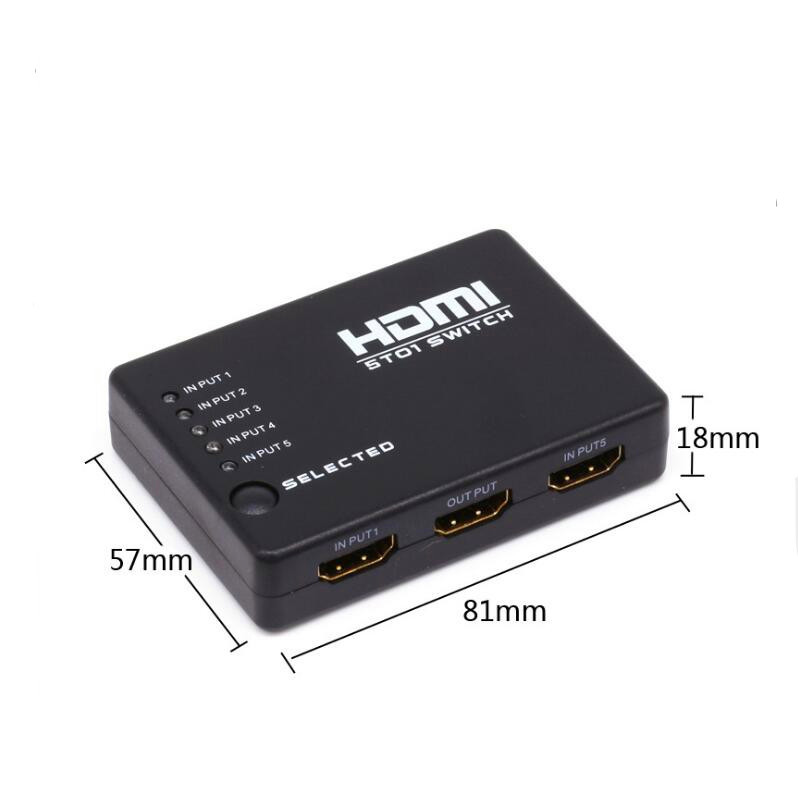

Appearance size:%;
Product Weight: 55G;
External Power Supply: 5v 2A;
* Power loss (maximum):5W;
* Multiple switching modes: intelligent, manual, remote control;
* Product Compliance: FCC CE UL certification;
* Environmental protection conforms to ROHS Directive;
Product Features
* Supports the highest video resolution up to 1080p;
* Support HDMI 250MHz clock bandwidth, 2.5Gbps data bandwidth per channel (7.5Gbps data bandwidth for all channels);
* Support HMDI 12-bit Deep Color (36-bit Deep Color for all channels);
* Supports uncompressed audio such as LPCM;
* Supports compressed audio frequency Digital signal transmission, such as DTS Digital and Dolby Digital;
* Supports HDCP devices;

Connection and operation
Connect the switch input port to the HDMI signal source through the HDMI cable.
Connect the switch output port to the HDMI display device through the HDMI cable.
Connect 5V power supply with 5x1 HDMI.
Use infrared remote control switch to switch the five-way signal source freely

Note:
Please use it correctly and maintain it properly to ensure product performance and normal work.
1. Keep away from humid, high temperature, dusty, corrosive and oxidizing gas environment to avoid damage.
2. All parts should avoid strong vibration and should not collide, knock or fall to avoid damage.
3. Do not touch the power adapter plug of the machine with wet hands
4. When unplugging the adapter plug from the power socket, please hold the plug and do not pull the power cord.
5. Please turn off the power when the machine is not in use (please unplug the power adapter plug when it is not in use for a long time)
6. Do not open the machine cover and do not touch any devices in the machine.
7. The power adapter provided by the manufacturer or approved by the manufacturer must be used.
Before power on, carefully check whether the connecting line is normal, and ensure that all interfaces are connected normally. Common fault judgment and handling methods are as follows:
Causes and Solutions of serial number failure
1 No Power 1. Check whether the power plug is correctly inserted into the power socket.
2. Check whether the power supply is on.
2 No image 1. Confirm that the TV is turned on and connected to this machine.
2. Whether the input signal source is turned on and connected well.
3. Check the connection status of the system.
4. Check whether the connecting line is in good condition.
5. Wire quality (HDMI wire requirements conform to HDMI 1.4 and 1.3 standards).
3 Image Blur 1. Reconnect the connection port to prevent poor contact of the socket interface
2. Wire quality (HDMI wire requirements comply with HDMI1.4 and 1.3 standards
