Product Name:

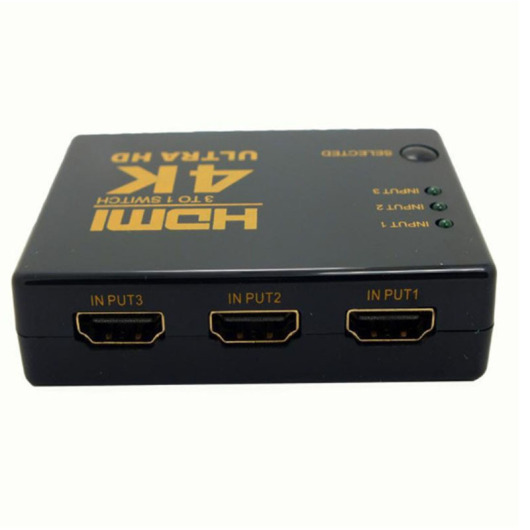

  hdmi switcher three-input and one-output 4K * 2KHDMI three-input and one-output three switcher

  Features:

1. Support HDMI 1.4 3D function. Fully supports 1080p and 12-bit pixels.
2. Support video signal amplification: 2.5Gbps

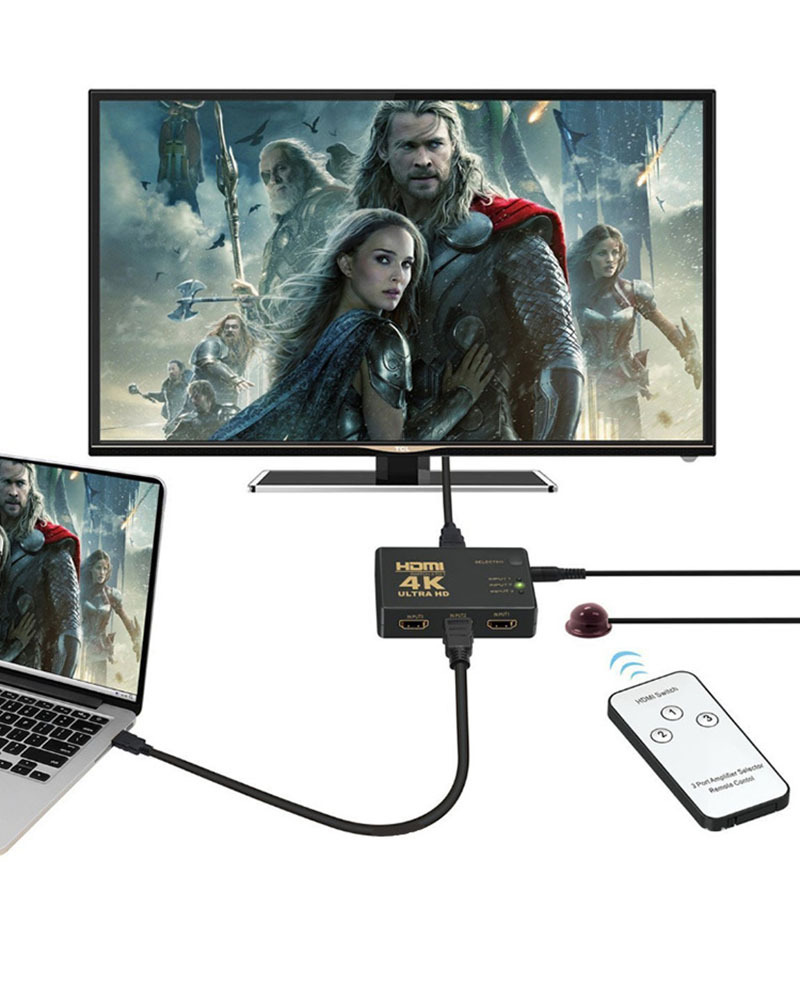

3. Manually switch remote control switch
4. Supports 25 m long distance transmission at both ends (power supply required)
5. Compatible with HDCP devices
6. Support high-definition video, high picture quality, clear picture
Intelligent features:

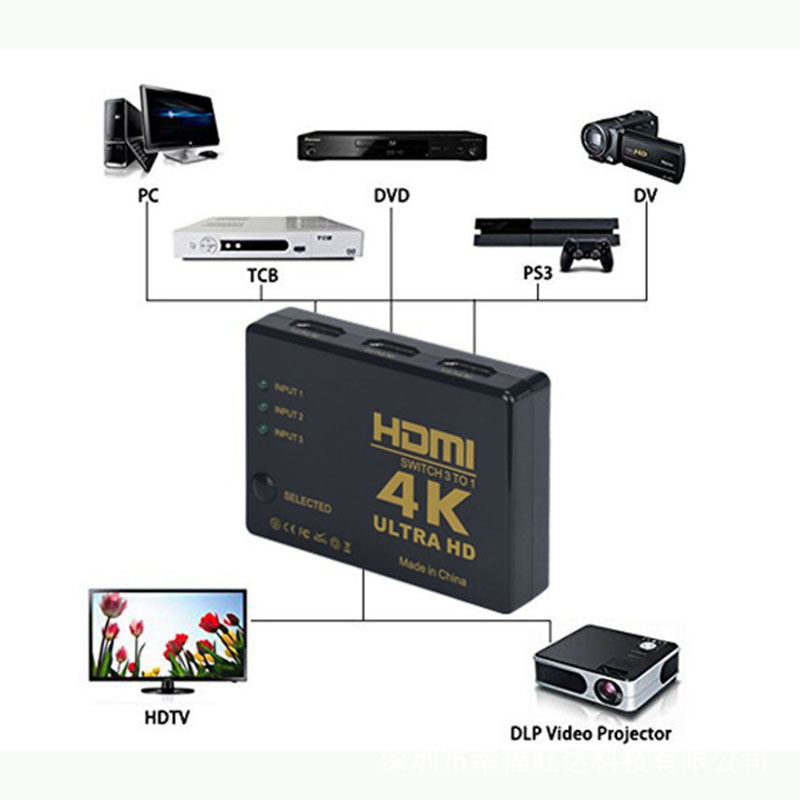

1. When the switch is powered on, it will automatically select the source device with the power on. The selected priority is 1-2-3
2. When you enter an open source device or a source device into a switch, it automatically selects the source device.
3. When you turn off the power of the source device or pull out the source device from the switch, it will automatically select whether the next source is the source device. The selected priority is: 1-2-3
Description:
1. When the source device is in standby state, its 5V power supply is cut off, otherwise the switch cannot realize intelligent function.
2. When the HDMI cable is inserted or pulled out, the switch is completely intelligent.
[Package content]]
HDMI distributor 1
1 remote control
Infrared receiver 1

[Technical indicators]]
1. Signal input/output
Input video signal: 0.5-1.0V p-p
Input DDC signal: 5V p-p(TTL)
Single Connection signal wide range: 1920x 1200,1080p
Output video signal: HDMI1.3b 3D + HDCP1.0 / 1.1
2. Supports video formats
VGA:640x480,800x600,1024x768,1920x1200
DTV / HDTV:480i / 576i / 480p / 576p / 720p / 1080i / 1080P
3. Digital signal input/output
4. Working frequency
Up to 250MHz
Field frequency 60Hz
Video amplification bandwidth 2.5Gpbs / 250MHz
HD support (HDTV)
Interlaced scan (50 and 60Hz)480i,576i,1080i
Progressive scan (50 and 60Hz)480p,576p,720p,1080p
5. Product size
Size (length-width-height) 81MM * 58MM * 18MM
Weight (net weight) 55g

Features:
1, support for HDMI 1.4 version of 3D features. Full support for 1080p, support for 12-bit pixels.
2, support for video signal amplification up to: 2.5Gbps
3, manual switch remote control switch
4, support both ends of the 25 m long-distance transmission (to be equipped with power supply)
5, compatible with HDCP equipment
6, support for high-definition video, high quality and clear picture
Smart features:
1, when the switch is powered on, it will automatically select the source device that the power is on. The selected priority is 1-2-3
2, when you open a source device or the source device into the switch, it will automatically select the source device.
3, when you turn off the power of a source device or pull the source device from the switch, it will automatically select the next source is the source device is turned on, the selected priority is: 1-2-3
Description:
1, when the source device is in standby, its 5V power supply must be cut off, otherwise the switch can not realize the intelligent function.
2, when inserting or pulling out the HDMI cable, the switch is completely intelligent.

【Package Contents 】
HDMI splitter 1
1 remote control
IR infrared receiver 1

【Technical Specifications 】
1, signal input / output
Input video signal: 0.5-1.0 volts p-p
Input DDC signal: 5 volts p-p (TTL)
Single connection signal maximum range: 1920X1200, 1080P
Output video signal: HDMI1.3b 3D + HDCP1.0 / 1.1
2, support for video formats
VGA: 640x480, 800x600, 1024x768, 1920x1200
DTV / HDTV: 480i / 576i / 480p / 576p / 720p / 1080i / 1080P
3, digital signal input / output
4, operating frequency
Frequency up to250MHz
Field frequency 60Hz
Video amplification bandwidth 2.5Gpbs / 250MHz
HD Support (HDTV)
Interlaced (50 & 60Hz) 480i, 576i, 1080i
Progressive scan (50 & 60Hz) 480p, 576p, 720p, 1080p
5, the product size
Size (length - width - height) 81MM * 58MM * 18MM
Weight (net weight) 55g
