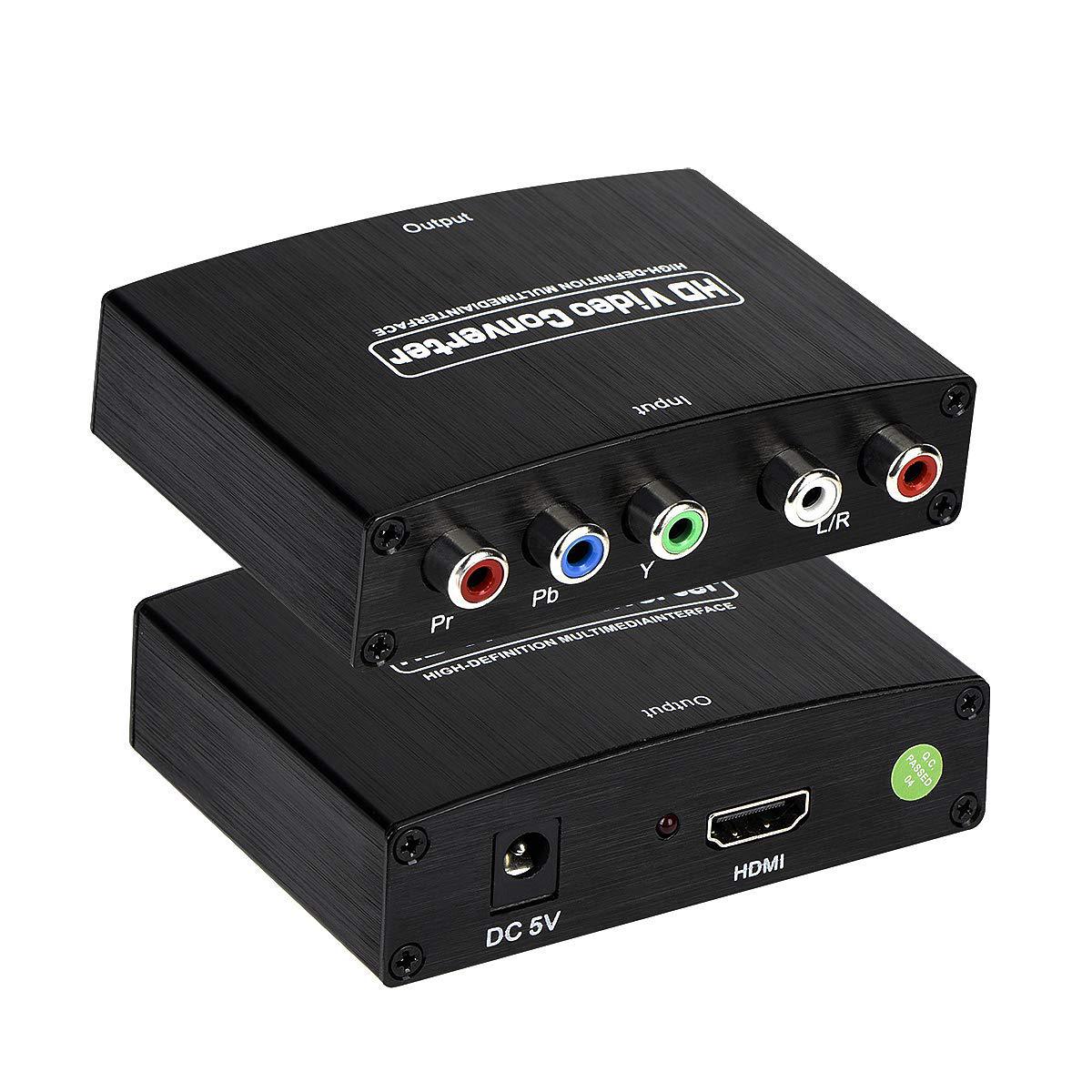

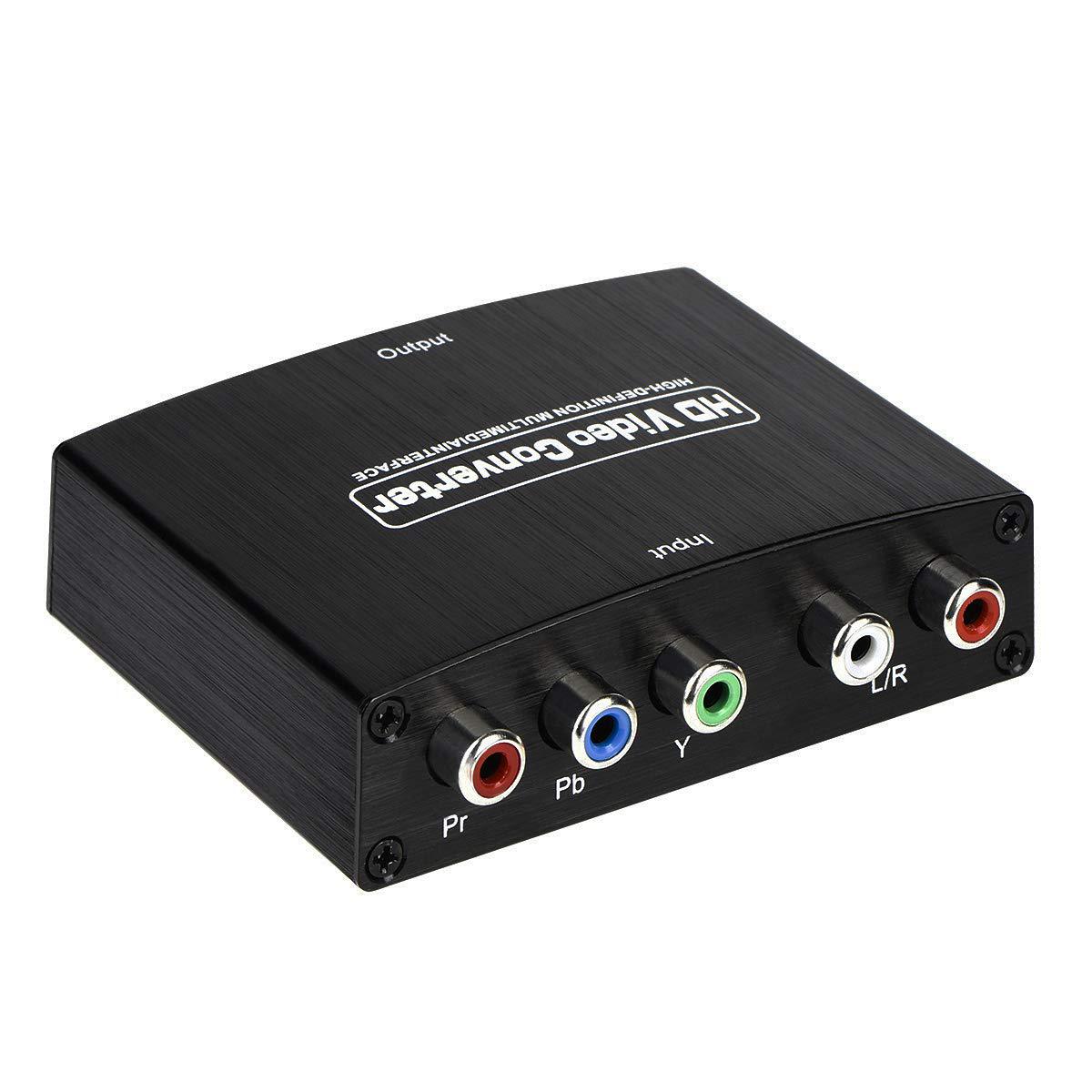

YPBPR to hdmi converter color difference to hdmi ypbpr to hdmi RGB to hdmi converter
Product Description

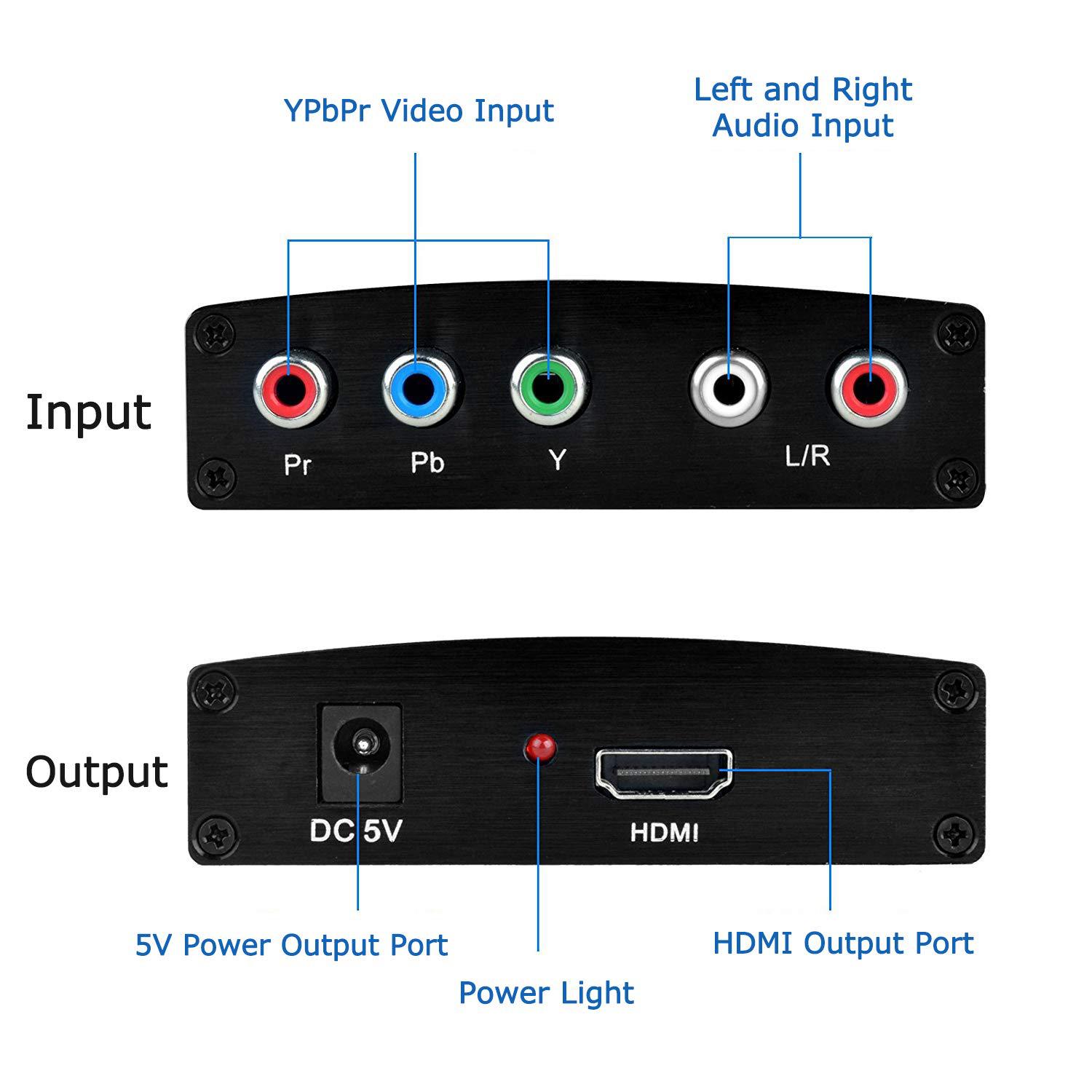

It converts YPbPr (color difference) and left and right channels into HDMI output, supports full HD 1080p resolution, and allows PC
Users can display their images not only on the PC display, but also on the TV. The conversion is with R / L audio. Number provided by converter
Entertainment centers, HDTV retail and display venues, HDTV, set-top boxes, DVD and projector factories, noise space and safety issues, data
Solutions for Heart control, information distribution, conference room demonstration, school and enterprise training environment.
Product Features
This series of HDMI converters have many functions, making them perform in a superior way. Among these functions, you will find:
1. Easy to use: install in a few seconds without setting.
2. It can convert the complete YPbPr + L/R audio to HDMI output.
3. Support HDCP1.2
4. Each channel supports 165MHz/1.65Gbps (6.75Gbps all channels) bandwidth HDMI output.
5. Support real analog video output up to UXGA and 1080p,10-bit DAC
6. LED indicating signal and power mode.
7. Power supply (5V 1A)
Product Accessories
Color difference to HDMI converter --------------- 1 set
DC 5V power adapter ----------------- 1
User Manual ------------------------ 1 copy
Product technical parameters
|
Signal Inputs/Output |
|
|
Input Video Signal |
0.5-1.0 volts p-p |
|
Input DDC Signal |
5 volts p-p (TTL) |
|
MaximumSingleLinkRange |
1600x 1200, 1080p |
|
Output Video |
HDMI + HDCP1.0/1.1 |
|
YPbPr |
640x 480 60Hz 72Hz 75Hz 800x600 60Hz 72Hz 75Hz 1024x 768 60Hz 70Hz 75Hz 1280x 1024 60Hz 1600x 1200 60Hz |
|
DTV/HDTV |
480i/576i/480p/576p/720p/1080i/1080p |
|
Operating Frequency |
|
|
Frequency |
Up to165MHz |
|
Video Amplifier Bandwidth |
1.65Gpbs/165MHz |
|
Resolutions(HDTV) |
|
|
Interlaced(50&60Hz) |
480i,576i,1080i |
|
Progressive(50&60Hz) |
480p,576p,720p,1080p |
|
Mechanical |
|
|
Size(LxWxH) |
... |
|
Weight(Net) |
0.68Kg |
|
Warranty |
|
|
Limited Warranty |
1 Year Parts and Labor |
|
Environmental |
|
|
Operating Temperature |
0 to +70℃ |
|
Operating Humidity |
10% to 85 % RH (no condensation) |
|
Storage Temperature |
-10 to +80℃ |
|
Storage Humidity |
5% to 95 % RH (no condensation) |
|
Power Requirement |
|
|
External Power Supply |
DC 5V 1A |
|
Regulatory Approvals |
|
|
Converter Unit |
CE,FCC,ROHS |
|
Power Supply |
CE,FCC,PSE,TK,UL |
|
Accessories Adapter |
|
|
AC Power Adapter |
US standard, UK standard and so on |
|
User Manual |
English Version
|
YPBPR + Audio R/L to HDMI converter
This is a component video (YPbPr) converter. It converts YPbPr input into HDMI output. The conversion is along with the R/L audio. It offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise space and security concerns, data center control, information distribution conference room presentation, school and corporate training environments
This HDMI converter has many features that enable it to perform in a superior manner. Among those features you will find:
1、Easy to Use: Install in seconds, no need of setting.
2、Conversion: It could convert YPbPr video and R/L audio into complete HDMI.
3、Supports highest video resolution up to 1080p
4、Supports 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth.
5、Supports 8bit per channel (24bit all channel) deep color
6,Supports uncompressed audio such as LPCM
7,Supports compressed audio such as DTS digital,dolby digital(including DTS-HD and dolby true HD)
SPECIFICATION
|
Signal inputs/output |
|
|
Input DDC signal |
5volts p-p(TTL) |
|
HDMI connector |
Type A(19pin) female |
|
Video connector |
3 RCA component |
|
Audio connector |
SPDIF |
|
Output video |
HDMI 1.2a |
|
Operating frequency |
|
|
Vertical frequency range |
50/60Hz |
|
Frequency |
1.65gbs/165MHZ |
|
Resolutions(HDTV) |
|
|
Interlaced(50&60HZ) |
480i,576i,1080i |
|
Progressive(50&60HZ) |
480p, 576p, 720p, 1080p |
|
mechnaical |
|
|
Size(L-W-H) |
88m W x 25.5mm H x 68mm D |
|
Weight for shipping |
0.12kgs |
|
Warranty |
|
|
Limited warranty |
1 year parts and labor |
|
Environmental |
|
|
Operating temperature |
0℃to +70℃ |
|
Operating humidity |
10% to 85% RH(no condensation) |
|
Storage temperature |
-10℃to +80℃ |
|
Storage humidity |
5% to 90% RH(no condensation) |
|
Power requirement |
|
|
External power supply |
5V DC@2A |
|
Power consumption(max) |
5W |
|
Reguory approvals |
|
|
Converter unit |
FCC,UE,UL |
|
Power supply |
UL CE,FCC |
|
Accessores adapter |
|
|
AC power adapter |
Us standard ,uk standard and so on |
|
User manual |
English version |
|
|
|
