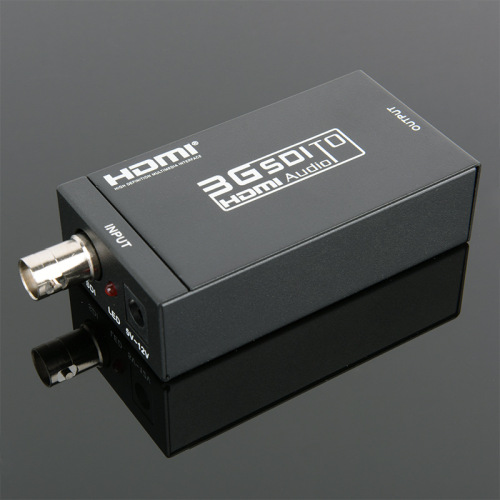

The MINI SDI to HDMI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on HDMI/SDI displays
while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss.
professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you
ability to display your work on HDMI displays thanks to the built in HDMI converter

Features:
Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s
Supports SMPTE 425M (Level A and Level B ), SMPTE 424M, SMPTE 292M, SMPTE 259M-C
Equalized and re-clocked loop output? Integrated audio de-embedder for a maximum of 8 channel, 48 kHz audio
Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
Connect with other units to extend your signal over long distances

Specificaitons
Input Port: 1 x BNC (SDI/HD-SDI/3G-SDI)
Output Port: 1 x HDMI
SMPTE Standard: 425M Level A & B, 424M, 292M, 259M-C
SDI Transmission Rates: 2.970 Gbit/s and 2.970/1.001 Gbit/s
In/Output Resolution: 480i, 576i, 720p@50/59.94,60 , 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60
1080PsF@23.98/24/25/29.97/30
Weight: 205g
Size: 100(W) x65(D) x 25(H) mm

Package Content:
1 x MINI 3G HD SDI 1080P to HDMI Converter Adaptor (002-02040007BK /E4)
1 x AC Adaptor
1 x User manual

MINI SDI to HDMI Converter allows SD-SDI,HD-SDI, and 3G-SDI signals to be displayed on HDMI / SDI displays
At the same time, it ensures a high bit rate of 2.970 Gbit / s, providing you with fast signal transmission without causing any loss. For
Professionals this means that it is now easier to distribute and expand your 3G SDI signal and provide you
With the built-in HDMI converter, you can display your work on the HDMI display.

Features:
Working at 2.9? 6? 7? 6? 770Gbit / s,2.970 / 1.001Gbit / s,1.485Gbit / s,1.485 / 1.001Gbit / s and 270Mbits / s
Supports SMPTE 425m (Class A and Class B),SMPTE 224 m, SMPTE 292m, and SMPTE 259M-C.
Equalized and re-timed loop output, integrated audio descrambler, supports up to 8 channels, 48 kHz audio
Convert from SMPTE 425m level B to level a 1080p 50 / 59.94 / 60 4:2:2 10 bits
Connect with other devices to extend signals over a long distance

Specificaitons
Input Port: 1 x BNC(SDI / HD-SDI / 3G-SDI)
Output port: 1 x HDMI,
Smpts standard: 425m Class A and B, 424m, 292m, 259M-C
SDI transmission rate: 2.970 Gbit / s and 2.970 / 1.001 Gbit / s
Input/Output resolution: I, 576i,720p @ 50 / 59.94,60,1080i @ 50 / 59.94 / 60,1080p @ 23.98 / 24/25 / 29.97 / 30/50 / 59.94 / 60,
1080PsF@23.98/24/25/29.97/30
Weight: 205g
Size: 100 (width) x65 (depth) × 25 (height) mm

Package content:
1 MINI 3G HD SDI 1080p to HDMI converter adapter (LEDs/E4)
1 AC adapter
1 x User Manual

Manufacturer 3G SDI to hdmi converter sdi to hdmi HD video transmission connection TV broadcast level
